Photovoltaics roof-/facade fastener 1000764

EAN/GTIN: 4251786200665
WEEE: DE 96427492
Manufacturer: K2 Systems
Manufacturer no.: 1000764
Customs tariff no.: 73089059
Similar top items: Show now & compare
16,34 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Roof hook pan tile 1000764 Material stainless steel, surface protection other, suitable for sloping roof fastening, roof covering roof tile, with mounting plate, width of mounting plate 80mm, length of mounting plate 180mm, height of mounting plate 5mm, width of the hook 40mm, material thickness of hook 8mm, roof penetration necessary, screw anchoring, for fastening the K2 system parts on roofs with pan tiles. Bracket with elongated hole for SolidRail assembly with hammer head screw and M10 nut. Dimensions: Base plate: 180x80x5 mm, height under boom: 47 mm, height of boom: 55 mm, total height: 121 mm, depth of boom: 87 mm Material: stainless steel (1.4016)

More product images:

Front view K2 Systems 1000764 Photovoltaics roof-/facade fastener
Front view
View on the left K2 Systems 1000764 Photovoltaics roof-/facade fastener
View on the left
View on the right K2 Systems 1000764 Photovoltaics roof-/facade fastener
View on the right
Back view K2 Systems 1000764 Photovoltaics roof-/facade fastener
Back view
View up front K2 Systems 1000764 Photovoltaics roof-/facade fastener
View up front
View top left K2 Systems 1000764 Photovoltaics roof-/facade fastener
View top left
View top right K2 Systems 1000764 Photovoltaics roof-/facade fastener
View top right
Top rear view K2 Systems 1000764 Photovoltaics roof-/facade fastener
Top rear view

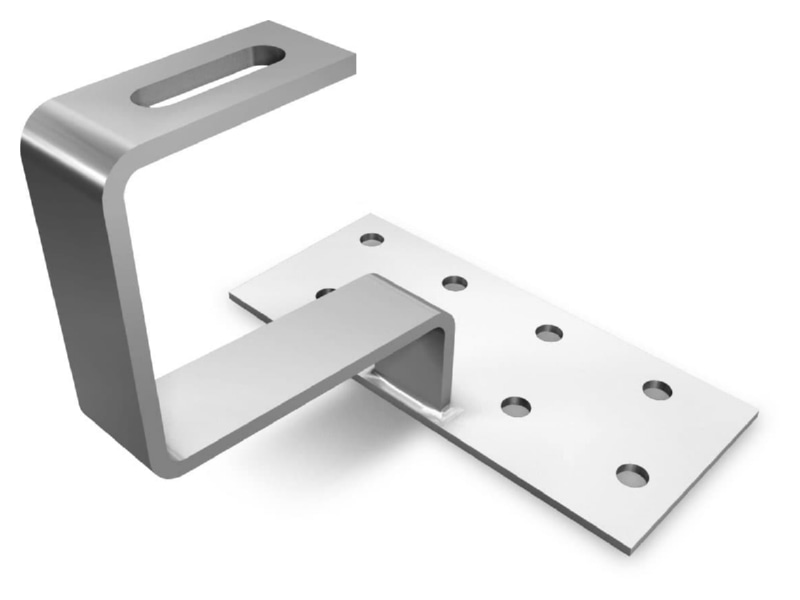

Product image K2 Systems 1000764 Photovoltaics roof  facade fastener
Product image

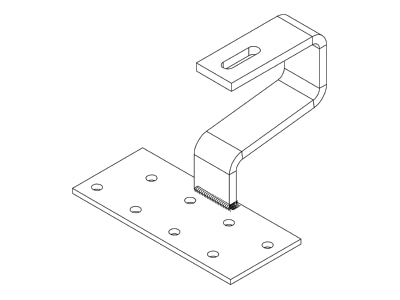

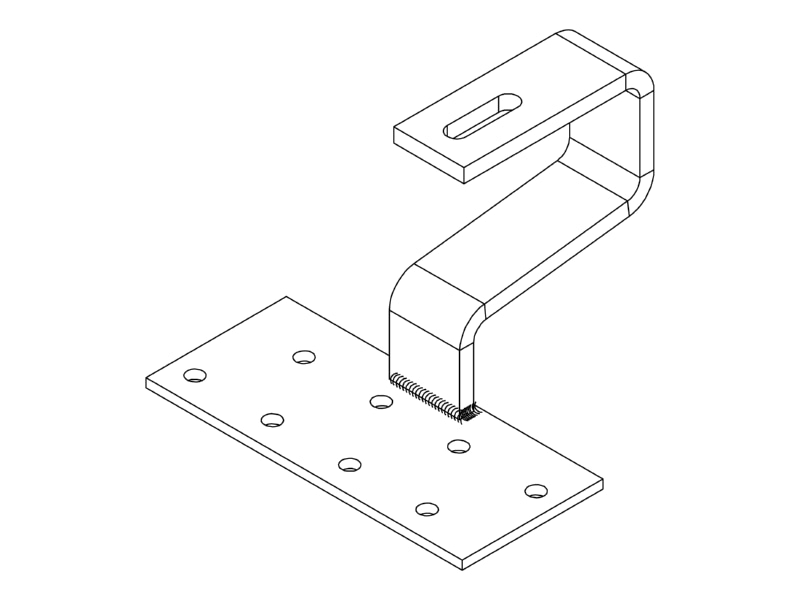

Line drawing K2 Systems 1000764 Photovoltaics roof  facade fastener
Line drawing
