Accessory for photovoltaics mounting 2002683

EAN/GTIN: 4251786210312
WEEE: DE 96427492
Manufacturer: K2 Systems
Manufacturer no.: 2002683
Customs tariff no.: 76109090
Similar top items: Show now & compare
3,05 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

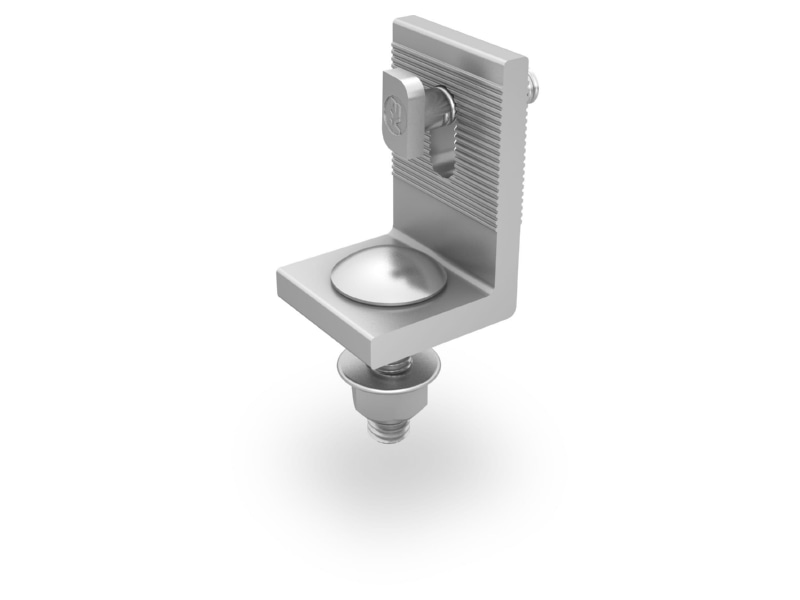

L-Adapter SingleRail Set 2002683 Version other, material aluminum, surface protection untreated, width 35mm, height 55mm, depth 36mm, with fastening material, connection set to attach the SingleRail to SolidHook roof hooks. Set consists of: 1x L-adapter SingleRail (2002652), aluminum EN AW-6063 T66 1x self-locking nut M8 (2002744), stainless steel A2 1x hammer head screw M8x20 (1002387), stainless steel A2 1x truss head screw M10x25 (1000431), stainless steel A2 1x locking nut M10 (1000042), stainless steel A2

More product images:

Front view K2 Systems 2002683 Accessory for photovoltaics mounting
Front view
View on the left K2 Systems 2002683 Accessory for photovoltaics mounting
View on the left
View on the right K2 Systems 2002683 Accessory for photovoltaics mounting
View on the right
Back view K2 Systems 2002683 Accessory for photovoltaics mounting
Back view
View up front K2 Systems 2002683 Accessory for photovoltaics mounting
View up front
View top left K2 Systems 2002683 Accessory for photovoltaics mounting
View top left
View top right K2 Systems 2002683 Accessory for photovoltaics mounting
View top right
Top rear view K2 Systems 2002683 Accessory for photovoltaics mounting
Top rear view
Product image K2 Systems 2002683 Accessory for photovoltaics mounting
Product image

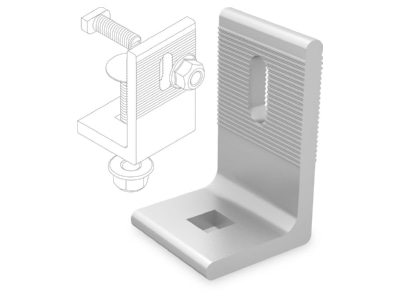

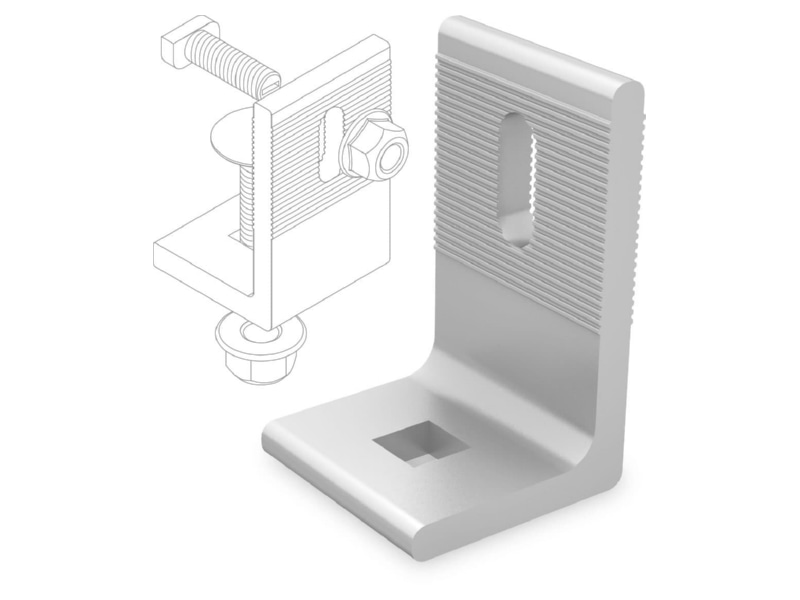

Exploded view K2 Systems 2002683 Accessory for photovoltaics mounting
Exploded view
