Transformer kilowatt-hour meter 1A B24 313-10J (M-Bus)
Source photo:
Janitza
(fig. might be different or similar)

Transformer kilowatt-hour meter 1A B24 313-10J (M-Bus)

EAN/GTIN: 4251861102938
WEEE: DE 66352645
Manufacturer: Janitza
Manufacturer no.: B24 313-10J (M-Bus)
Manufact.-SKU: 1401361
Customs tariff no.: 90283011
Similar top items: Show now & compare
318,34 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Transformer kilowatt-hour meter 1A Type of meter Electronic, Nominal current (In) 1A, Max. current (Imax) 6A, Nominal voltage (Un) N-L 230 ... 230V, Nominal voltage (Un) L-L 400 ... 400V, Frequency 50 ... 60Hz, Accuracy class B, Pole type Three conductor/four conductor, Model Measurement transformer, Energy type Effective power and blind power, Suitable for Purchase/supply, Calibrated, Approval Measuring Instruments Directive, Pulse output Electrical, Pulse type S0, Type of indication Digital, Mounting method Built-in, Width in number of modular spacings 4, Type of interface M-bus (wired), Number of positions total (counter) 7, Degree of protection (IP) IP20

More product images:

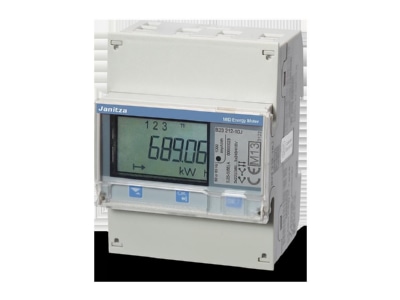

Product image 1 Janitza B24 313 10J  M Bus  Transformer kilowatt hour meter 1A
Product image 1
Product image 2 Janitza B24 313 10J  M Bus  Transformer kilowatt hour meter 1A
Product image 2
