Switching device for handicapped people NRS LS 0834 SWM
Source photo:
JUNG
(fig. might be different or similar)

Switching device for handicapped people NRS LS 0834 SWM

EAN/GTIN: 4011377320017
WEEE: DE 64244154
Manufacturer: JUNG
Manufacturer no.: NRS LS 0834 SWM
Customs tariff no.: 85318040
Similar top items: Show now & compare
280,03 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Emergency call set graphite black matt NRS LS 0834 SWM Version Complete set, color black, voltage type DC, device width 70mm, device height 70mm, consists of pull button, call module, shutdown button and power supply (screw fastening, without fastening claws) complete with 1-gang frame The JUNG emergency call system is used to call for help in disabled toilets -Investments. It complies with the safety requirements according to DIN VDE 0834. The emergency call system has a modular structure. The following four components are available together as a complete emergency call set: Pull buttonAn emergency call can be triggered in the bathroom/toilet using an easily accessible pull cord. The pull button can also be installed on the ceiling in the middle of the room so that it can be easily reached by people in need. A successful call activation is signaled by a red reassurance lamp on the button. Call moduleThe call module can, for example, be installed outside next to the toilet door or hallway door. A triggered emergency call is signaled visually by a red LED and acoustically by a buzzer, 90 dB(A). Both signals can be switched from continuous light/continuous tone to flashing light/pulsating tone. Stop buttonIn the same room in which the pull button is located, the stop button is installed next to the door. The helping staff can turn off the triggered call there. Power supply for the emergency call system with DC 24 V duty room unit, duty room terminal and call button are available separately. The duty room unit can be installed, for example, in a staff room or reception room. A green button indicates presence, a yellow button suppresses the acoustic emergency call signal from the call module for 20 seconds. The components of the JUNG emergency call system are supplemented with frames from the AS / A, CD or LS series, so that a uniform design is possible throughout the building. The frames are already included in the complete emergency call set. To expand a system, the components are also available individually.

More product images:

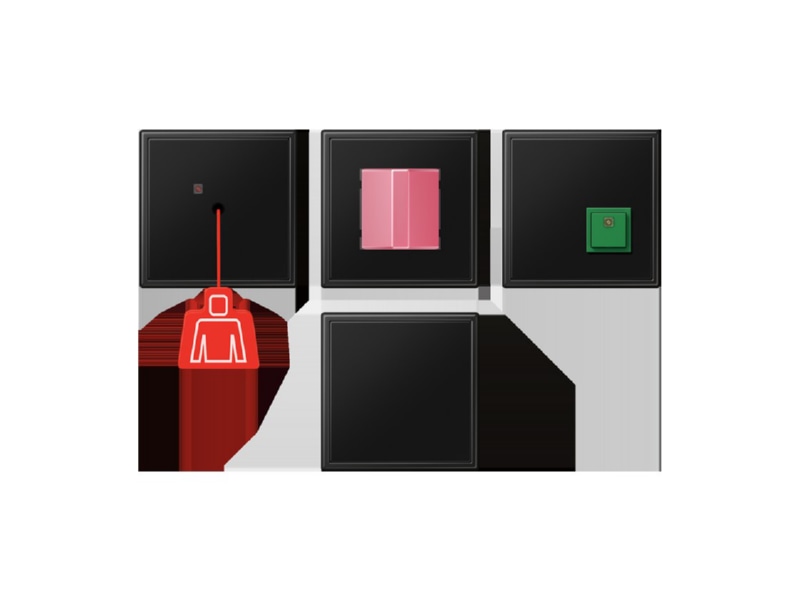

Product image Jung NRS LS 0834 SWM Switching device for handicapped people
Product image

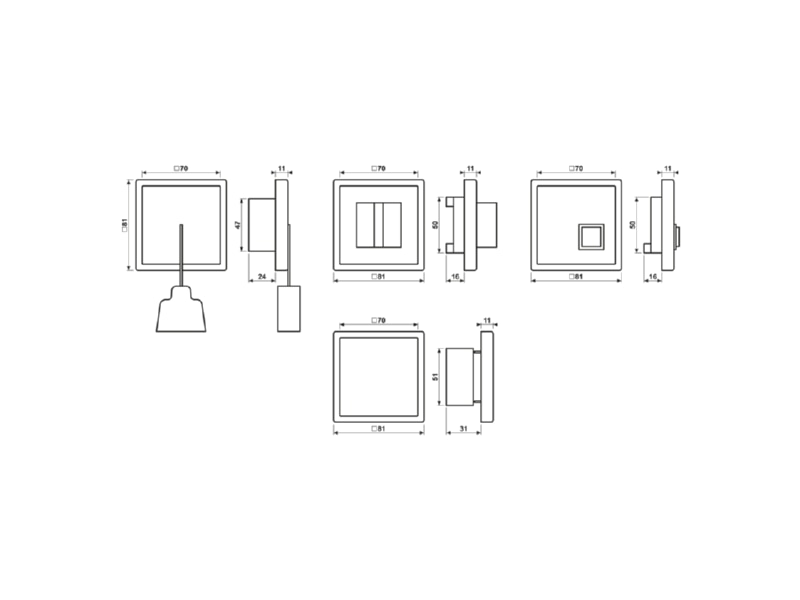

Dimensional drawing Jung NRS LS 0834 SWM Switching device for handicapped people
Dimensional drawing
