Straight Connector for protective hose PSR20-S-M20
Source photo:
Hellermann Tyton
(fig. might be different or similar)

Straight Connector for protective hose PSR20-S-M20

EAN/GTIN: 4031026410708
WEEE: DE 92457933
Manufacturer: Hellermann Tyton
Manufacturer no.: PSR20-S-M20
Manufact.-SKU: 166-40704
Customs tariff no.: 39174000
Order level:
(minimum)
10 pce
Similar top items: Show now & compare
38,10 EUR Price incl. tax. 19,00%
(for 10 pce)
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 10 pce orderable.
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Straight Connector for protective hose Nominal diameter 20mm, Nominal size in inch Other, Degree of protection (IP) IP65, Model Straight, Construction type External thread, Type of connection Snap connection, Thread connection size M20 x 1.5, Thread length 14mm, Material screw gland Polyamide (PA), Material sealing No sealing, Lowest inner diameter hose 14mm, Max. outer diameter hose 33mm, Total height 33mm, Total length 43mm, Colour Grey, Approved in combination with protective conduit UR, Operating temperature -50 ... 135°C

More product images:

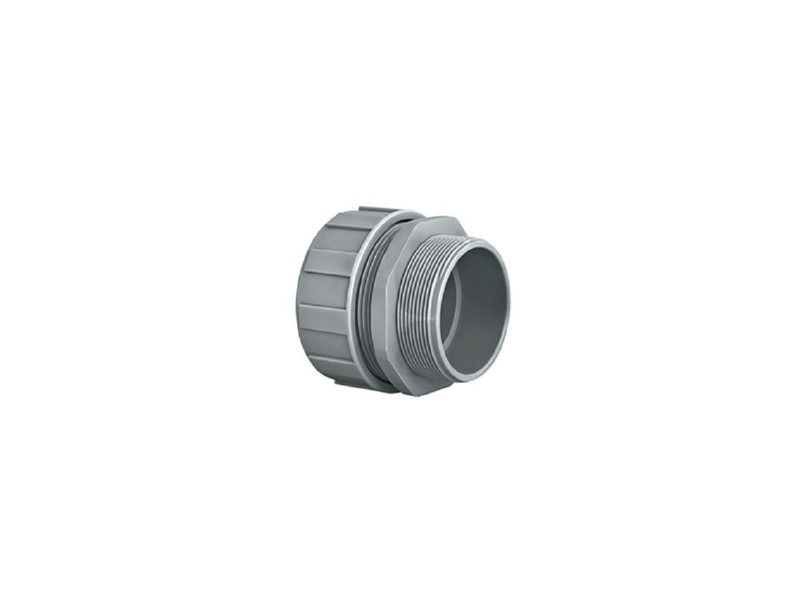

Product image Hellermann Tyton PSR20 S M20 Straight Connector for protective hose
Product image

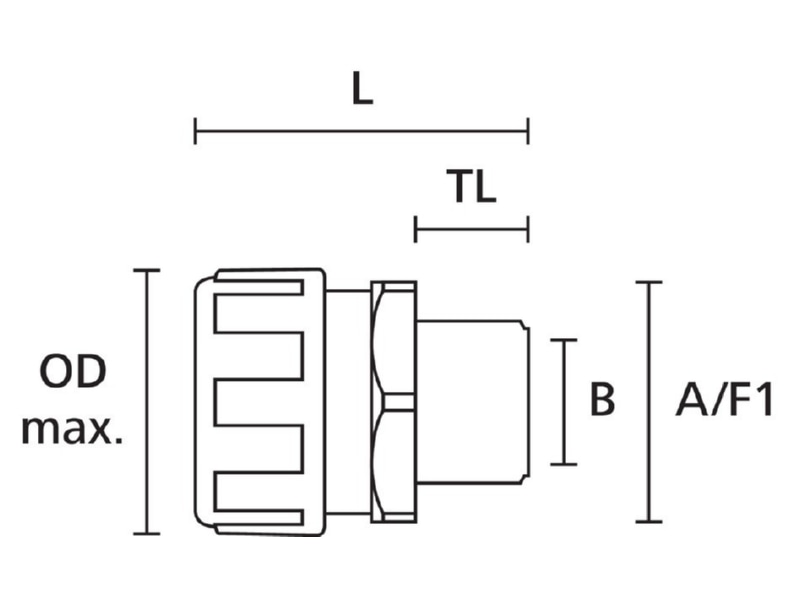

Dimensional drawing Hellermann Tyton PSR20 S M20 Straight Connector for protective hose
Dimensional drawing
