Presence detector 360° 7m MTN5570-1019
Source photo:
Elso
(fig. might be different or similar)

Presence detector 360° 7m MTN5570-1019

EAN/GTIN: 3606480467455
WEEE: DE 33842582
Manufacturer: Elso
Manufacturer no.: MTN5570-1019
Customs tariff no.: 85365080
Similar top items: Show now & compare
87,44 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Presence detector 360° 7m Model Presence detector, Sensor type Passive infrared, Networkable, Scan angle 360°, Optimum mounting height 2,5m, Staircase monitoring, Max. transmission range sideways 7m, Max. presence range 113m², Max. transmission range frontally 7m, Diameter detection range on floor 14m, Response value sensitivity adjustable, Response value luminosity adjustable, Suitable for ceiling mounting, Mounting method Other, Connection type Screwed terminal, Material Plastic, Material quality Thermoplastic, Halogen free, Surface protection Untreated, Surface finishing Glossy, Colour White, RAL-number (similar) 9010, Degree of protection (IP) IP20, Impact strength IK02, Voltage type AC, Frequency 50 ... 60Hz, Nominal voltage 230V, Min. switch-on time 10s, Max. duty cycle 30min, Switch-off delay 0s, Switching-on delay 0s, Detection angle horizontal 0 ... 360°, Response value luminosity 10 ... 1000lx, Temperature 0 ... 25°C, Number of switching zones 136, Max. starting current 10A, Width 116mm, Height 116mm, Depth 72mm, Diameter 116mm, Built-in width 60mm, Built-in depth 30mm, Built-in length 60mm, Built-in diameter 60mm, Min. depth of built-in installation box 46mm

More product images:

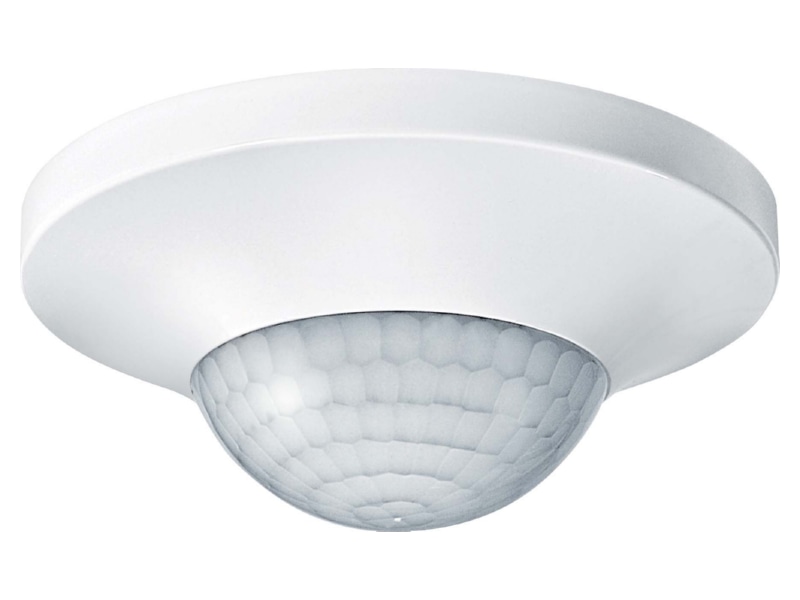

Product image 1 Elso MTN5570 1019 Presence detector 360  7m
Product image 1

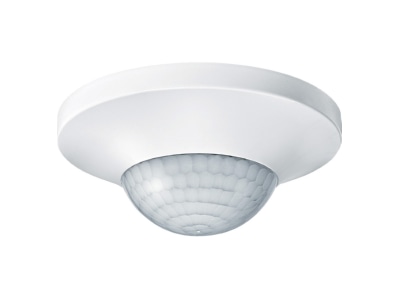

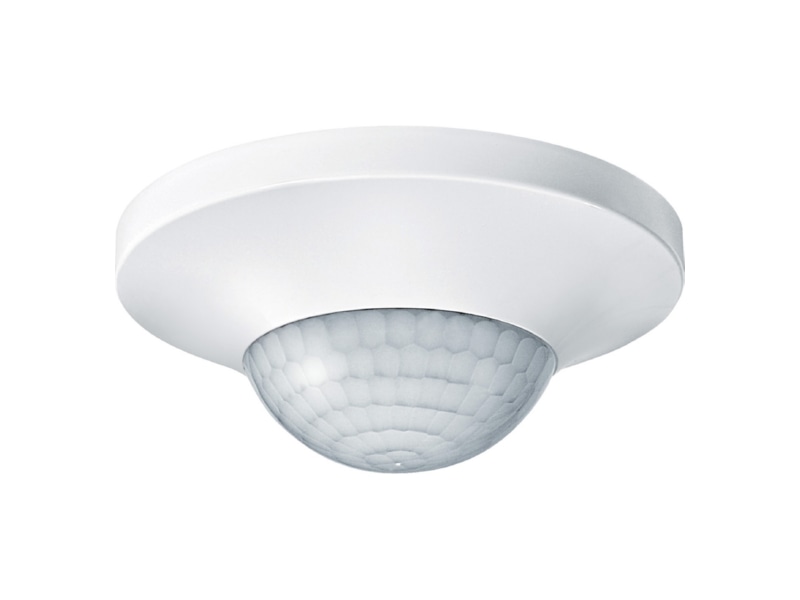

Product image 2 Elso MTN5570 1019 Presence detector 360  7m
Product image 2
