Room thermostat 557895056500
Source photo:
Eberle
(fig. might be different or similar)

Room thermostat 557895056500

EAN/GTIN: 4017254170034
WEEE: DE 59919971
Manufacturer: Eberle
Manufacturer no.: 557895056500
Customs tariff no.: 90321020
Similar top items: Show now & compare
101,09 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory

Execution other, Type of power supply 230V AC, Connection three-/four-wire, With receiver no, Measuring range 5..30 °C, External sensor no, Control characteristic PID, Suitable for heating yes, Number of outputs Heating 1, Suitable for cooling yes, Number of outputs Cooling 1, Difference value 0,1..0,5 K, Difference adjustable yes, Temperature readable yes, With noise level indicator no, Mounting Flush, With display no, Service Button, Concealed operating element no, With drinking water circuit no, Contact Style Normally open (NO), Max. Voltage of contacts 230V, Max. Contact load 2 A, IP protection) IP30, Colour white, RAL-number 9010, Height 115 mm, Width 100 mm, Depth 64 mm, Temperature controller class IV, Compatible with Apple HomeKit yes, Compatible with Google Assistant yes, Compatible with Amazon Alexa yes

More product images:

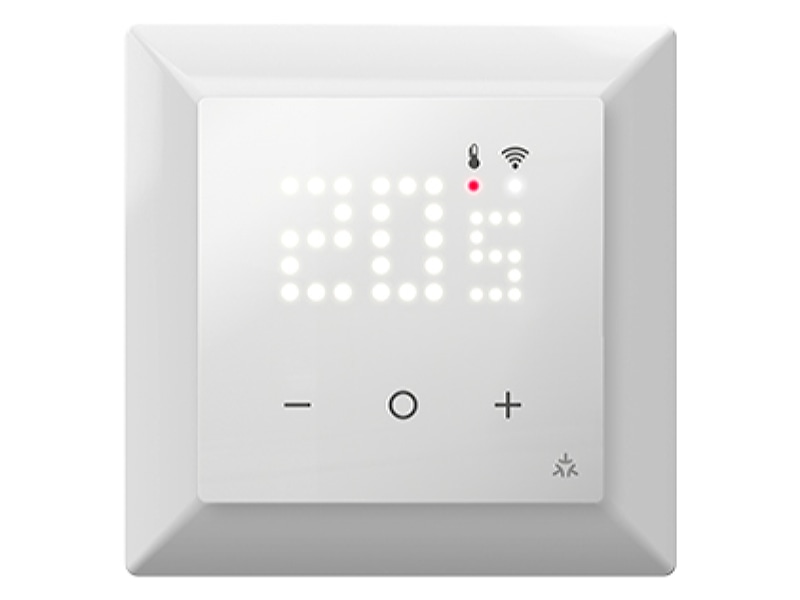

Product image Eberle 557895056500 Room thermostat
Product image

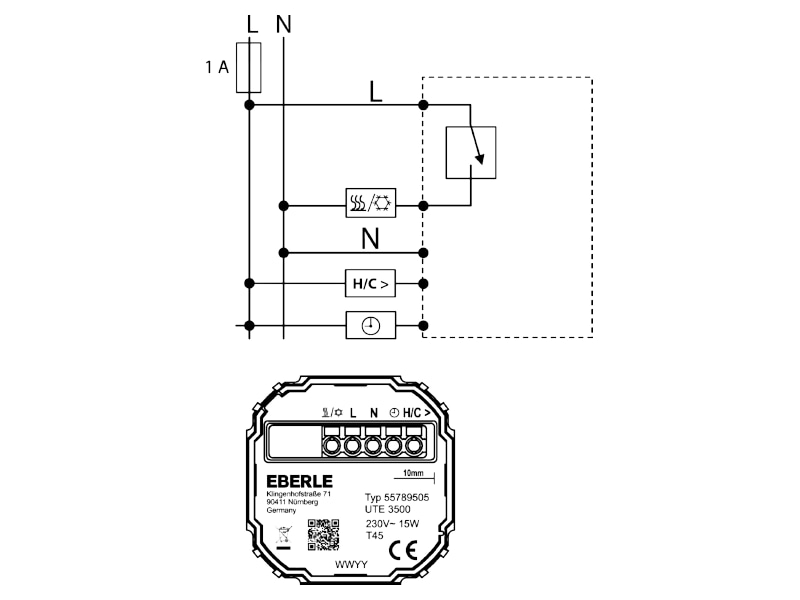

Circuit diagram Eberle 557895056500 Room thermostat
Circuit diagram

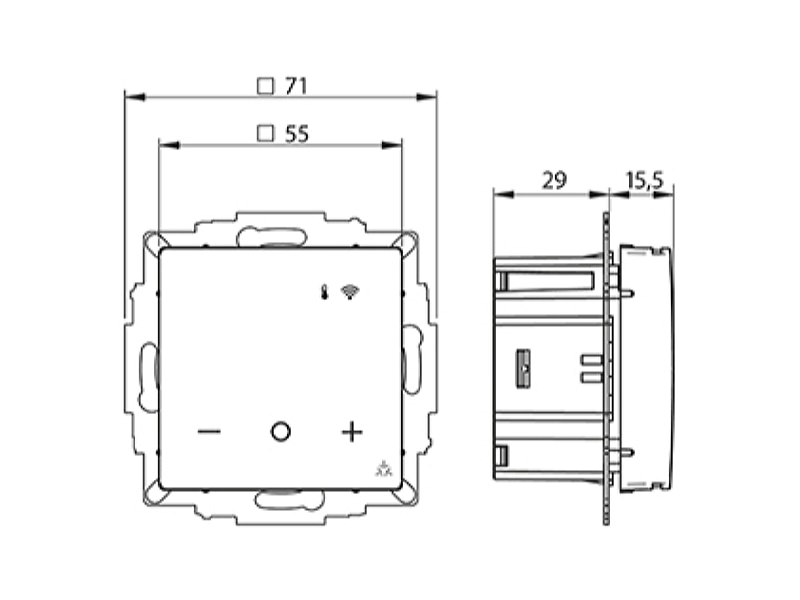

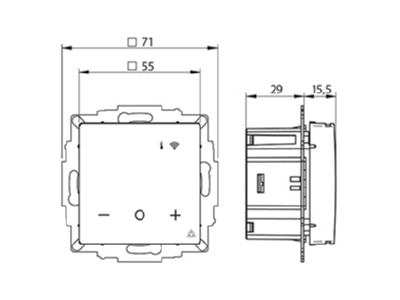

Dimensional drawing Eberle 557895056500 Room thermostat
Dimensional drawing
