Timer relay 3...60s AC 400V DC 0V ETR4-51-W
Source photo:
Eaton
(fig. might be different or similar)

Timer relay 3...60s AC 400V DC 0V ETR4-51-W

EAN/GTIN: 4015080318859
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: ETR4-51-W
Manufact.-SKU: 031885
Customs tariff no.: 85364900
Similar top items: Show now & compare
97,69 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Type of electric connection=Screw connection, Function delay-on energization=no, Function delay on de-energization=no, Function floating contact on energization=no, Function floating contact on de-energization=no, Function star-delta=yes, Function pulse shaping=no, Function flashing, starting with pause, fixed time=no, Function flashing, starting with pulse, fixed time=no, Clock function, starting with pause, variable=no, Clock function, starting with pulse, variable=no, With plug-in socket=no, Remote operation possible=no, Suitable as remote control=no, Pluggable on auxiliary contact block=no, Rated control supply voltage Us at AC 50HZ=400 V, Rated control supply voltage Us at AC 60HZ=400 V, Rated control supply voltage Us at DC=0 V, Voltage type for actuating=AC, Nominal current=3 A, Time range=3..60 s, Number of outputs, undelayed, normally open contact=1, Number of outputs, delayed, normally open contact=1, Outputs, reversible delayed/undelayed=no, With semiconductor output=no, Suitable for DIN rail (top hat rail) mounting=yes, Suitable for front mounting=no, Width=23 mm, Height=83 mm, Depth=103 mm

More product images:

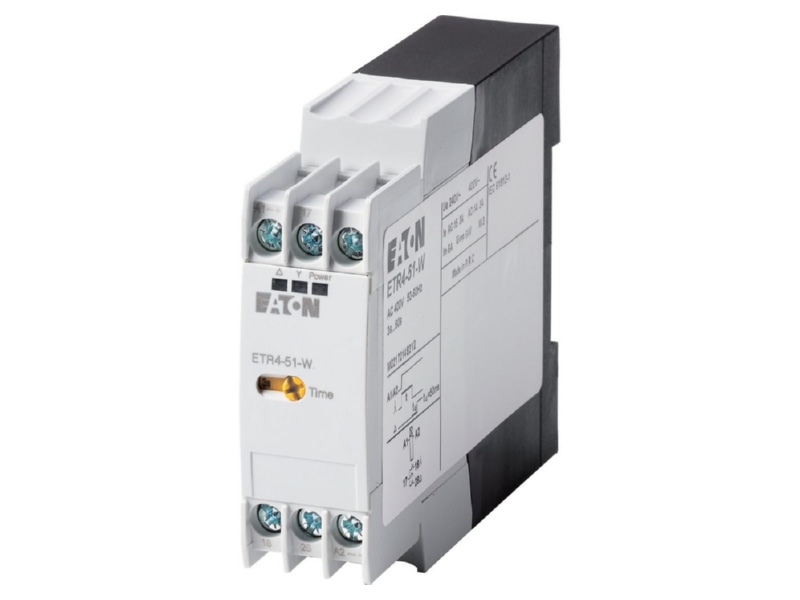

Product image Eaton ETR4 51 W Timer relay 3   60s AC 400V DC 0V
Product image

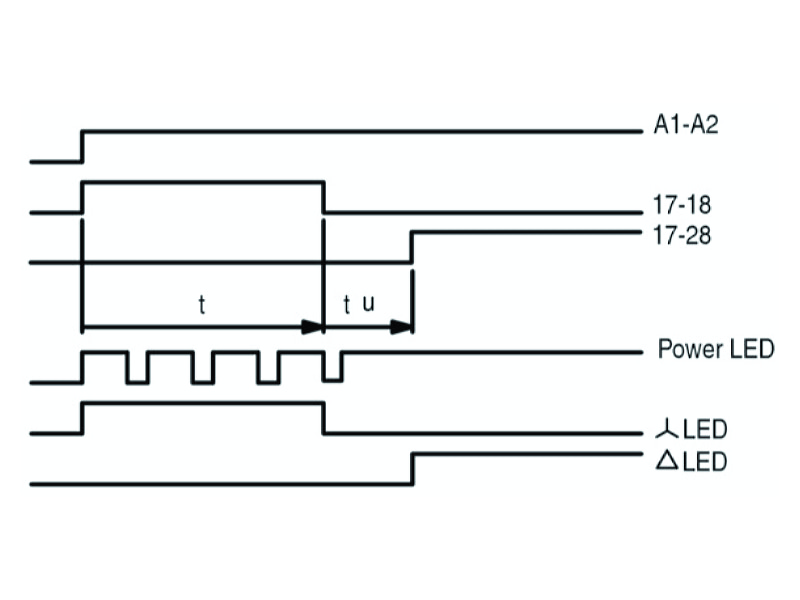

Flow chart Eaton ETR4 51 W Timer relay 3   60s AC 400V DC 0V
Flow chart
