Timer relay 0,05...360000s AC 400V DC 0V ETR4-69-W
Source photo:
Eaton
(fig. might be different or similar)

Timer relay 0,05...360000s AC 400V DC 0V ETR4-69-W

EAN/GTIN: 4015080318873
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: ETR4-69-W
Manufact.-SKU: 031887
Customs tariff no.: 85364900
Similar top items: Show now & compare
133,86 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Type of electric connection=Screw connection, Function delay-on energization=yes, Function delay on de-energization=yes, Function floating contact on energization=yes, Function floating contact on de-energization=yes, Function star-delta=no, Function pulse shaping=yes, Function flashing, starting with pause, fixed time=yes, Function flashing, starting with pulse, fixed time=yes, Clock function, starting with pause, variable=yes, Clock function, starting with pulse, variable=yes, With plug-in socket=no, Remote operation possible=no, Suitable as remote control=no, Pluggable on auxiliary contact block=no, Rated control supply voltage Us at AC 50HZ=400 V, Rated control supply voltage Us at AC 60HZ=400 V, Rated control supply voltage Us at DC=0 V, Voltage type for actuating=AC, Nominal current=3 A, Time range=0,05..360000 s, Number of outputs, undelayed, change-over contact=1, Number of outputs, delayed, change-over contact=1, Outputs, reversible delayed/undelayed=yes, With semiconductor output=no, Suitable for DIN rail (top hat rail) mounting=yes, Suitable for front mounting=no, Width=23 mm, Height=83 mm, Depth=103 mm

More product images:

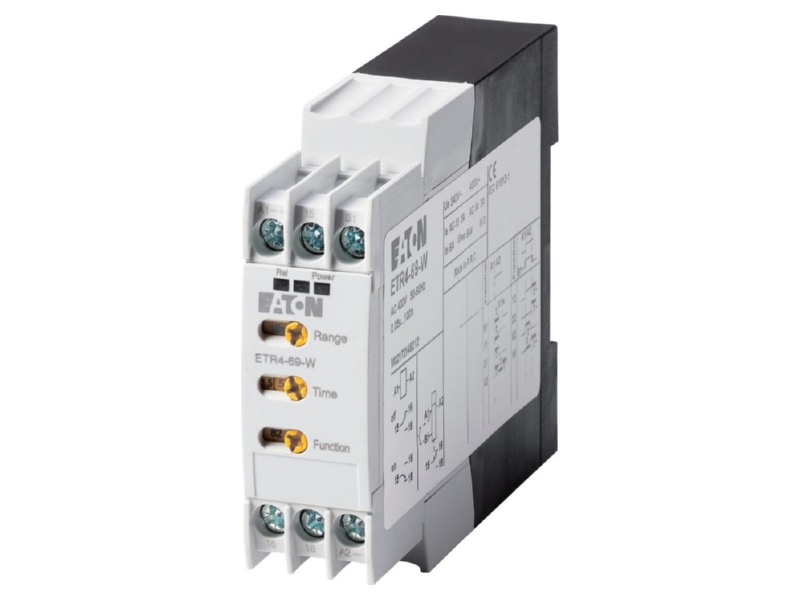

Product image Eaton ETR4 69 W Timer relay 0 05   360000s AC 400V DC 0V
Product image
Flow chart 1 Eaton ETR4 69 W Timer relay 0 05   360000s AC 400V DC 0V
Flow chart 1

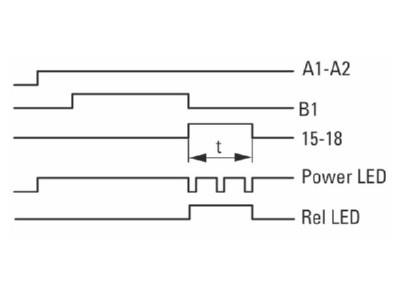

Flow chart 2 Eaton ETR4 69 W Timer relay 0 05   360000s AC 400V DC 0V
Flow chart 2

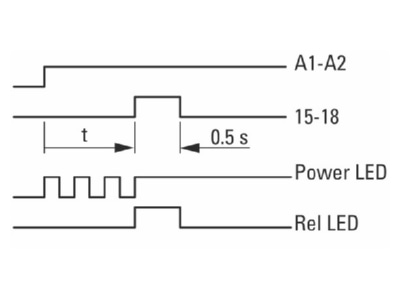

Flow chart 3 Eaton ETR4 69 W Timer relay 0 05   360000s AC 400V DC 0V
Flow chart 3

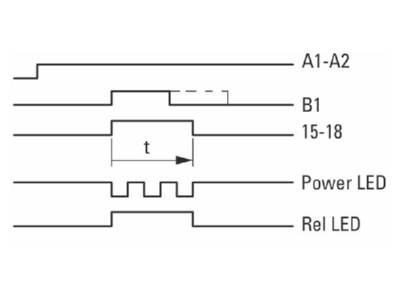

Flow chart 4 Eaton ETR4 69 W Timer relay 0 05   360000s AC 400V DC 0V
Flow chart 4

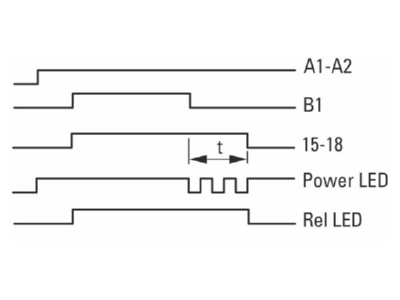

Flow chart 5 Eaton ETR4 69 W Timer relay 0 05   360000s AC 400V DC 0V
Flow chart 5

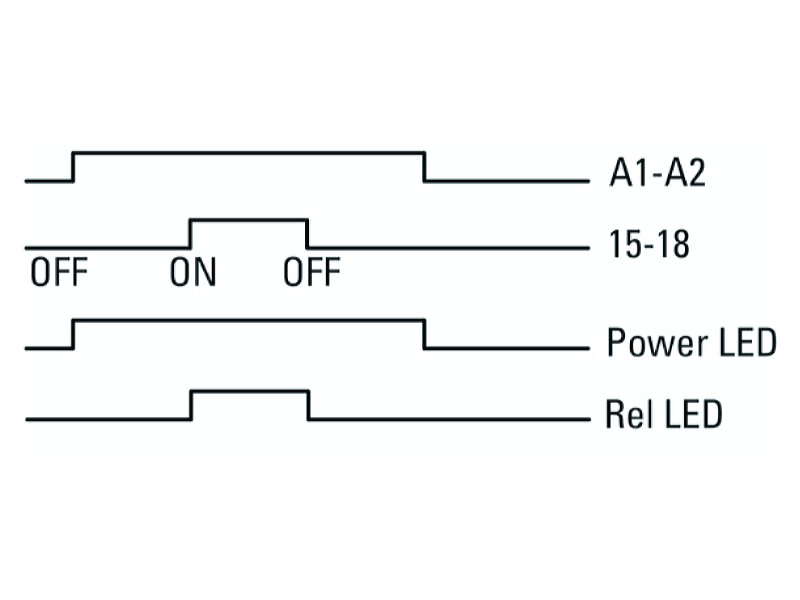

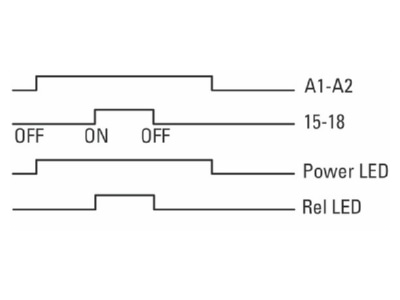

Flow chart 6 Eaton ETR4 69 W Timer relay 0 05   360000s AC 400V DC 0V
Flow chart 6
Flow chart 7 Eaton ETR4 69 W Timer relay 0 05   360000s AC 400V DC 0V
Flow chart 7

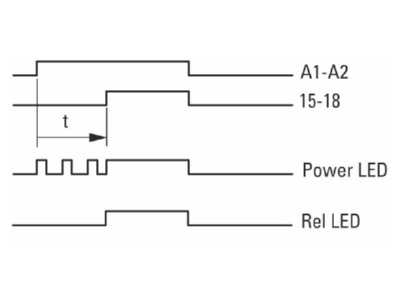

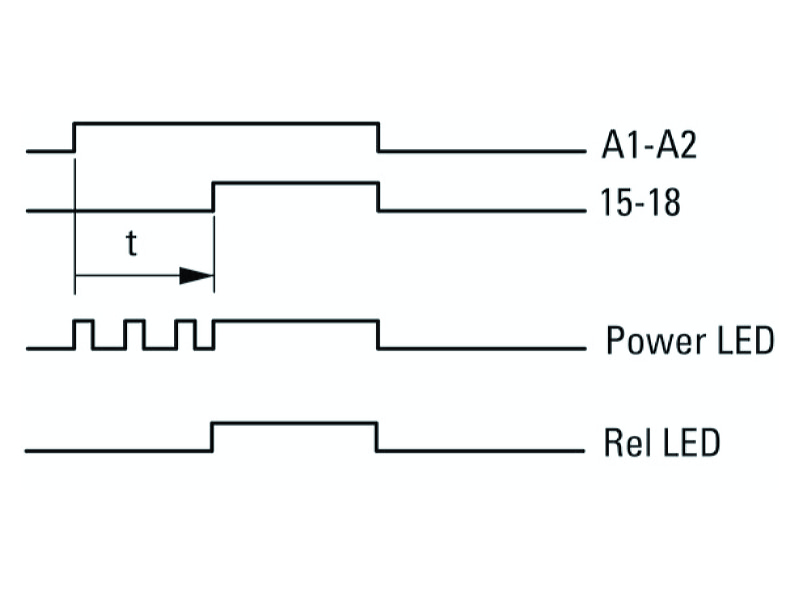

Flow chart 8 Eaton ETR4 69 W Timer relay 0 05   360000s AC 400V DC 0V
Flow chart 8
Flow chart 9 Eaton ETR4 69 W Timer relay 0 05   360000s AC 400V DC 0V
Flow chart 9
