Timer relay 0,05...360000s AC 24...240V ETR2-42
Source photo:
Eaton
(fig. might be different or similar)

Timer relay 0,05...360000s AC 24...240V ETR2-42

EAN/GTIN: 4015082626884
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: ETR2-42
Manufact.-SKU: 262688
Customs tariff no.: 85364900
Similar top items: Show now & compare
94,79 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Type of electric connection=Screw connection, Function delay-on energization=no, Function delay on de-energization=no, Function floating contact on energization=no, Function floating contact on de-energization=no, Function star-delta=no, Function pulse shaping=no, Function flashing, starting with pause, fixed time=yes, Function flashing, starting with pulse, fixed time=yes, Clock function, starting with pause, variable=no, Clock function, starting with pulse, variable=no, With plug-in socket=no, Remote operation possible=yes, Suitable as remote control=no, Pluggable on auxiliary contact block=no, Rated control supply voltage Us at AC 50HZ=24..240 V, Rated control supply voltage Us at AC 60HZ=24..240 V, Rated control supply voltage Us at DC=24..240 V, Voltage type for actuating=AC/DC, Nominal current=3 A, Time range=0,05..360000 s, Number of outputs, undelayed, change-over contact=1, Outputs, reversible delayed/undelayed=no, With semiconductor output=no, Suitable for DIN rail (top hat rail) mounting=yes, Suitable for front mounting=no, Width=18 mm, Height=70 mm, Depth=63 mm

More product images:

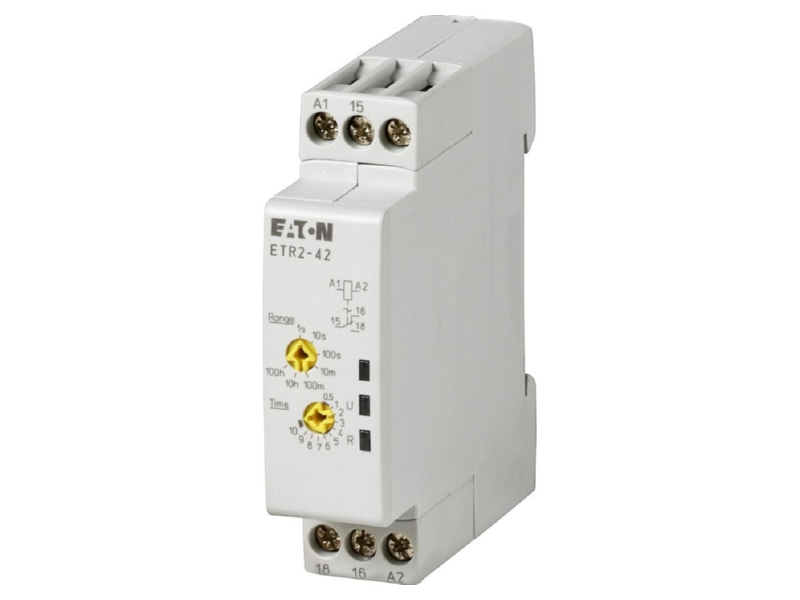

Product image Eaton ETR2 42 Timer relay 0 05   360000s AC 24   240V
Product image

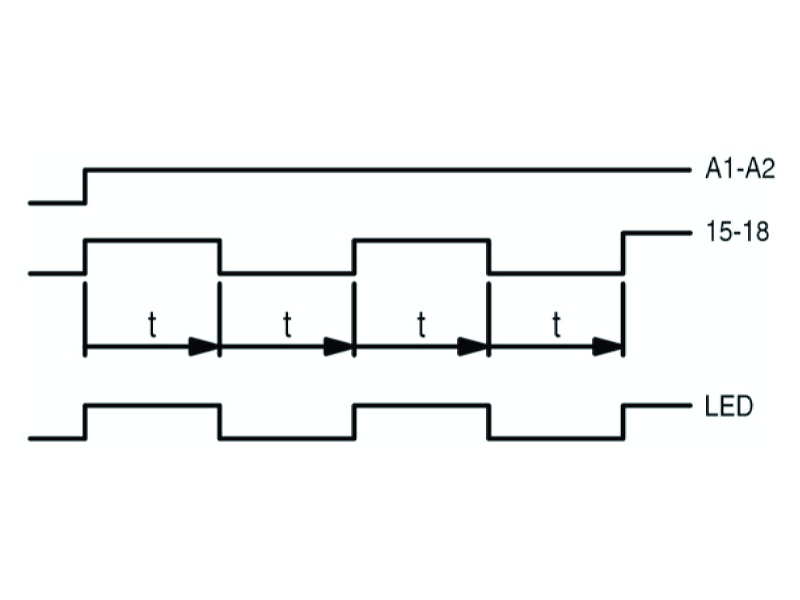

Flow chart Eaton ETR2 42 Timer relay 0 05   360000s AC 24   240V
Flow chart
