Source photo: www.EIB3D.com

Safety switch 8-p 5,5kW T0-4-8344/I1/SVB-SW

EAN/GTIN: 4015082071646
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: T0-4-8344/I1/SVB-SW
Manufact.-SKU: 207164
Customs tariff no.: 85365080
Similar top items: Show now & compare
76,68 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Version as main switch=yes, Version as maintenance-/service switch=yes, Version as safety switch=no, Version as emergency stop installation=no, Version as reversing switch=no, Number of switches=1, Max. rated operation voltage Ue AC=690 V, Rated operating voltage=690 V, Rated permanent current Iu=20 A, Rated permanent current at AC-23, 400 V=13,3 A, Rated permanent current at AC-21, 400 V=20 A, Rated operation power at AC-3, 400 V=5,5 kW, Rated short-time withstand current lcw=0,32 kA, Rated operation power at AC-23, 400 V=5,5 kW, Switching power at 400 V=5,5 kW, Conditioned rated short-circuit current Iq=6 kA, Number of poles=8, Motor drive optional=no, Motor drive integrated=no, Voltage release optional=no, Device construction=Complete device in housing, Suitable for floor mounting=yes, Suitable for front mounting 4-hole=no, Suitable for front mounting centre=no, Suitable for distribution board installation=no, Suitable for intermediate mounting=no, Colour control element=Black, Type of control element=Door coupling rotary drive, Interlockable=yes, Type of electrical connection of main circuit=Screw connection, Degree of protection (IP), front side=IP65, Degree of protection (NEMA)=Other

More product images:

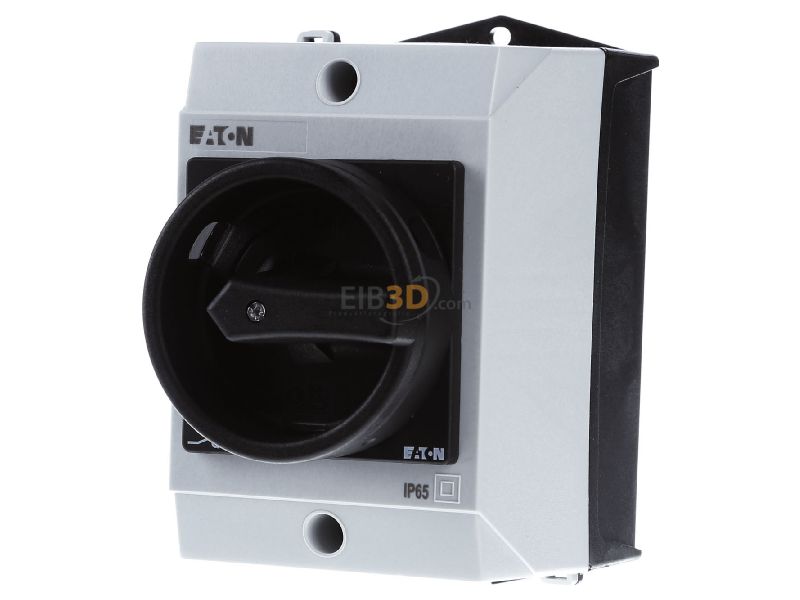

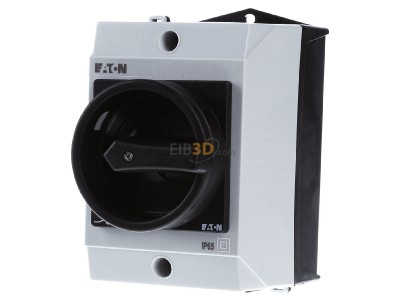

Front view Eaton T0-4-8344/I1/SVB-SW Safety switch 8-p 5,5kW
Front view

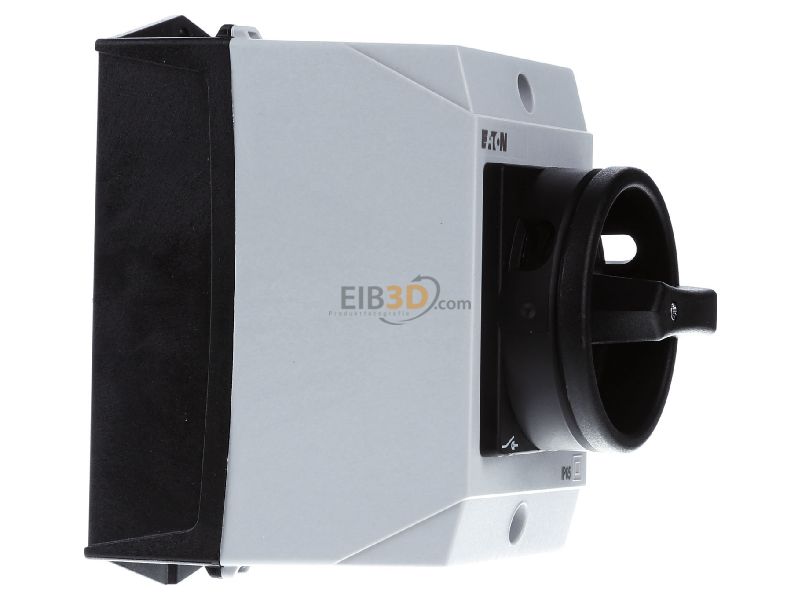

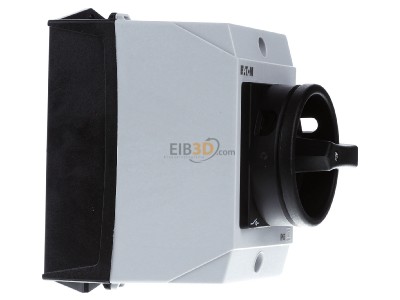

View on the left Eaton T0-4-8344/I1/SVB-SW Safety switch 8-p 5,5kW
View on the left

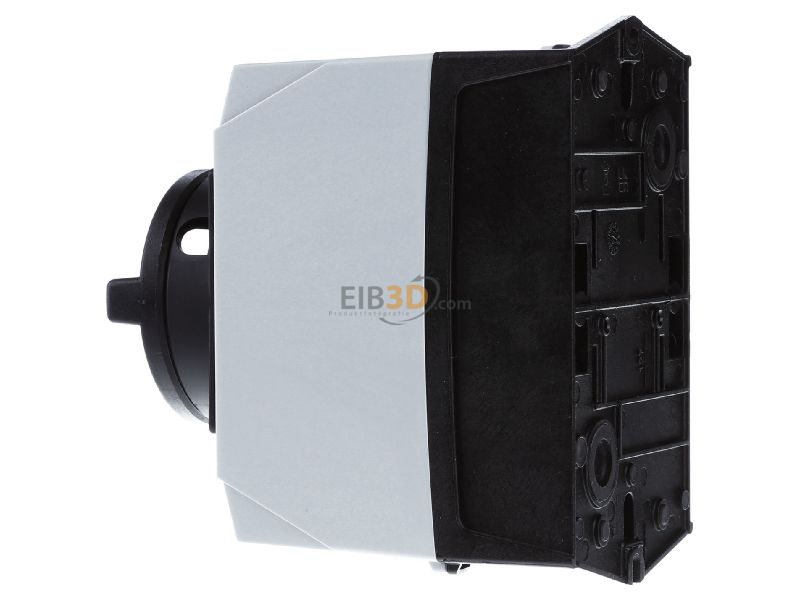

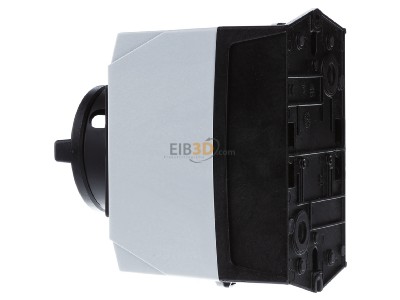

View on the right Eaton T0-4-8344/I1/SVB-SW Safety switch 8-p 5,5kW
View on the right

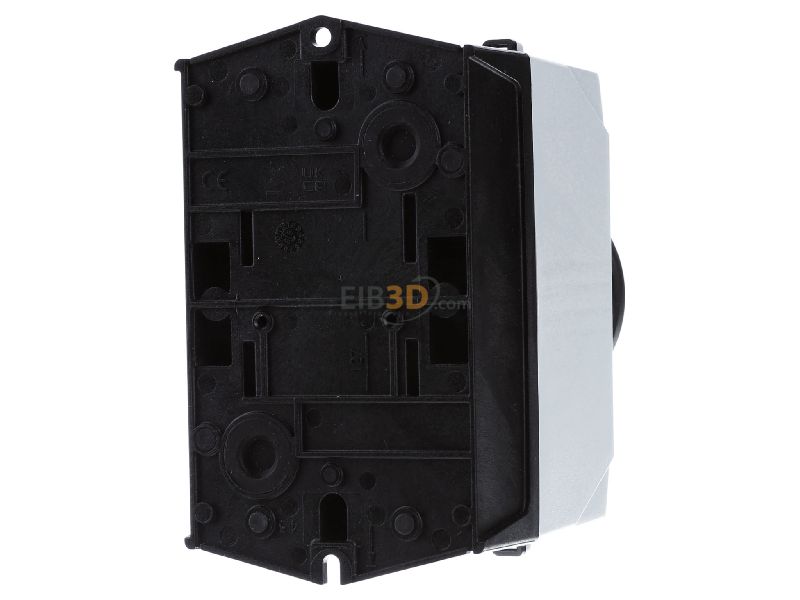

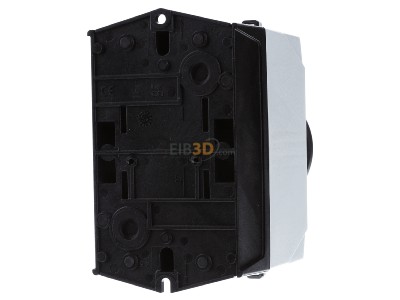

Back view Eaton T0-4-8344/I1/SVB-SW Safety switch 8-p 5,5kW
Back view

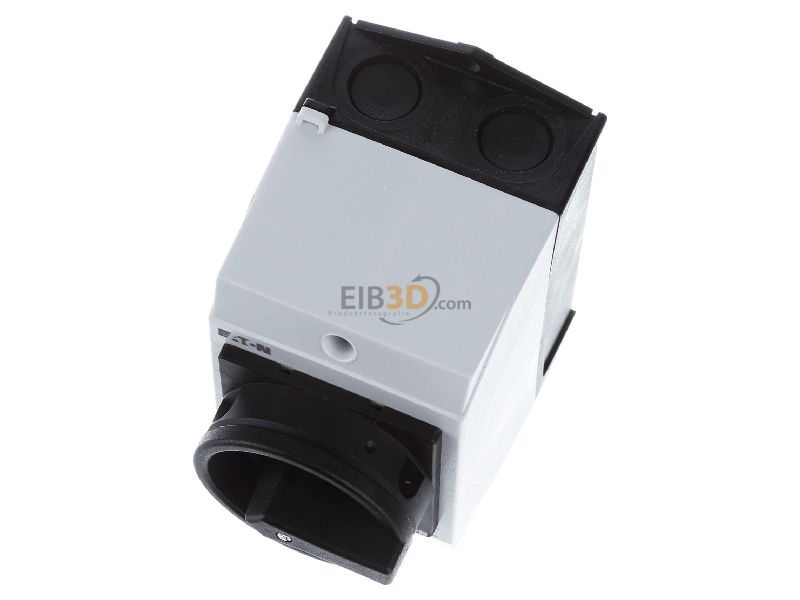

View up front Eaton T0-4-8344/I1/SVB-SW Safety switch 8-p 5,5kW
View up front

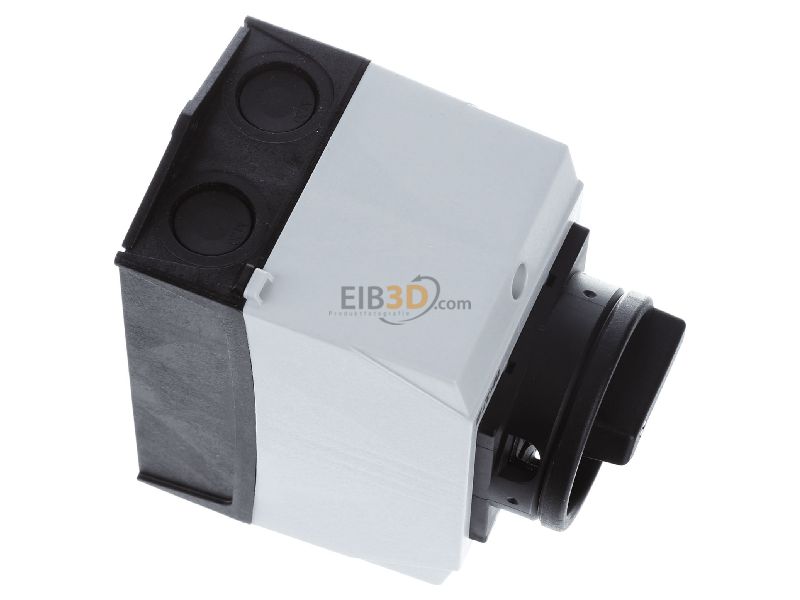

View top left Eaton T0-4-8344/I1/SVB-SW Safety switch 8-p 5,5kW
View top left

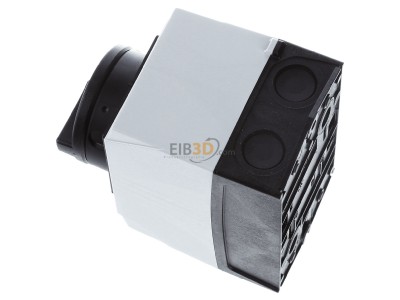

View top right Eaton T0-4-8344/I1/SVB-SW Safety switch 8-p 5,5kW
View top right

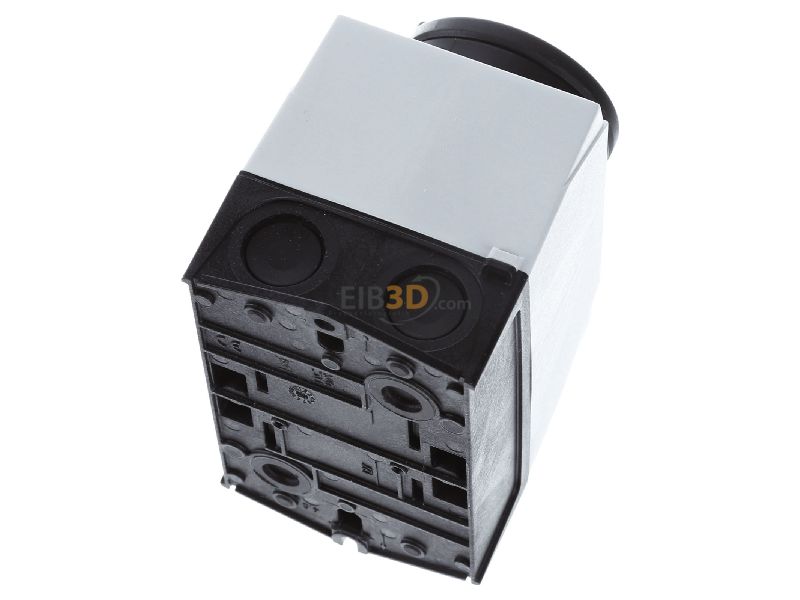

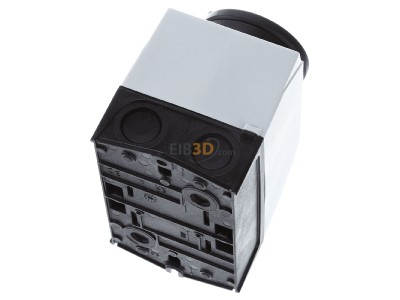

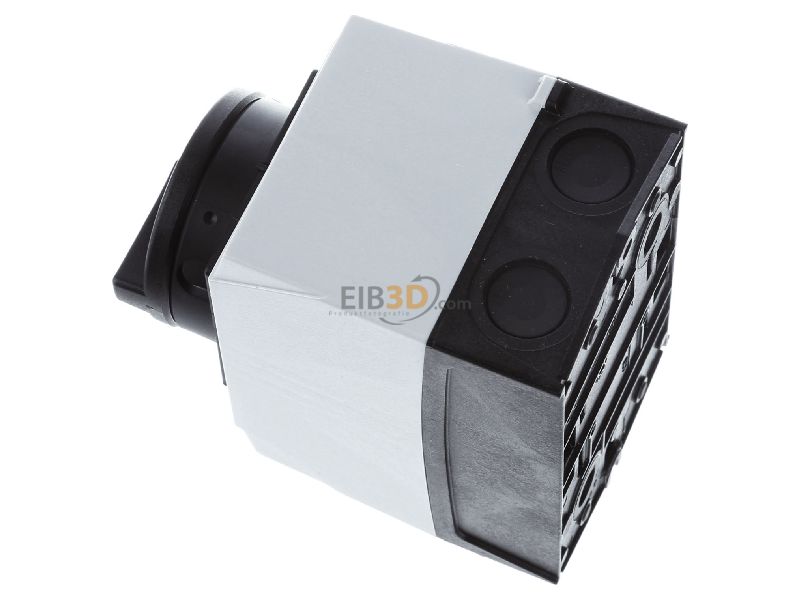

Top rear view Eaton T0-4-8344/I1/SVB-SW Safety switch 8-p 5,5kW
Top rear view

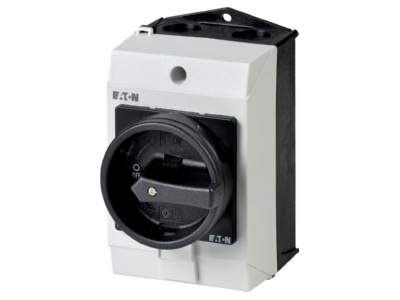

Product image Eaton T0 4 8344 I1 SVB SW Safety switch 8 p 5 5kW
Product image

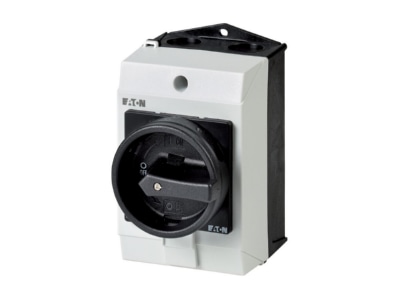

View left Eaton T0 4 8344 I1 SVB SW Safety switch 8 p 5 5kW
View left
