Safety switch 6-p 5,5kW T0-3-8342/E
Source photo:
Eaton
(fig. might be different or similar)

Safety switch 6-p 5,5kW T0-3-8342/E

EAN/GTIN: 4015080436249
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: T0-3-8342/E
Manufact.-SKU: 043624
Customs tariff no.: 85365080
Similar top items: Show now & compare
39,81 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Version as main switch=no, Version as maintenance-/service switch=no, Version as safety switch=no, Version as emergency stop installation=no, Version as reversing switch=no, Number of switches=1, Max. rated operation voltage Ue AC=690 V, Rated operating voltage=690 V, Rated permanent current Iu=20 A, Rated permanent current at AC-23, 400 V=13,3 A, Rated permanent current at AC-21, 400 V=20 A, Rated operation power at AC-3, 400 V=5,5 kW, Rated short-time withstand current lcw=0,32 kA, Rated operation power at AC-23, 400 V=5,5 kW, Switching power at 400 V=5,5 kW, Conditioned rated short-circuit current Iq=6 kA, Number of poles=6, Motor drive optional=no, Motor drive integrated=no, Voltage release optional=no, Device construction=Built-in device fixed built-in technique, Suitable for floor mounting=no, Suitable for front mounting 4-hole=yes, Suitable for front mounting centre=no, Suitable for distribution board installation=no, Suitable for intermediate mounting=no, Colour control element=Black, Type of control element=Toggle, Interlockable=no, Type of electrical connection of main circuit=Screw connection, Degree of protection (IP), front side=IP65, Degree of protection (NEMA)=12

More product images:

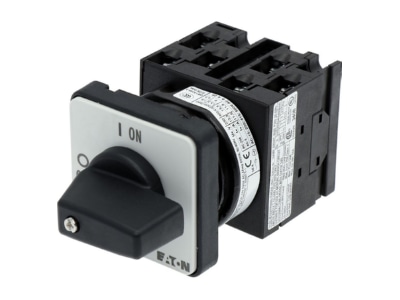

Product image Eaton T0 3 8342 E Safety switch 6 p 5 5kW
Product image

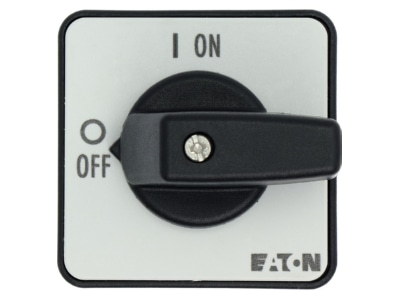

Front view 1 Eaton T0 3 8342 E Safety switch 6 p 5 5kW
Front view 1
Front view 2 Eaton T0 3 8342 E Safety switch 6 p 5 5kW
Front view 2
View right 1 Eaton T0 3 8342 E Safety switch 6 p 5 5kW
View right 1

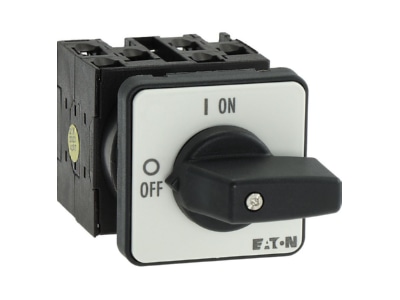

View right 2 Eaton T0 3 8342 E Safety switch 6 p 5 5kW
View right 2
Top view 1 Eaton T0 3 8342 E Safety switch 6 p 5 5kW
Top view 1
Top view 2 Eaton T0 3 8342 E Safety switch 6 p 5 5kW
Top view 2
View below 1 Eaton T0 3 8342 E Safety switch 6 p 5 5kW
View below 1
View below 2 Eaton T0 3 8342 E Safety switch 6 p 5 5kW
View below 2
Back view 1 Eaton T0 3 8342 E Safety switch 6 p 5 5kW
Back view 1

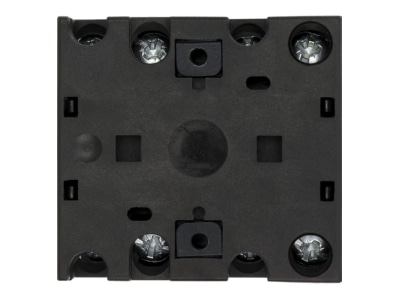

Back view 2 Eaton T0 3 8342 E Safety switch 6 p 5 5kW
