Push button actuator black IP66 M22S-DDL-S-X4/X5
Source photo:
Eaton
(fig. might be different or similar)

Push button actuator black IP66 M22S-DDL-S-X4/X5

EAN/GTIN: 4015082181468
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: M22S-DDL-S-X4/X5
Manufact.-SKU: 218146
Customs tariff no.: 85389099
Order level:
(minimum)
5 pce
Similar top items: Show now & compare
85,75 EUR Price incl. tax. 19,00%
(for 5 pce)
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 5 pce orderable.
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Colour button=Black, Number of command positions=2, Construction type lens=Round, Hole diameter=22,5 mm, Width opening=0 mm, Height opening=0 mm, Type of button=Flat, Suitable for illumination=yes, With protective cover=no, Labelled=yes, Switching function latching=no, Spring-return=yes, With front ring=yes, Material front ring=Plastic, Colour front ring=Black, Degree of protection (IP), front side=IP66, Degree of protection (NEMA), front side=4X

More product images:

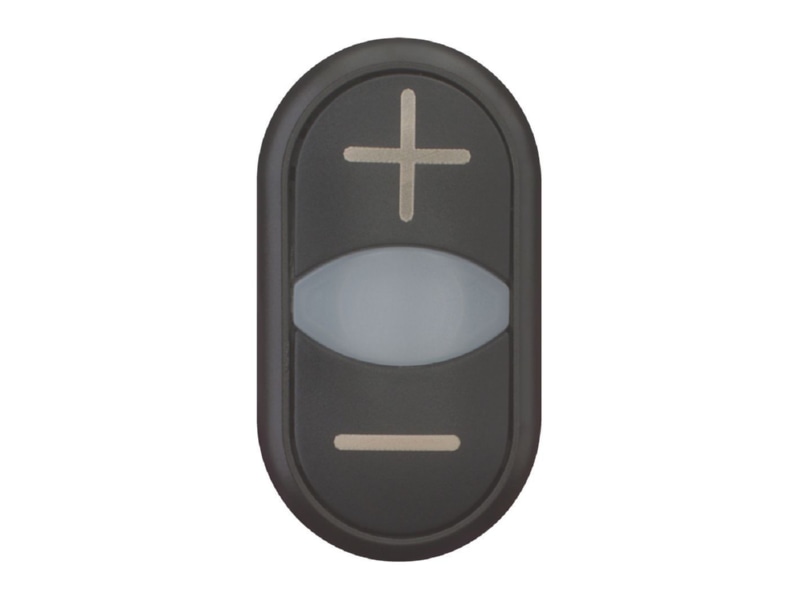

Product image Eaton M22S DDL S X4 X5 Push button actuator black IP66
Product image

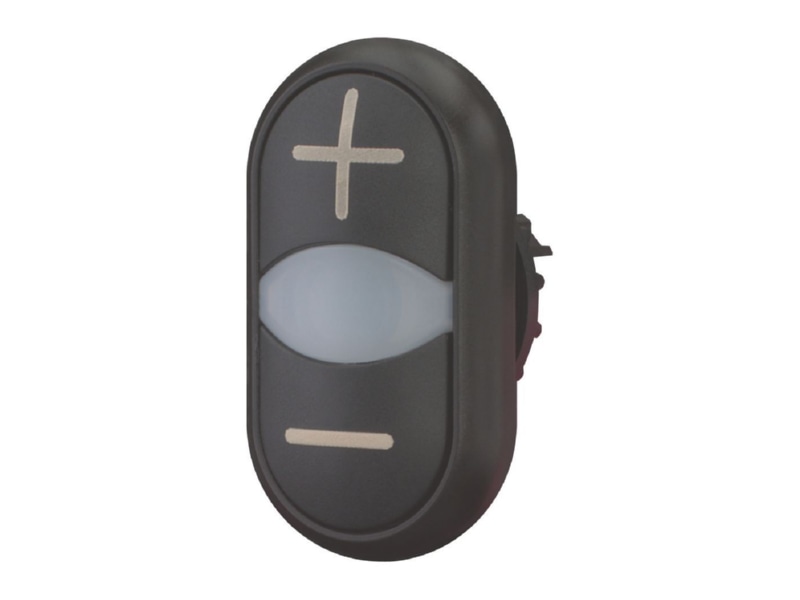

Front view 1 Eaton M22S DDL S X4 X5 Push button actuator black IP66
Front view 1
Front view 2 Eaton M22S DDL S X4 X5 Push button actuator black IP66
Front view 2

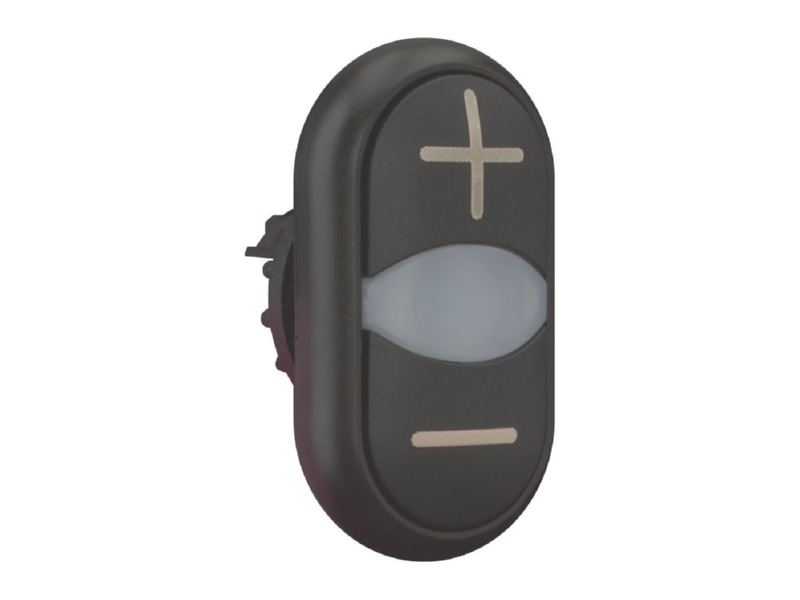

View right 1 Eaton M22S DDL S X4 X5 Push button actuator black IP66
View right 1
View right 2 Eaton M22S DDL S X4 X5 Push button actuator black IP66
View right 2
