Pressure switch 0hPa MCS4-G
Source photo:
Eaton
(fig. might be different or similar)

Pressure switch 0hPa MCS4-G

EAN/GTIN: 4015080586937
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: MCS4-G
Manufact.-SKU: 058693
Customs tariff no.: 85365080
Similar top items: Show now & compare
124,60 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Suitable as guard=yes, Suitable as 2-point controller=yes, Suitable as limiter=no, Max. operating pressure=7000 hPa, Engaging pressure=0..4,2 bar, Initial setting=0 hPa, Switch off pressure=0..4,5 bar, End setting=0 hPa, Pressure-switching differential=0 bar, Max. test pressure=32 bar, Bursting pressure=90 bar, Medium temperature=25..80 °C, Connection=Internal thread cylindrical BSPP-G (ISO 228-1), Thread size=1/4 inch, Rated voltage Ue at AC 50 Hz=0..230 V, Rated voltage Ue at AC 60 Hz=0..230 V, Rated voltage Ue at DC=0..110 V, Initial value measuring range pressure=0 Pa, End value measuring range pressure=0 Pa, Rated operation power at AC-3, 400 V=0 kW, Switching capacity at AC-3, 240 V=0 kA, Rated operation current Ie at AC-1, 400 V=0 A, Rated operation current Ie at AC-3, 400 V=0 A, Number of auxiliary contacts as change-over contact=1, Type of electric connection=Screw connection, Adjustable current range=0 A, With hand operation=no, With manual on/off switch=no, Electronic version=no, With display=no, Explosion-proof=no, Degree of protection (IP)=IP65, Degree of protection (NEMA)=Other, Height=110 mm, Width=60 mm, Diameter=0 mm, Depth=96 mm

More product images:

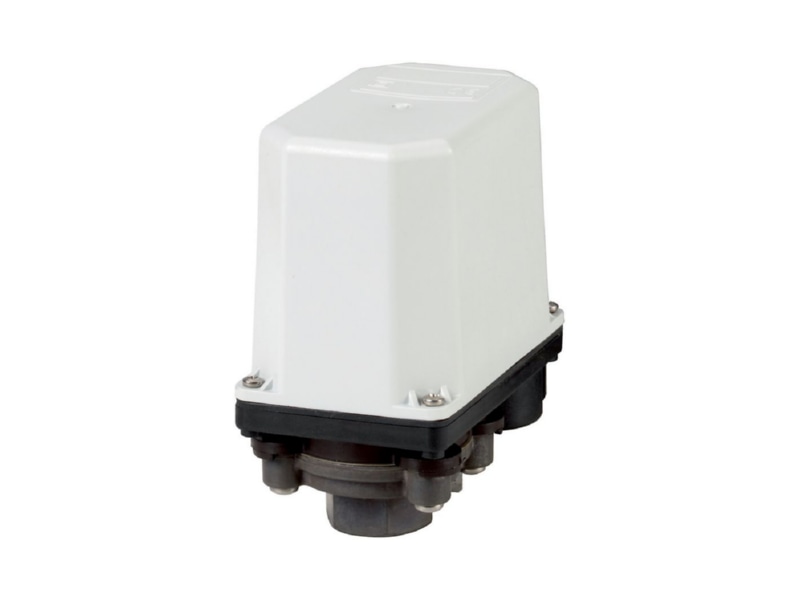

Product image Eaton MCS4 G Pressure switch 0hPa
Product image

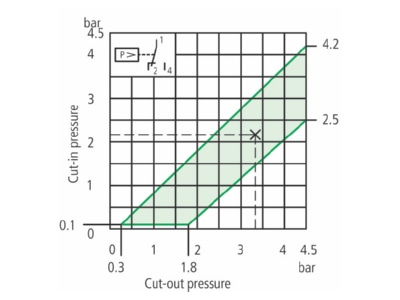

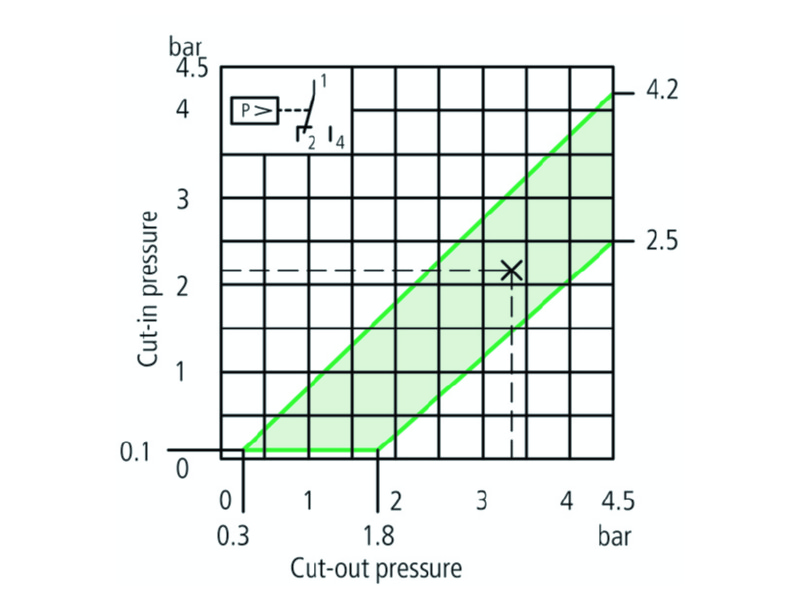

Flow chart Eaton MCS4 G Pressure switch 0hPa
Flow chart
