Motor protection circuit-breaker 32A PKM0-32
Source photo:
Eaton
(fig. might be different or similar)

Motor protection circuit-breaker 32A PKM0-32

EAN/GTIN: 4015082784911
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: PKM0-32
Manufact.-SKU: 278491
Customs tariff no.: 85363030
Similar top items: Show now & compare
154,72 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Overload release current setting=0 A, Adjustment range undelayed short-circuit release=496 A, With thermal protection=no, Phase failure sensitive=no, Switch off technique=Magnetic, Rated operating voltage=690 V, Rated permanent current Iu=32 A, Rated operation power at AC-3, 230 V=7,5 kW, Rated operation power at AC-3, 400 V=15 kW, Type of electrical connection of main circuit=Screw connection, Type of control element=Turn button, Device construction=Built-in device fixed built-in technique, With integrated auxiliary switch=no, With integrated under voltage release=no, Number of poles=3, Rated short-circuit breaking capacity lcu at 400 V, AC=50 kA, Degree of protection (IP)=IP20, Height=93 mm, Width=45 mm, Depth=76 mm

More product images:

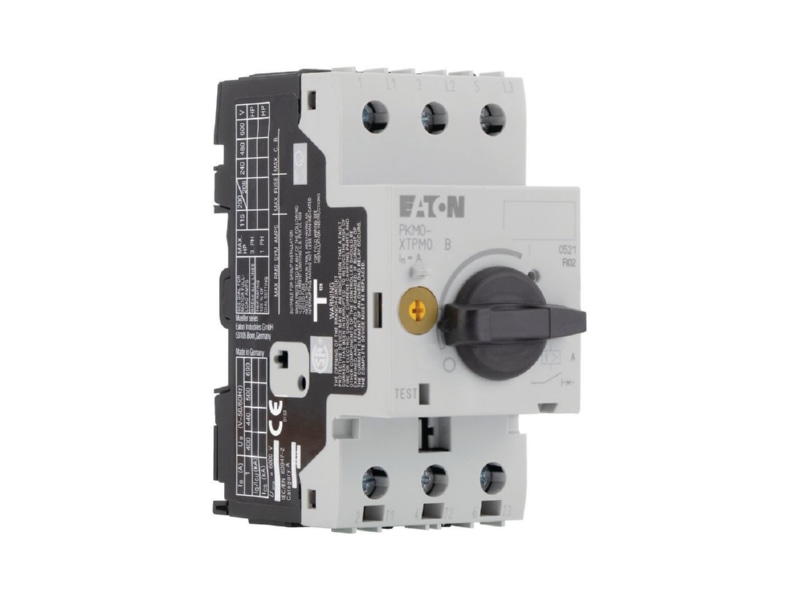

Product image Eaton PKM0 32 Motor protection circuit breaker 32A
Product image

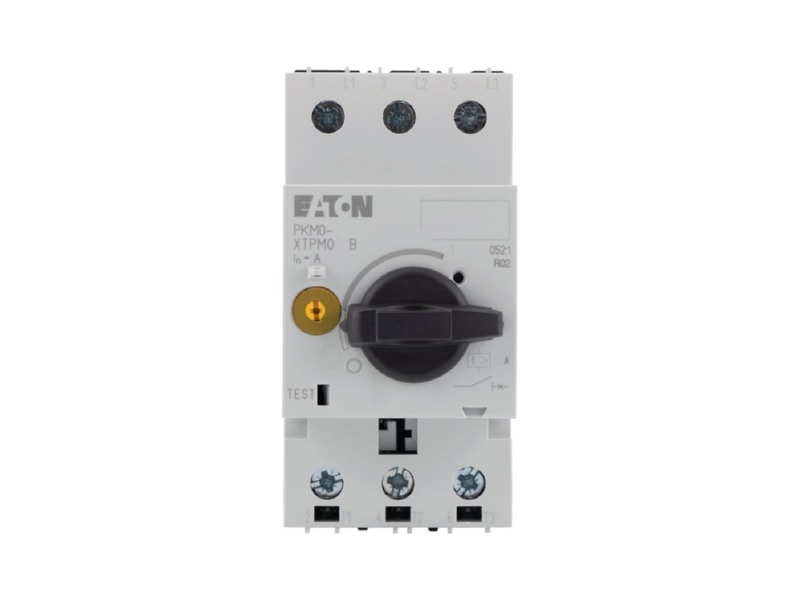

Front view 1 Eaton PKM0 32 Motor protection circuit breaker 32A
Front view 1
Front view 2 Eaton PKM0 32 Motor protection circuit breaker 32A
Front view 2

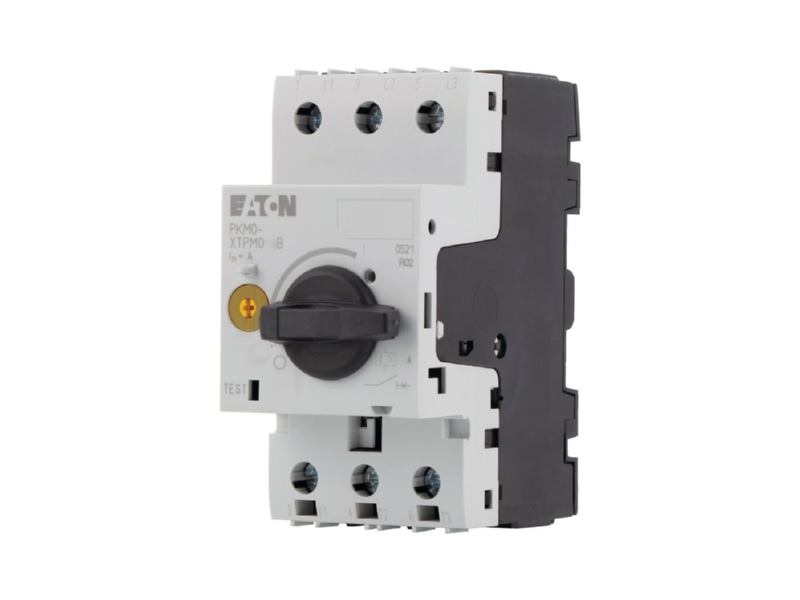

View right 1 Eaton PKM0 32 Motor protection circuit breaker 32A
View right 1
View right 2 Eaton PKM0 32 Motor protection circuit breaker 32A
View right 2
