Star-delta combination 11kW 400VAC 0VDC SDAINLM22(400V50HZ)
Source photo:
Eaton
(fig. might be different or similar)

Star-delta combination 11kW 400VAC 0VDC SDAINLM22(400V50HZ)

EAN/GTIN: 4015081011254
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: SDAINLM22(400V50HZ)
Manufact.-SKU: 101382
Customs tariff no.: 85364900
Similar top items: Show now & compare
332,02 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Function=Star-delta contactor, Rated control supply voltage Us at AC 50HZ=400 V, Rated control supply voltage Us at AC 60HZ=0 V, Rated control supply voltage Us at DC=0 V, Voltage type for actuating=AC, Rated operation current Ie at AC-3, 400 V=22 A, Rated operation power at AC-3, 400 V=11 kW, Rated operation power NEMA=0 kW, Type of electrical connection of main circuit=Screw connection, Degree of protection (IP)=IP20, Degree of protection (NEMA)=Other

More product images:

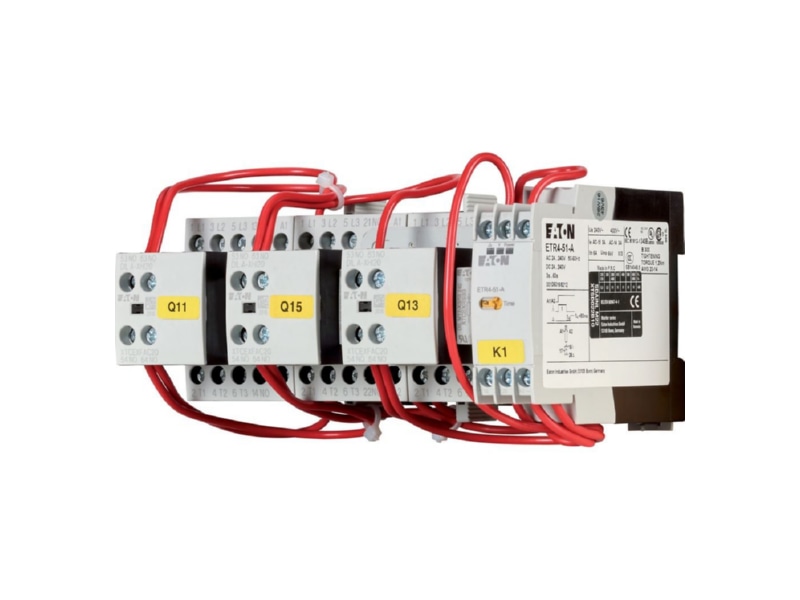

Product image 1 Eaton SDAINLM22 400V50HZ  Star delta combination 11kW 400VAC 0VDC
Product image 1

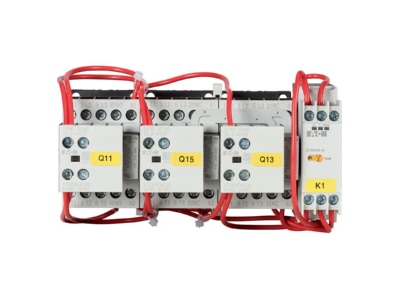

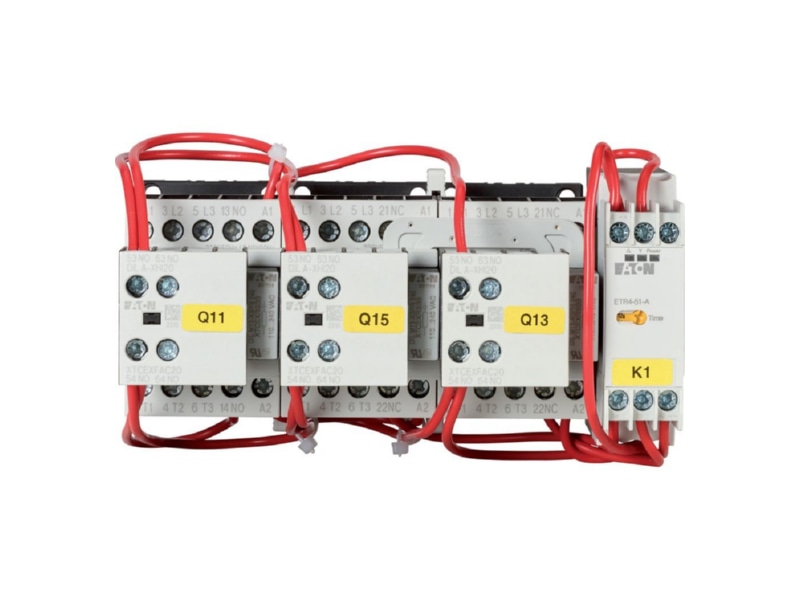

Product image 2 Eaton SDAINLM22 400V50HZ  Star delta combination 11kW 400VAC 0VDC
Product image 2
Product image 3 Eaton SDAINLM22 400V50HZ  Star delta combination 11kW 400VAC 0VDC
Product image 3
