Safety switch 3-p 15kW P1-32/I2H/SVB/HI11

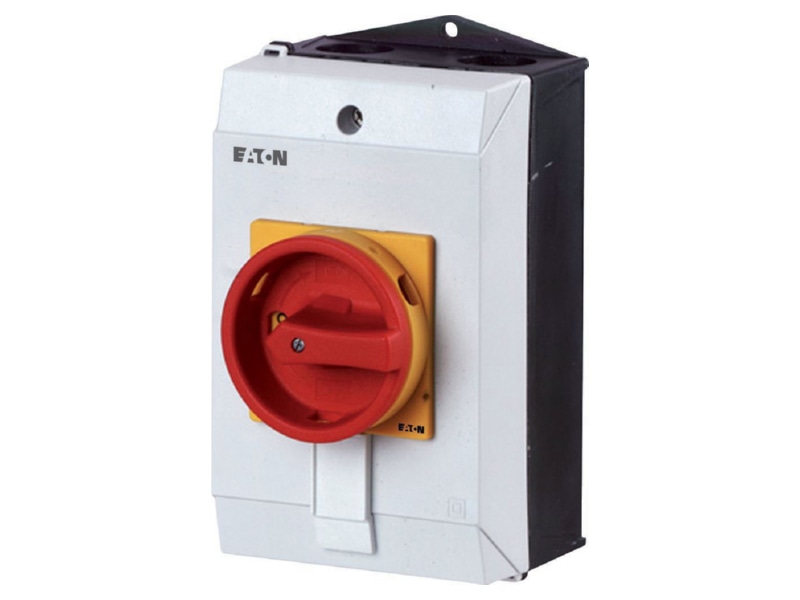

Source photo:
Eaton
(fig. might be different or similar)

Safety switch 3-p 15kW P1-32/I2H/SVB/HI11

EAN/GTIN: 4015082278700
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: P1-32/I2H/SVB/HI11
Manufact.-SKU: 227870
Customs tariff no.: 85365080
Similar top items: Show now & compare
93,73 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Version as main switch=yes, Version as maintenance-/service switch=yes, Version as safety switch=no, Version as emergency stop installation=yes, Version as reversing switch=no, Number of switches=1, Max. rated operation voltage Ue AC=690 V, Rated operating voltage=690 V, Rated permanent current Iu=32 A, Rated permanent current at AC-23, 400 V=32 A, Rated permanent current at AC-21, 400 V=32 A, Rated operation power at AC-3, 400 V=13 kW, Rated short-time withstand current lcw=0,64 kA, Rated operation power at AC-23, 400 V=15 kW, Switching power at 400 V=15 kW, Conditioned rated short-circuit current Iq=80 kA, Number of poles=3, Number of auxiliary contacts as normally closed contact=1, Number of auxiliary contacts as normally open contact=1, Motor drive optional=no, Motor drive integrated=no, Voltage release optional=no, Device construction=Complete device in housing, Suitable for floor mounting=yes, Suitable for front mounting 4-hole=no, Suitable for front mounting centre=no, Suitable for distribution board installation=no, Suitable for intermediate mounting=no, Colour control element=Red, Type of control element=Door coupling rotary drive, Interlockable=yes, Type of electrical connection of main circuit=Screw connection, Degree of protection (IP), front side=IP65, Degree of protection (NEMA)=12

More product images:

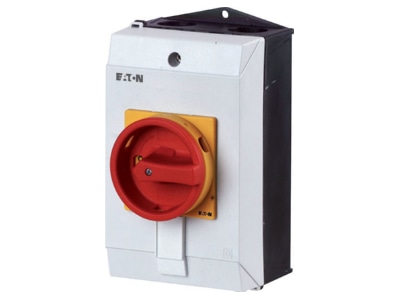

Product image Eaton P1 32 I2H SVB HI11 Safety switch 3 p 15kW
Product image

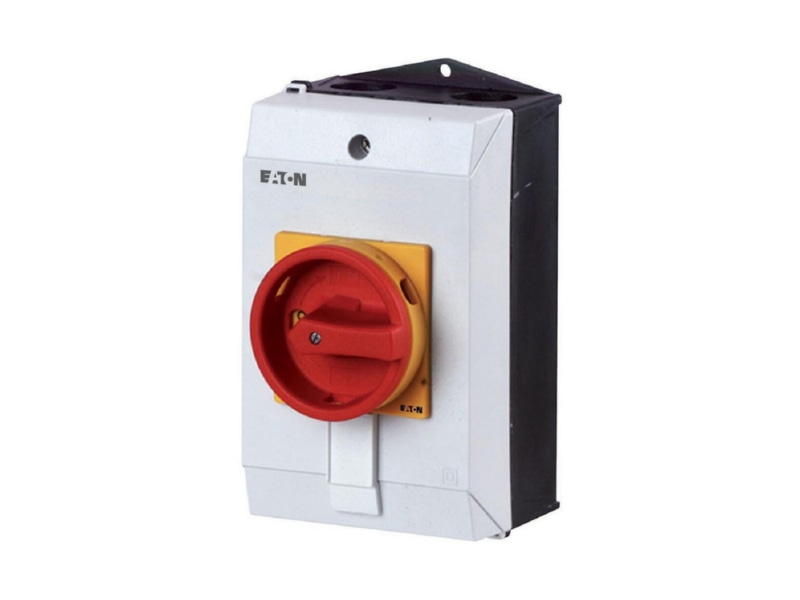

View left Eaton P1 32 I2H SVB HI11 Safety switch 3 p 15kW
View left
