Safety relay 0V AC ESR5-NOS-31-230VAC
Source photo:
Eaton
(fig. might be different or similar)

Safety relay 0V AC ESR5-NOS-31-230VAC

EAN/GTIN: 4015081497485
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: ESR5-NOS-31-230VAC
Manufact.-SKU: 153152
Customs tariff no.: 85364900
Similar top items: Show now & compare
211,36 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Model=Basic device, Suitable for monitoring of position switches=yes, Suitable for monitoring of emergency-stop circuits=yes, Suitable for monitoring of valves=no, Suitable for monitoring of optoelectronic protection equipment=no, Suitable for monitoring of tactile sensors=no, Suitable for monitoring of magnetic switches=no, Suitable for monitoring of proximity switches=no, Type of electric connection=Screw connection, Rail mounting possible=yes, Rated control supply voltage Us at AC 50HZ=0 V, Rated control supply voltage Us at AC 60HZ=0 V, Rated control supply voltage Us at DC=0 V, Voltage type for actuating=AC, With detachable clamps=yes, Evaluation inputs=1-channel, With start input=yes, With muting function=no, With feedback circuit=yes, Release-delay=0 s, Number of outputs, safety related, undelayed, with contact=3, Number of outputs, signalling function, undelayed, with contact=1, Type of safety according to IEC 61496-1=None, Stop category according to IEC 60204=0, Performance level according to EN ISO 13849-1=Level c, SIL according to IEC 61508=1, With approval for BG BIA=no, With approval according to UL=yes, Width=22,5 mm, Height=99 mm, Depth=114,5 mm, With approval for TάV=yes

More product images:

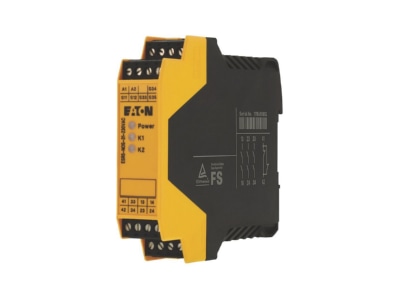

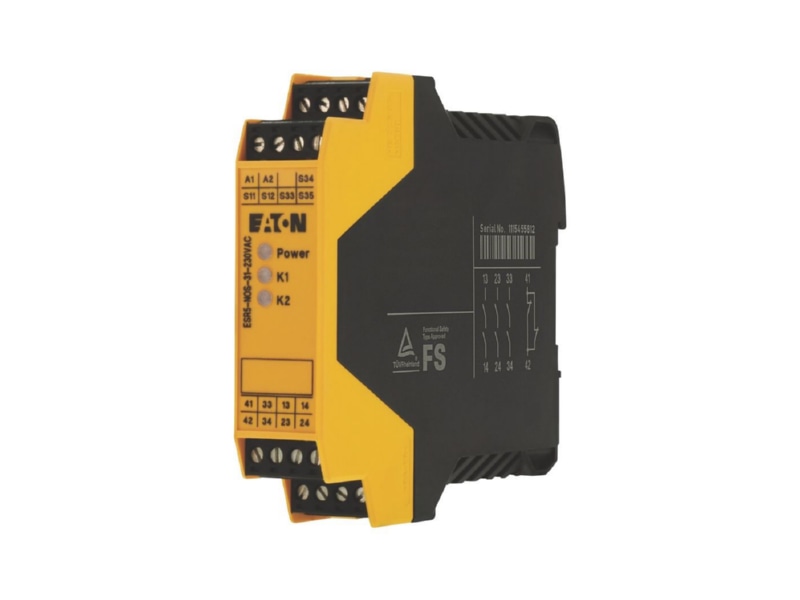

Product image Eaton ESR5 NOS 31 230VAC Safety relay 0V AC
Product image

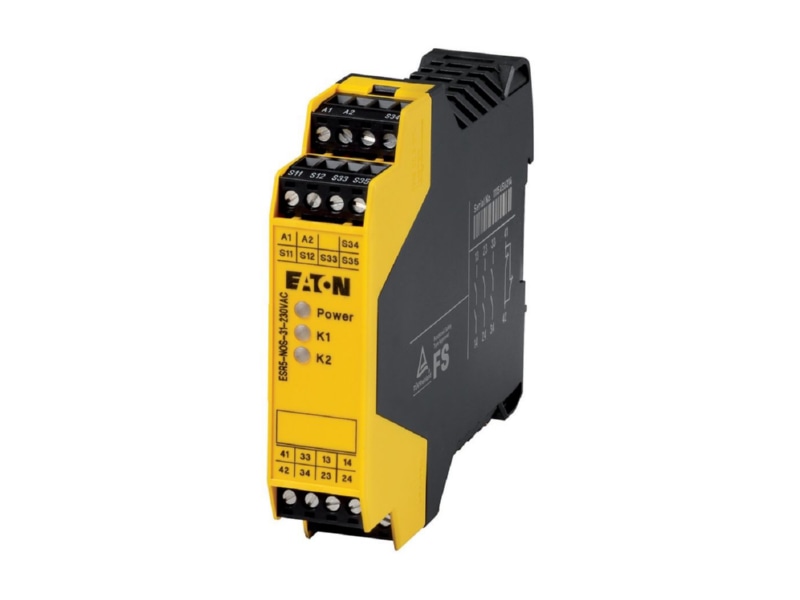

View left Eaton ESR5 NOS 31 230VAC Safety relay 0V AC
View left

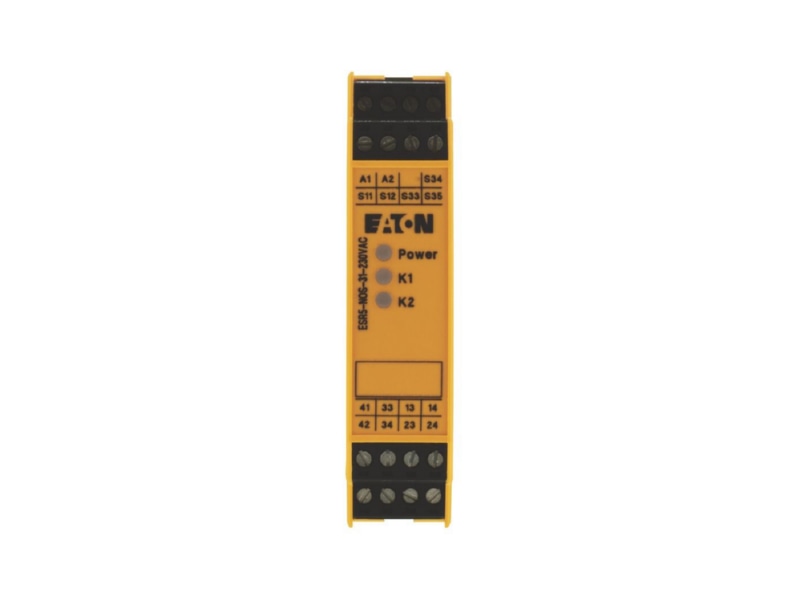

Front view 1 Eaton ESR5 NOS 31 230VAC Safety relay 0V AC
Front view 1
Front view 2 Eaton ESR5 NOS 31 230VAC Safety relay 0V AC
Front view 2

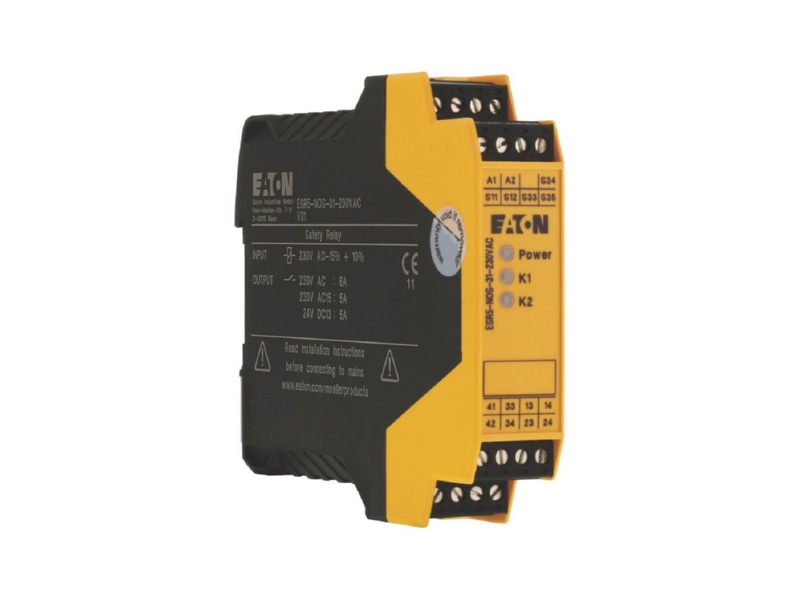

View right 1 Eaton ESR5 NOS 31 230VAC Safety relay 0V AC
