Residual current breaker 4-p FRCMM-40/4/003-A-NA
Source photo:
Eaton
(fig. might be different or similar)

Residual current breaker 4-p FRCMM-40/4/003-A-NA

EAN/GTIN: 4015081636020
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: FRCMM-40/4/003-A-NA
Manufact.-SKU: 167102
Customs tariff no.: 85362010
Similar top items: Show now & compare
256,45 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Number of poles=4, Rated voltage=480 V, Rated current=40 A, Rated fault current=0,03 A, Rated insulation voltage Ui=440 V, Rated impulse withstand voltage Uimp=4 kV, Mounting method=DIN rail, Leakage current type=A, Selective protection=no, Short-time delayed tripping=no, Short-circuit breaking capacity (Icw)=10 kA, Surge current capacity=0,25 kA, With interlocking device=yes, Frequency=50/60 Hz, Additional equipment possible=yes, Degree of protection (IP)=IP20, Width in number of modular spacings=4, Built-in depth=70,5 mm, Ambient temperature during operating=-25..40 °C, Pollution degree=2, Connectable conductor cross section multi-wired=1,5..16 mm², Connectable conductor cross section solid-core=1,5..35 mm²

More product images:

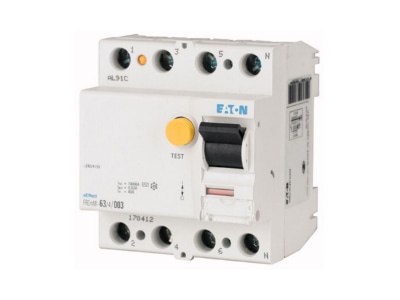

Product image 1 Eaton FRCMM 40 4 003 A NA Residual current breaker 4 p
Product image 1

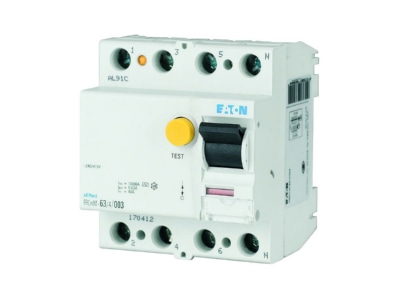

Product image 2 Eaton FRCMM 40 4 003 A NA Residual current breaker 4 p
Product image 2
