Motor protection circuit-breaker 63A NZMH1-M63
Source photo:
Eaton
(fig. might be different or similar)

Motor protection circuit-breaker 63A NZMH1-M63

EAN/GTIN: 4015081151929
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: NZMH1-M63
Manufact.-SKU: 115452
Customs tariff no.: 85362010
Similar top items: Show now & compare
365,52 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Overload release current setting=50..63 A, Adjustment range undelayed short-circuit release=504..882 A, With thermal protection=yes, Phase failure sensitive=yes, Switch off technique=Thermomagnetic, Rated operating voltage=690 V, Rated permanent current Iu=63 A, Rated operation power at AC-3, 230 V=18,5 kW, Rated operation power at AC-3, 400 V=30 kW, Type of electrical connection of main circuit=Other, Type of control element=Rocker lever, Device construction=Built-in device fixed built-in technique, With integrated auxiliary switch=no, With integrated under voltage release=no, Number of poles=3, Rated short-circuit breaking capacity lcu at 400 V, AC=100 kA, Degree of protection (IP)=IP20, Height=145 mm, Width=90 mm, Depth=88 mm

More product images:

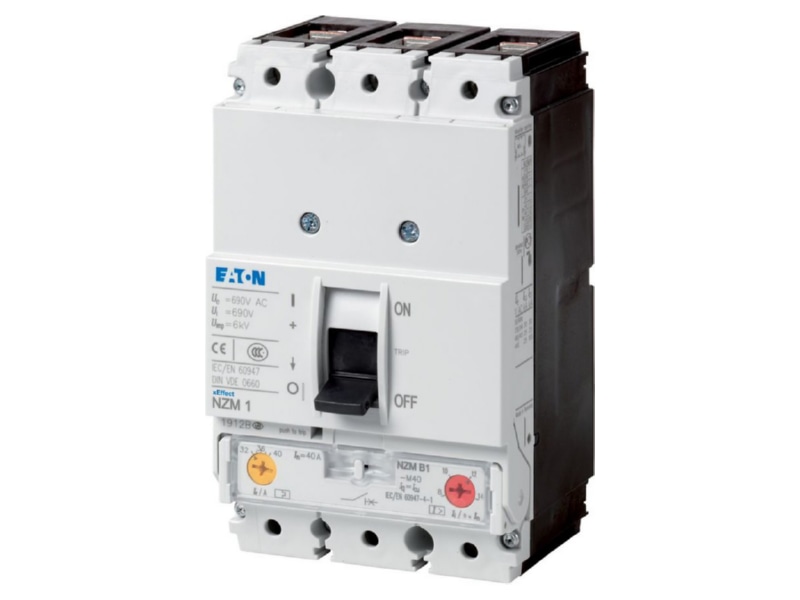

Product image Eaton NZMH1 M63 Motor protection circuit breaker 63A
Product image

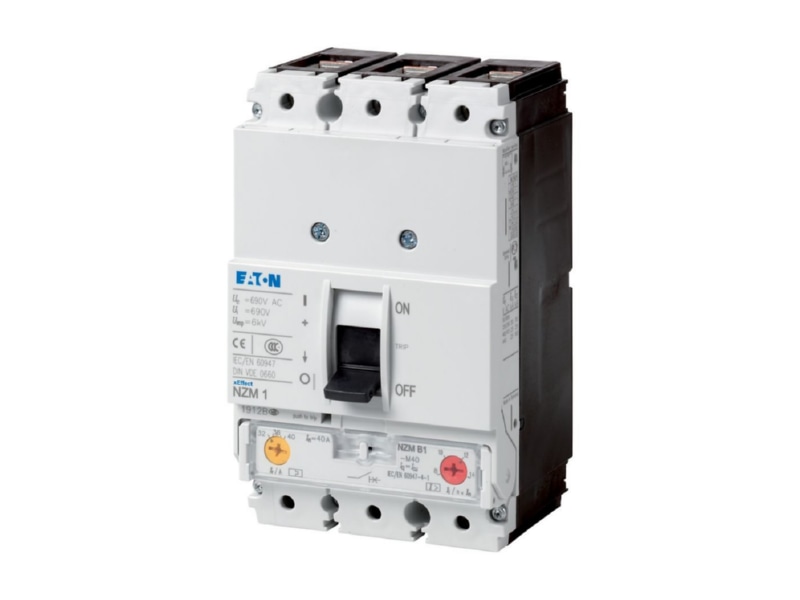

View left Eaton NZMH1 M63 Motor protection circuit breaker 63A
View left
