Magnet contactor 65A 0VAC 24...27VDC DILMC65(RDC24)
Source photo:
Eaton
(fig. might be different or similar)

Magnet contactor 65A 0VAC 24...27VDC DILMC65(RDC24)

EAN/GTIN: 4015082780395
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: DILMC65(RDC24)
Manufact.-SKU: 278039
Customs tariff no.: 85364900
Similar top items: Show now & compare
440,07 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Rated control supply voltage Us at AC 50HZ=0 V, Rated control supply voltage Us at AC 60HZ=0 V, Rated control supply voltage Us at DC=24..27 V, Voltage type for actuating=DC, Rated operation current Ie at AC-1, 400 V=98 A, Rated operation current Ie at AC-3, 400 V=65 A, Rated operation power at AC-3, 400 V=30 kW, Rated operation current Ie at AC-4, 400 V=25 A, Rated operation power at AC-4, 400 V=12 kW, Rated operation power NEMA=37 kW, Modular version=no, Type of electrical connection of main circuit=Screw connection, Number of normally open contacts as main contact=3

More product images:

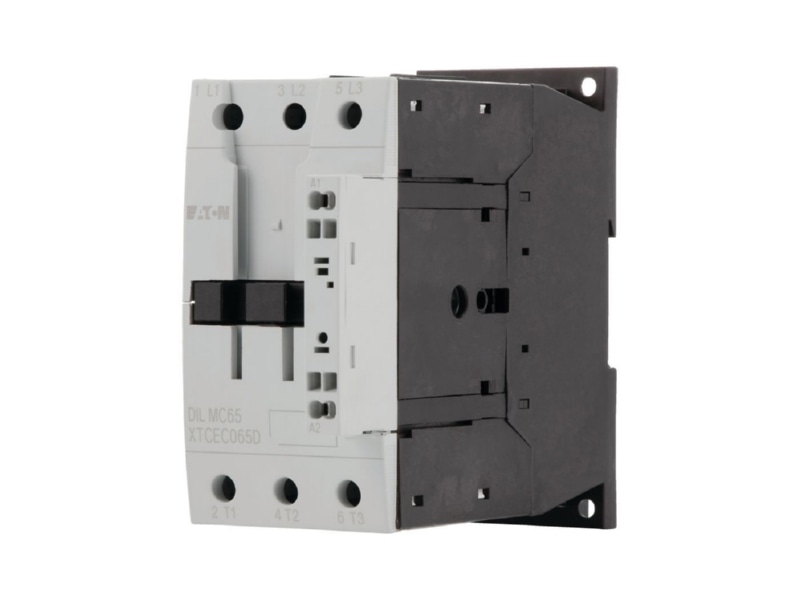

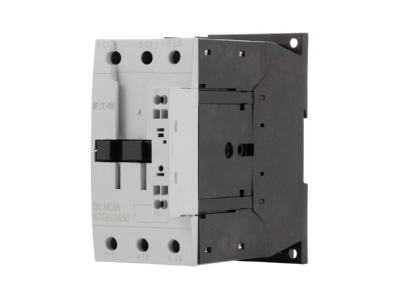

Product image Eaton DILMC65 RDC24  Magnet contactor 65A 0VAC 24   27VDC
Product image

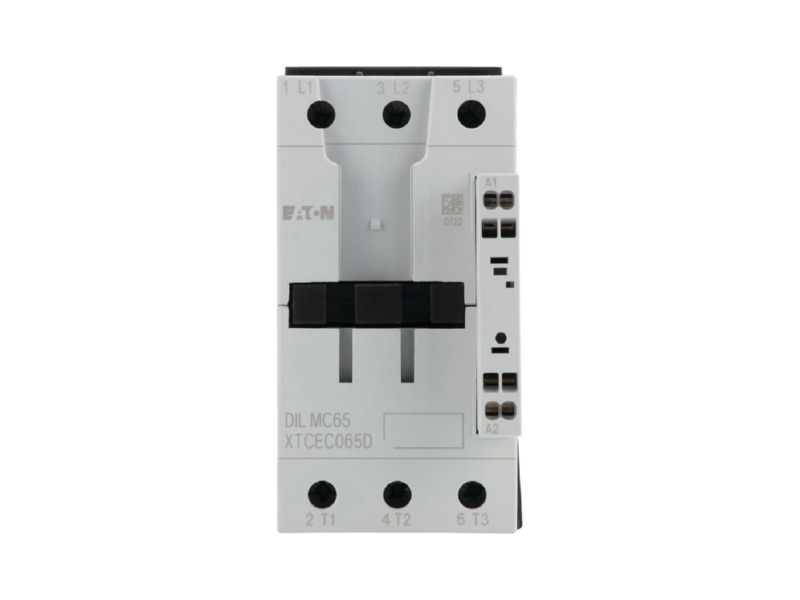

Front view 1 Eaton DILMC65 RDC24  Magnet contactor 65A 0VAC 24   27VDC
Front view 1
Front view 2 Eaton DILMC65 RDC24  Magnet contactor 65A 0VAC 24   27VDC
Front view 2

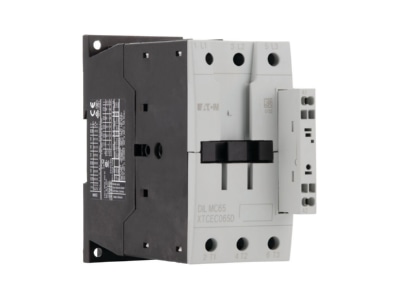

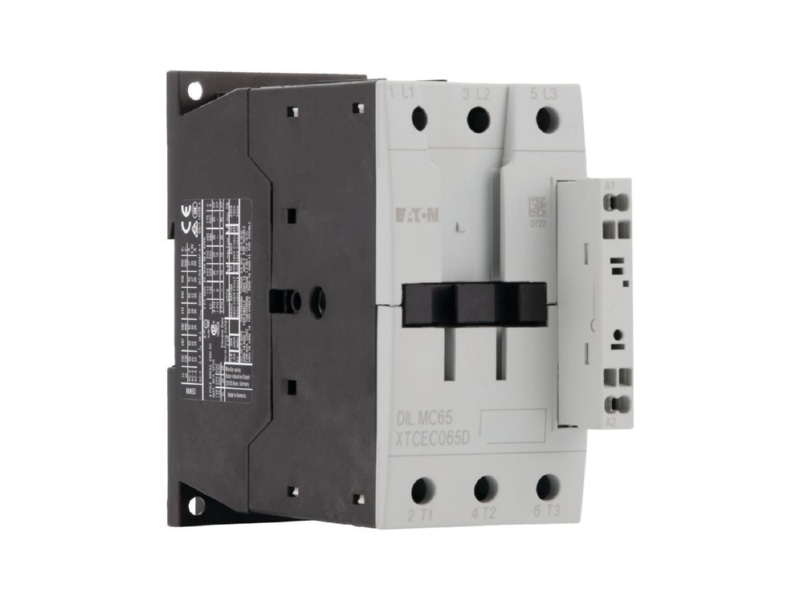

View right 1 Eaton DILMC65 RDC24  Magnet contactor 65A 0VAC 24   27VDC
