Magnet contactor 25A 230VAC 0VDC DILM25-22 106365
Source photo:
Eaton
(fig. might be different or similar)

Magnet contactor 25A 230VAC 0VDC DILM25-22 106365

EAN/GTIN: 4015081061358
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: DILM25-22 #106365
Manufact.-SKU: 106365
Customs tariff no.: 85364900
Similar top items: Show now & compare
117,68 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Rated control supply voltage Us at AC 50HZ=230 V, Rated control supply voltage Us at AC 60HZ=240 V, Rated control supply voltage Us at DC=0 V, Voltage type for actuating=AC, Rated operation current Ie at AC-1, 400 V=45 A, Rated operation current Ie at AC-3, 400 V=25 A, Rated operation power at AC-3, 400 V=11 kW, Rated operation current Ie at AC-4, 400 V=13 A, Rated operation power at AC-4, 400 V=6 kW, Rated operation power NEMA=11 kW, Modular version=no, Number of auxiliary contacts as normally open contact=2, Number of auxiliary contacts as normally closed contact=2, Type of electrical connection of main circuit=Screw connection, Number of normally open contacts as main contact=3

More product images:

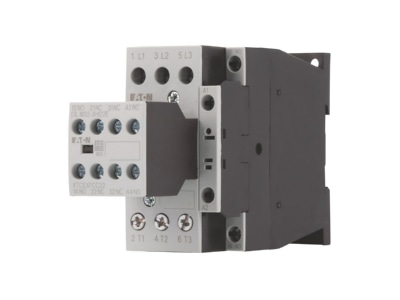

Product image Eaton DILM25 22  106365 Magnet contactor 25A 230VAC 0VDC DILM25 22 106365
Product image

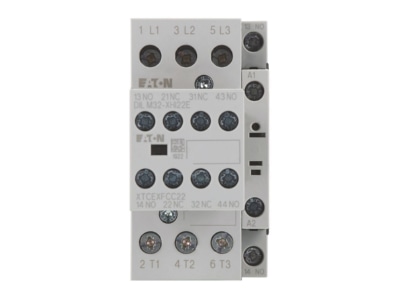

Front view 1 Eaton DILM25 22  106365 Magnet contactor 25A 230VAC 0VDC DILM25 22 106365
Front view 1
Front view 2 Eaton DILM25 22  106365 Magnet contactor 25A 230VAC 0VDC DILM25 22 106365
Front view 2

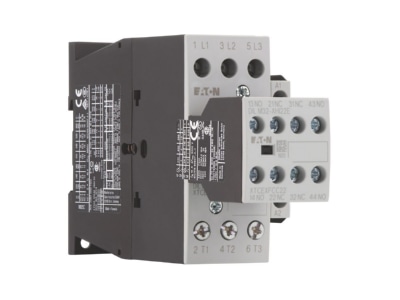

View right 1 Eaton DILM25 22  106365 Magnet contactor 25A 230VAC 0VDC DILM25 22 106365
View right 1
View right 2 Eaton DILM25 22  106365 Magnet contactor 25A 230VAC 0VDC DILM25 22 106365
View right 2
