Magnet contactor 12A 48VAC 0VDC DILMP20(48V50HZ)
Source photo:
Eaton
(fig. might be different or similar)

Magnet contactor 12A 48VAC 0VDC DILMP20(48V50HZ)

EAN/GTIN: 4015082769581
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: DILMP20(48V50HZ)
Manufact.-SKU: 276958
Customs tariff no.: 85364900
Similar top items: Show now & compare
59,24 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Rated control supply voltage Us at AC 50HZ=48 V, Rated control supply voltage Us at AC 60HZ=0 V, Rated control supply voltage Us at DC=0 V, Voltage type for actuating=AC, Rated operation current Ie at AC-1, 400 V=22 A, Rated operation current Ie at AC-3, 400 V=12 A, Rated operation power at AC-3, 400 V=5,5 kW, Rated operation current Ie at AC-4, 400 V=10 A, Rated operation power at AC-4, 400 V=4,5 kW, Rated operation power NEMA=0 kW, Modular version=no, Type of electrical connection of main circuit=Screw connection, Number of normally open contacts as main contact=4

More product images:

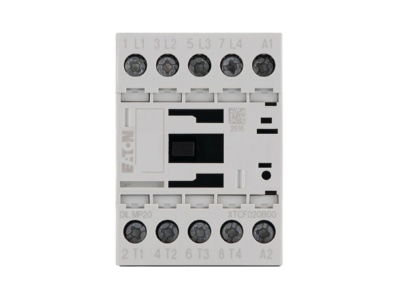

Product image Eaton DILMP20 48V50HZ  Magnet contactor 12A 48VAC 0VDC
Product image

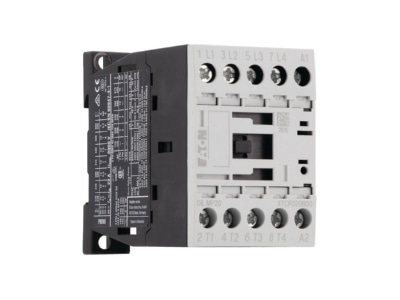

View right 1 Eaton DILMP20 48V50HZ  Magnet contactor 12A 48VAC 0VDC
View right 1
View right 2 Eaton DILMP20 48V50HZ  Magnet contactor 12A 48VAC 0VDC
View right 2
