Fieldbus digital module 2 In / 1 Out M22-ASI
Source photo:
Eaton
(fig. might be different or similar)

Fieldbus digital module 2 In / 1 Out M22-ASI

EAN/GTIN: 4015082312695
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: M22-ASI
Manufact.-SKU: 231269
Customs tariff no.: 85389099
Similar top items: Show now & compare
86,35 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Supply voltage DC=26,5..31,6 V, Number of digital inputs=2, Number of digital outputs=1, Digital inputs configurable=no, Digital outputs configurable=no, Input current at signal 1=0,005 mA, Permitted voltage at input=22 V, Output current=0,008 A, Permitted voltage at output=24 V, Short-circuit protection, outputs available=no, Number of HW-interfaces other=1, With optical interface=no, Supporting protocol for TCP/IP=no, Supporting protocol for PROFIBUS=no, Supporting protocol for CAN=no, Supporting protocol for INTERBUS=no, Supporting protocol for ASI=yes, Supporting protocol for KNX=no, Supporting protocol for MODBUS=no, Supporting protocol for Data-Highway=no, Supporting protocol for DeviceNet=no, Supporting protocol for SUCONET=no, Supporting protocol for LON=no, Supporting protocol for PROFINET IO=no, Supporting protocol for PROFINET CBA=no, Supporting protocol for SERCOS=no, Supporting protocol for Foundation Fieldbus=no, Supporting protocol for EtherNet/IP=no, Supporting protocol for AS-Interface Safety at Work=no, Supporting protocol for DeviceNet Safety=no, Supporting protocol for INTERBUS-Safety=no, Supporting protocol for PROFIsafe=no, Supporting protocol for SafetyBUS p=no, Supporting protocol for other bus systems=no, Radio standard Bluetooth=no, Radio standard Wi-Fi 802.11=no, Radio standard GPRS=no, Radio standard GSM=no, Radio standard UMTS=no, IO link master=no, System accessory=yes, Fieldbus connection over separate bus coupler possible=no, Rail mounting possible=no, Wall mounting/direct mounting=no, Front built-in possible=yes, Rack-assembly possible=no, Suitable for safety functions=no, Appendant operation agent (Ex ia)=no, Appendant operation agent (Ex ib)=no, Width=30 mm, Height=39 mm, Depth=52 mm

More product images:

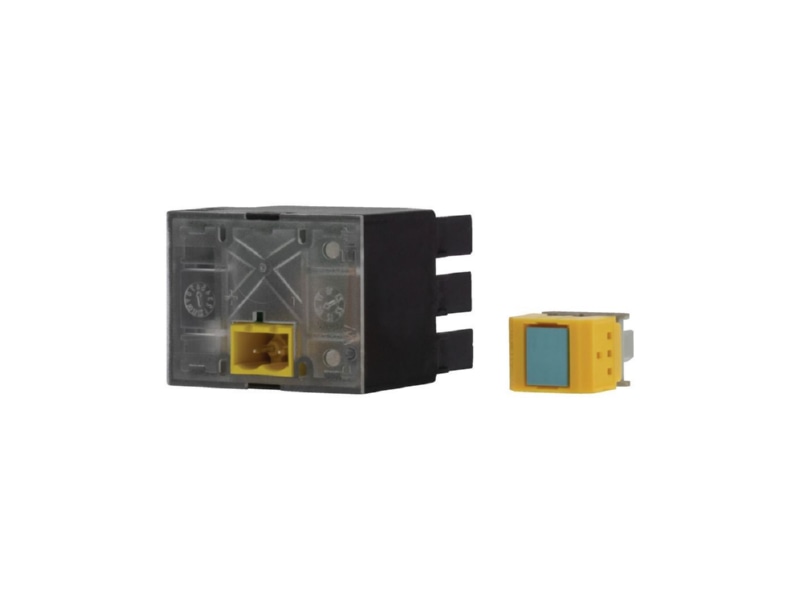

Product image Eaton M22 ASI Fieldbus digital module 2 In   1 Out
Product image

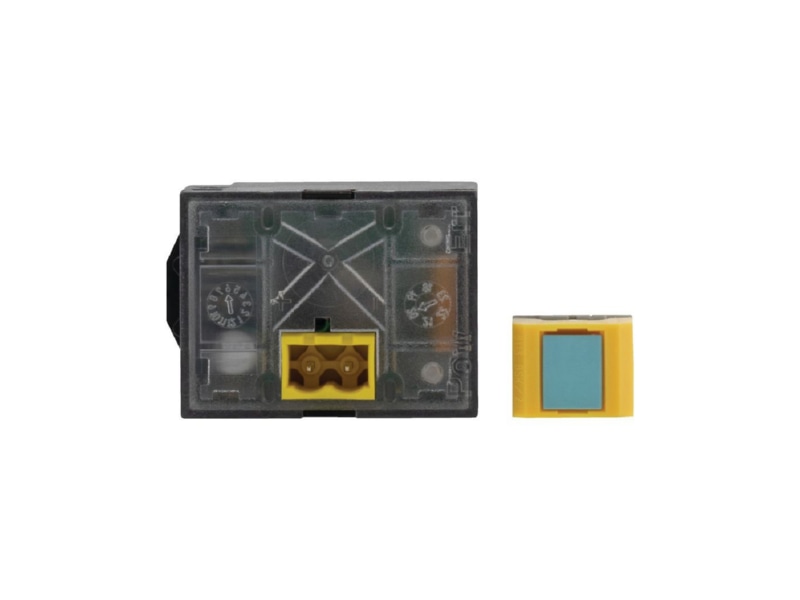

Front view 1 Eaton M22 ASI Fieldbus digital module 2 In   1 Out
Front view 1
Front view 2 Eaton M22 ASI Fieldbus digital module 2 In   1 Out
Front view 2

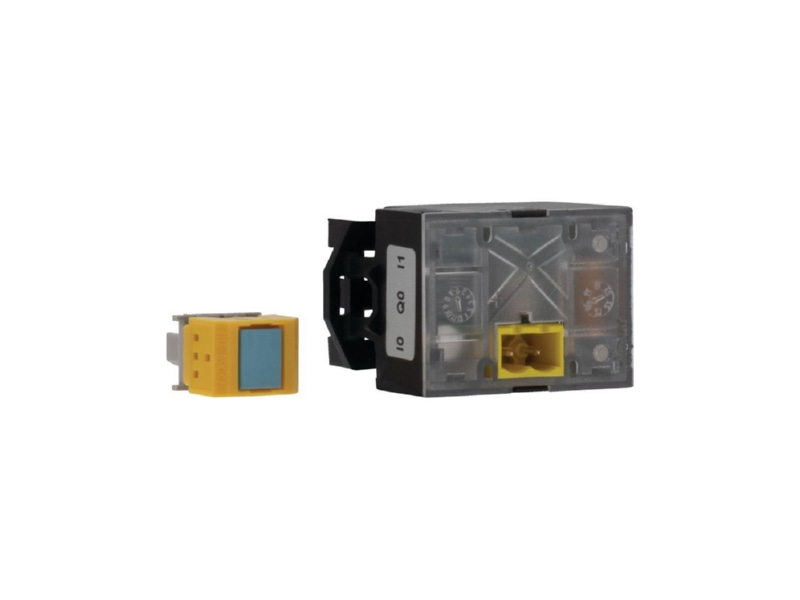

View right 1 Eaton M22 ASI Fieldbus digital module 2 In   1 Out
View right 1
View right 2 Eaton M22 ASI Fieldbus digital module 2 In   1 Out
View right 2
