Miniature circuit breaker 3-p C20A AZ-3-C20
Source photo:
Eaton
(fig. might be different or similar)

Miniature circuit breaker 3-p C20A AZ-3-C20

EAN/GTIN: 4015082117719
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: AZ-3-C20
Manufact.-SKU: 211771
Customs tariff no.: 85362010
Similar top items: Show now & compare
134,39 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Built-in depth=75 mm, Release characteristic=C, Number of poles (total)=3, Number of protected poles=1, Rated current=20 A, Rated voltage=400 V, Rated insulation voltage Ui=440 V, Rated impulse withstand voltage Uimp=4 kV, Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V=0 kA, Voltage type=AC, Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V=0 kA, Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V=25 kA, Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V=25 kA, Frequency=50..60 Hz, Current limiting class=3, Flush-mounted installation=no, Concurrently switching neutral conductor=no, Over voltage category=3, Pollution degree=2, Additional equipment possible=yes, Width in number of modular spacings=4,5, Degree of protection (IP)=IP20, Ambient temperature during operating=-25..55 °C, Connectable conductor cross section multi-wired=2,5..50 mm², Connectable conductor cross section solid-core=2,5..50 mm²

More product images:

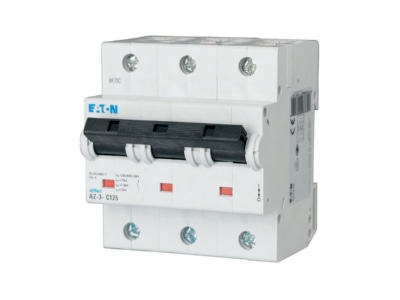

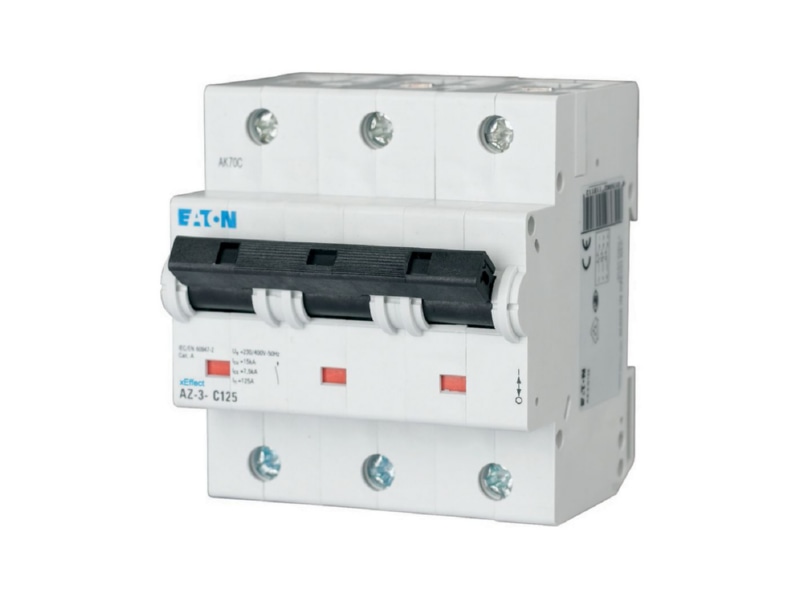

Product image Eaton AZ 3 C20 Miniature circuit breaker 3 p C20A
Product image

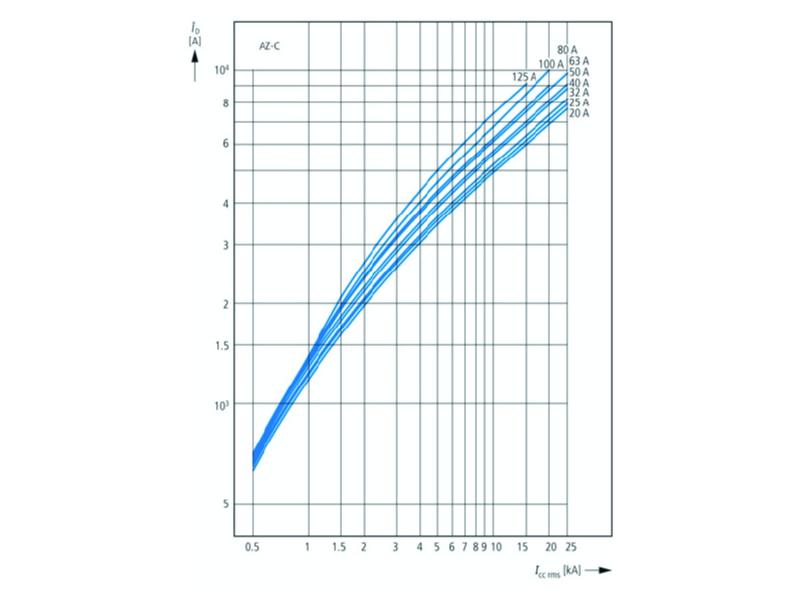

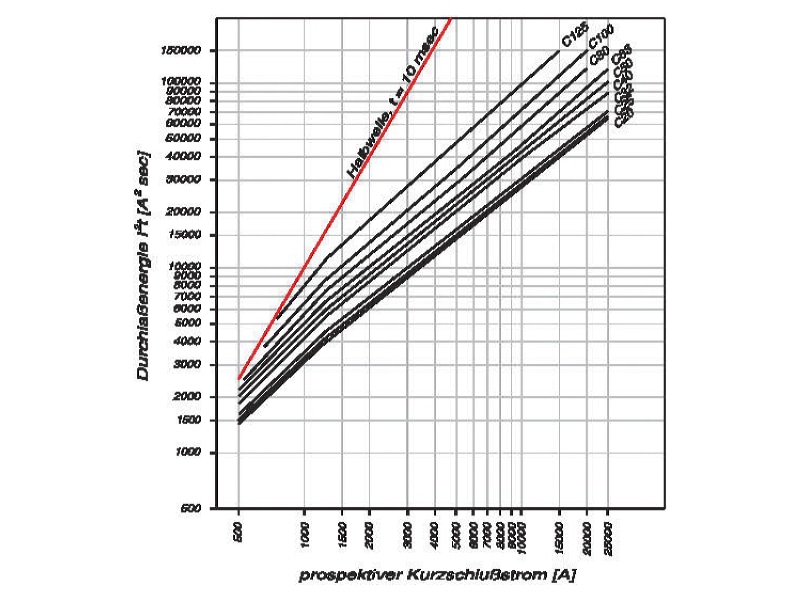

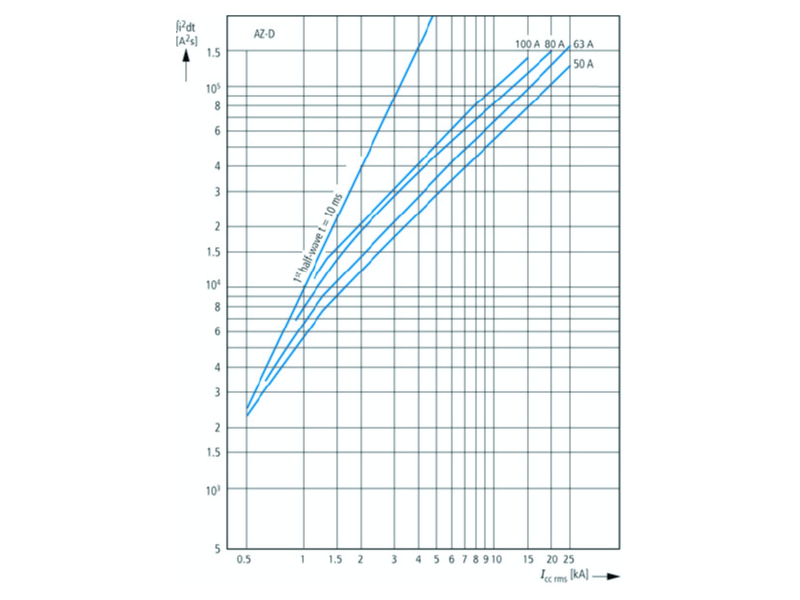

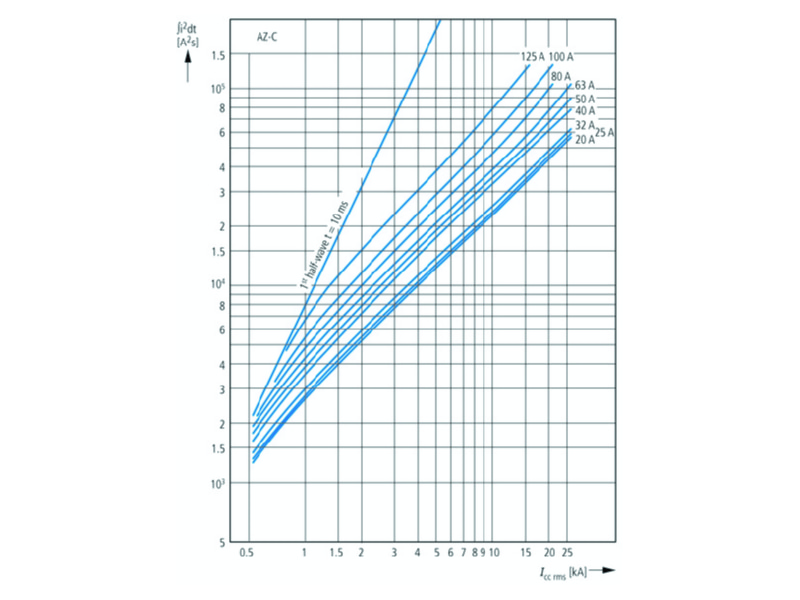

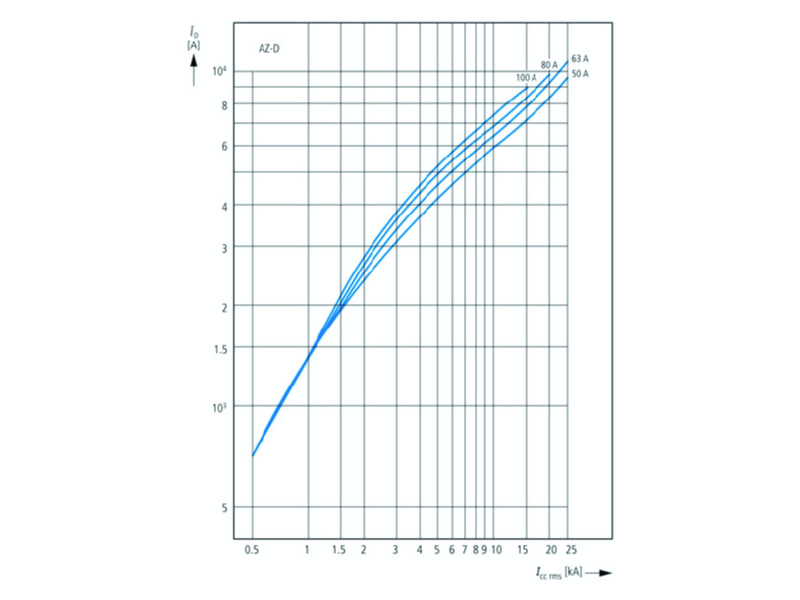

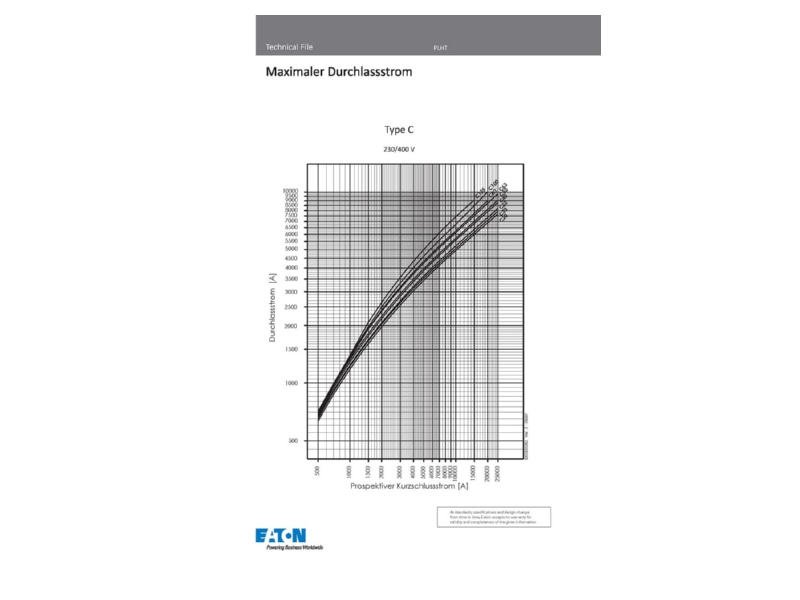

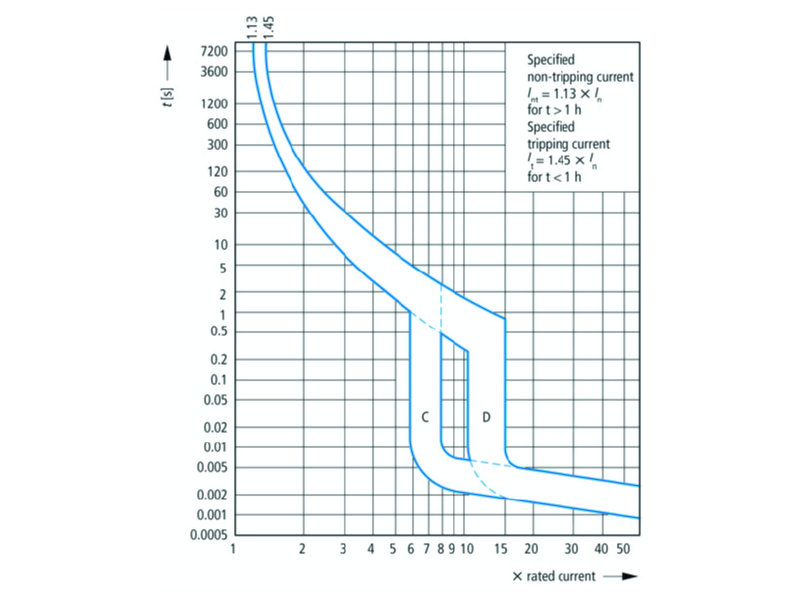

Flow chart 1 Eaton AZ 3 C20 Miniature circuit breaker 3 p C20A
Flow chart 1

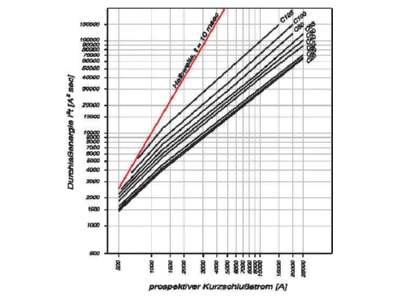

Flow chart 2 Eaton AZ 3 C20 Miniature circuit breaker 3 p C20A
Flow chart 2

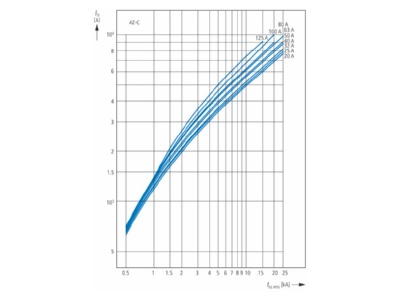

Flow chart 3 Eaton AZ 3 C20 Miniature circuit breaker 3 p C20A
Flow chart 3
Flow chart 4 Eaton AZ 3 C20 Miniature circuit breaker 3 p C20A
Flow chart 4

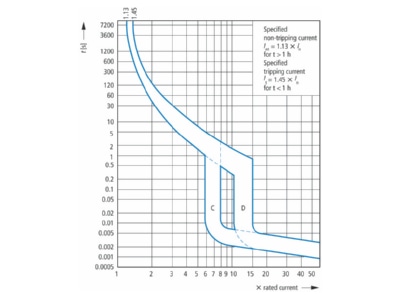

Flow chart 5 Eaton AZ 3 C20 Miniature circuit breaker 3 p C20A
Flow chart 5
Flow chart 6 Eaton AZ 3 C20 Miniature circuit breaker 3 p C20A
Flow chart 6

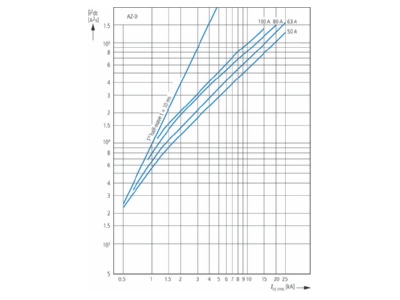

Flow chart 7 Eaton AZ 3 C20 Miniature circuit breaker 3 p C20A
Flow chart 7
