Magnet contactor 65A 230VAC 0VDC DILMS65-22191748
Source photo:
Eaton
(fig. might be different or similar)

Magnet contactor 65A 230VAC 0VDC DILMS65-22191748

EAN/GTIN: 4015081922611
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: DILMS65-22#191748
Manufact.-SKU: 191748
Customs tariff no.: 85364900
Similar top items: Show now & compare
354,43 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Magnet contactor 65A 230VAC 0VDC Rated control supply voltage Us at AC 50HZ 230 ... 230V, Rated control supply voltage Us at AC 60HZ 240 ... 240V, Rated control supply voltage Us at DC 0V, Voltage type for actuating AC, Rated operation current Ie at AC-1, 400 V 98A, Rated operation current Ie at AC-3, 400 V 65A, Rated operation power at AC-3, 400 V 30kW, Rated operation current Ie at AC-4, 400 V 25A, Rated operation power at AC-4, 400 V 12kW, Rated operation power NEMA 37kW, Number of auxiliary contacts as normally open contact 2, Number of auxiliary contacts as normally closed contact 2, Type of electrical connection of main circuit Screw connection, Number of normally closed contacts as main contact 0, Number of normally open contacts as main contact 3

More product images:

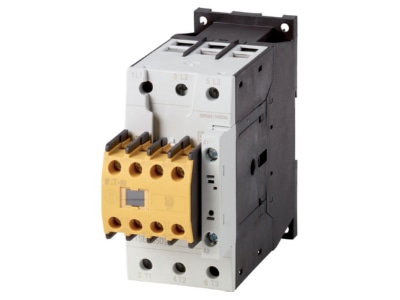

Product image Eaton DILMS65 22 191748 Magnet contactor 65A 230VAC 0VDC DILMS65 22191748
Product image

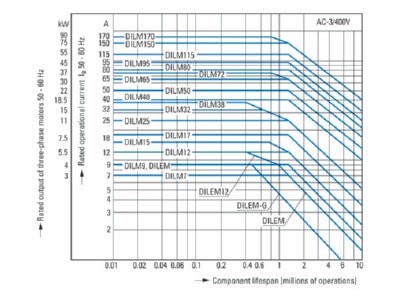

Flow chart 1 Eaton DILMS65 22 191748 Magnet contactor 65A 230VAC 0VDC DILMS65 22191748
Flow chart 1

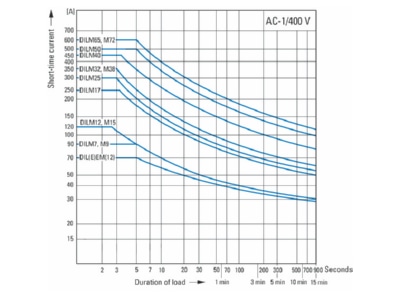

Flow chart 2 Eaton DILMS65 22 191748 Magnet contactor 65A 230VAC 0VDC DILMS65 22191748
Flow chart 2

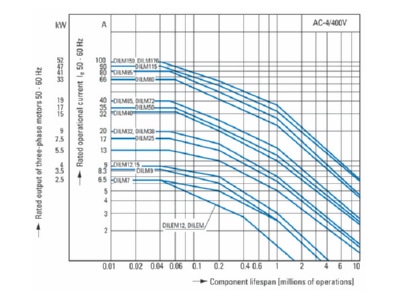

Flow chart 3 Eaton DILMS65 22 191748 Magnet contactor 65A 230VAC 0VDC DILMS65 22191748
Flow chart 3

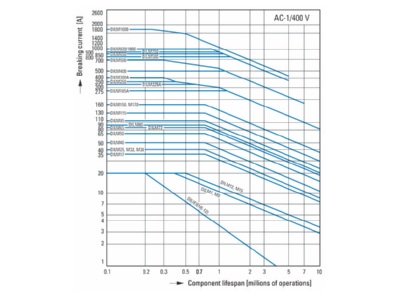

Flow chart 4 Eaton DILMS65 22 191748 Magnet contactor 65A 230VAC 0VDC DILMS65 22191748
Flow chart 4
