Magnet contactor 65A 0VAC 24VDC DILMS65-22(RDC24)
Source photo:
Eaton
(fig. might be different or similar)

Magnet contactor 65A 0VAC 24VDC DILMS65-22(RDC24)

EAN/GTIN: 4015081922284
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: DILMS65-22(RDC24)
Manufact.-SKU: 191715
Customs tariff no.: 85364900
Similar top items: Show now & compare
494,55 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Magnet contactor 65A 0VAC 24VDC Rated control supply voltage Us at AC 50HZ 0V, Rated control supply voltage Us at AC 60HZ 0V, Rated control supply voltage Us at DC 24 ... 24V, Voltage type for actuating DC, Rated operation current Ie at AC-1, 400 V 98A, Rated operation current Ie at AC-3, 400 V 65A, Rated operation power at AC-3, 400 V 30kW, Rated operation current Ie at AC-4, 400 V 25A, Rated operation power at AC-4, 400 V 12kW, Rated operation power NEMA 37kW, Number of auxiliary contacts as normally open contact 2, Number of auxiliary contacts as normally closed contact 2, Type of electrical connection of main circuit Screw connection, Number of normally closed contacts as main contact 0, Number of normally open contacts as main contact 3

More product images:

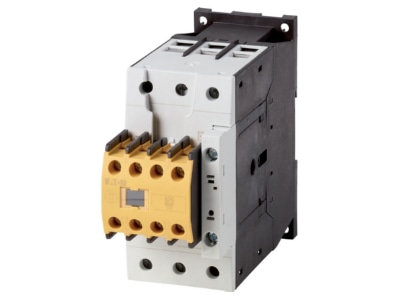

Product image Eaton DILMS65 22 RDC24  Magnet contactor 65A 0VAC 24VDC
Product image

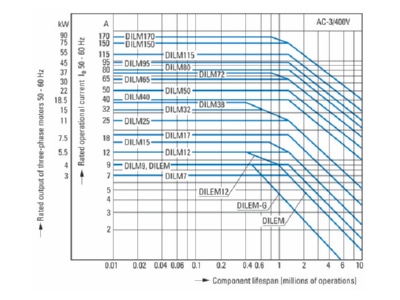

Flow chart 1 Eaton DILMS65 22 RDC24  Magnet contactor 65A 0VAC 24VDC
Flow chart 1

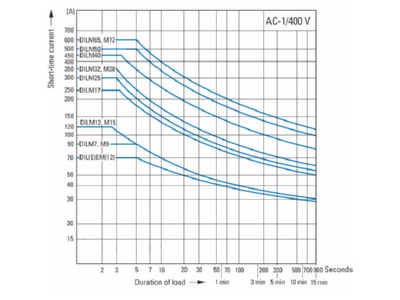

Flow chart 2 Eaton DILMS65 22 RDC24  Magnet contactor 65A 0VAC 24VDC
Flow chart 2

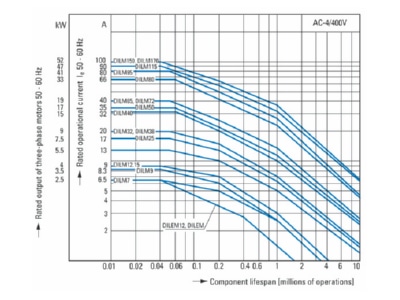

Flow chart 3 Eaton DILMS65 22 RDC24  Magnet contactor 65A 0VAC 24VDC
Flow chart 3

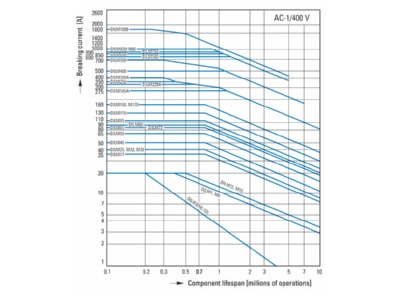

Flow chart 4 Eaton DILMS65 22 RDC24  Magnet contactor 65A 0VAC 24VDC
Flow chart 4
