Magnet contactor 115A 0VAC 24...27VDC DILMP200(RDC24)
Source photo:
Eaton
(fig. might be different or similar)

Magnet contactor 115A 0VAC 24...27VDC DILMP200(RDC24)

EAN/GTIN: 4015081094967
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: DILMP200(RDC24)
Manufact.-SKU: 109930
Customs tariff no.: 85364900
Similar top items: Show now & compare
923,74 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Rated control supply voltage Us at AC 50HZ=0 V, Rated control supply voltage Us at AC 60HZ=0 V, Rated control supply voltage Us at DC=24..27 V, Voltage type for actuating=DC, Rated operation current Ie at AC-1, 400 V=200 A, Rated operation current Ie at AC-3, 400 V=115 A, Rated operation power at AC-3, 400 V=55 kW, Rated operation current Ie at AC-4, 400 V=136 A, Rated operation power at AC-4, 400 V=75 kW, Rated operation power NEMA=93 kW, Modular version=no, Type of electrical connection of main circuit=Screw connection, Number of normally open contacts as main contact=4

More product images:

Product image Eaton DILMP200 RDC24  Magnet contactor 115A 0VAC 24   27VDC
Product image

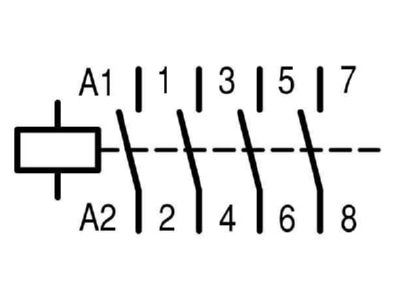

Circuit diagram Eaton DILMP200 RDC24  Magnet contactor 115A 0VAC 24   27VDC
Circuit diagram

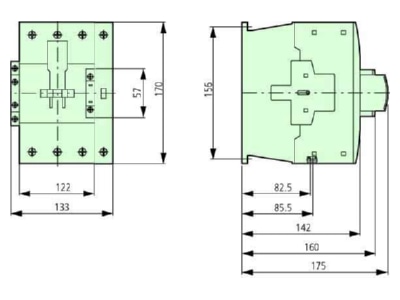

Dimensional drawing 1 Eaton DILMP200 RDC24  Magnet contactor 115A 0VAC 24   27VDC
Dimensional drawing 1
Dimensional drawing 2 Eaton DILMP200 RDC24  Magnet contactor 115A 0VAC 24   27VDC
Dimensional drawing 2
