End switch IP65 LS-S11-24DMT-ZBZ/X
Source photo:
Eaton
(fig. might be different or similar)

End switch IP65 LS-S11-24DMT-ZBZ/X

EAN/GTIN: 4015081065905
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: LS-S11-24DMT-ZBZ/X
Manufact.-SKU: 106830
Customs tariff no.: 85365080
Similar top items: Show now & compare
213,78 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Width sensor=60 mm, Diameter sensor=0 mm, Height of sensor=173 mm, Length of sensor=39 mm, Rated operation current Ie at AC-15, 24 V=6 A, Rated operation current Ie at AC-15, 125 V=6 A, Rated operation current Ie at AC-15, 230 V=6 A, Rated operation current Ie at DC-13, 24 V=3 A, Rated operation current Ie at DC-13, 125 V=0,8 A, Rated operation current Ie at DC-13, 230 V=0,3 A, Switching function=Slow-action switch, Switching function latching=no, Output electronic=no, Forced opening=yes, Number of safety auxiliary contacts=1, Number of contacts as normally closed contact=1, Number of contacts as normally open contact=1, Type of interface=None, Type of interface for safety communication=None, Construction type housing=Cuboid, Material housing=Plastic, Coating housing=Other, Type of control element=Other, Alignment of the control element=Other, Type of electric connection=Other, With status indication=no, Suitable for safety functions=yes, Explosion safety category for gas=None, Explosion safety category for dust=None, Ambient temperature during operating=25..70 °C, Degree of protection (IP)=IP65, Degree of protection (NEMA)=13

More product images:

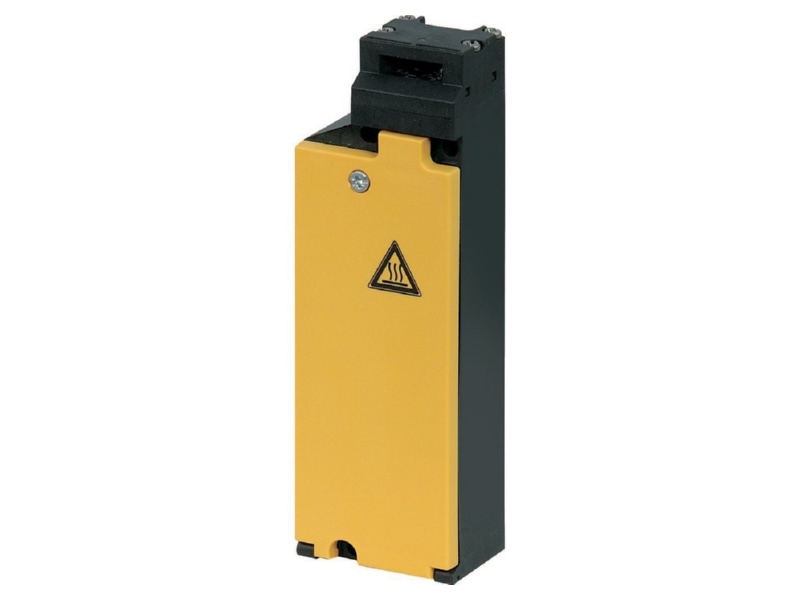

Product image Eaton LS S11 24DMT ZBZ X End switch IP65
Product image

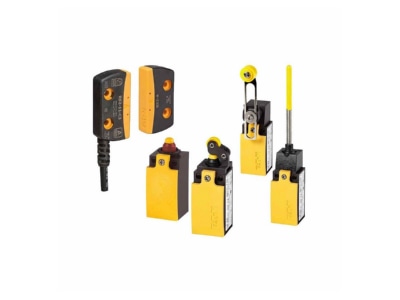

View left Eaton LS S11 24DMT ZBZ X End switch IP65
View left
