Earth leakage circuit breaker C25/0,3A PXK-C25/1N/03-F
Source photo:
Eaton
(fig. might be different or similar)

Earth leakage circuit breaker C25/0,3A PXK-C25/1N/03-F

EAN/GTIN: 9010238026346
WEEE: DE 92318050
Manufacturer: Eaton
Manufacturer no.: PXK-C25/1N/03-F
Manufact.-SKU: 193554
Customs tariff no.: 85362010
Similar top items: Show now & compare
148,39 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Number of poles (total) 2, Number of protected poles 1, Rated voltage 230V, Rated insulation voltage Ui 440V, Rated impulse withstand voltage Uimp 4kV, Rated current 25A, Rated fault current 0,3A, Leakage current type A, Current limiting class 3, Rated short-circuit breaking capacity acc. EN 61009 10kA, Rated short-circuit breaking capacity IEC 60947-2 0kA, Rated short-circuit breaking capacity Icn acc. EN 61009-1 10kA, Surge current capacity 3kA, Voltage type AC, Frequency 50 Hz, Release characteristic C, Concurrently switching N-neutral, Over voltage category 3, Pollution degree 2, Ambient temperature during operating -25 ... 40°C, Width in number of modular spacings 2, Built-in depth 75,5mm, Anti-nuisance tripping version, Degree of protection (IP) IP20, Connectable conductor cross section solid-core 1 ... 25mm², Connectable conductor cross section multi-wired 1 ... 25mm²

More product images:

Product image Eaton PXK C25 1N 03 F Earth leakage circuit breaker C25 0 3A
Product image

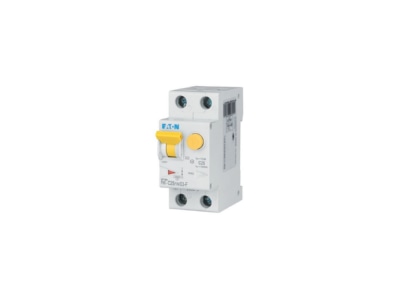

View left Eaton PXK C25 1N 03 F Earth leakage circuit breaker C25 0 3A
View left

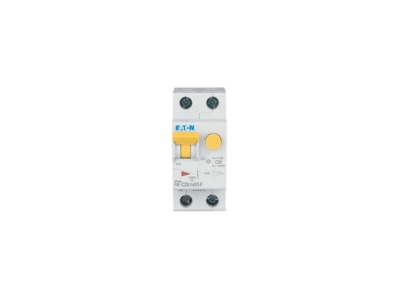

Front view Eaton PXK C25 1N 03 F Earth leakage circuit breaker C25 0 3A
Front view

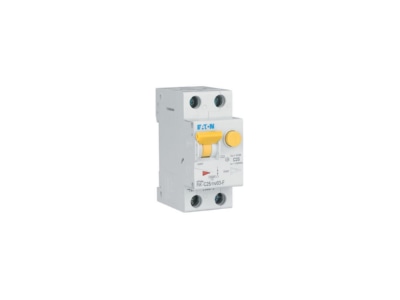

View right Eaton PXK C25 1N 03 F Earth leakage circuit breaker C25 0 3A
View right
