LED-module 1,32W 12V white - LED module 10-chain 6500K IP67, LCS10110
Source photo:
EVN
(fig. might be different or similar)

LED-module 1,32W 12V white - LED module 10-chain 6500K IP67, LCS10110

EAN/GTIN: 4037293017060
WEEE: DE 63351424
Manufacturer: EVN
Manufacturer no.: LCS10110
Customs tariff no.: 85395100
Similar top items: Show now & compare
35,76 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Suitable for constant current=no, Lamp power=1,32 W, Suitable for constant voltage=yes, Voltage type=DC, External driver required=yes, Operating voltage=12 V, Lamp voltage=12 V, Number of LEDs=1, Shape=Rectangular, Colour=White, Colour of light according to EN 12464-1=Daylight white >5300 K, Flexible=no, Colour temperature=6500 K, Luminous intensity=14 cd, Luminous flux=100 lm, Specific luminous efficacy=75 lm/W, Beam angle=10..65 °, Connection type=Other, Suitable for general lighting=yes, Suitable for traffic lights=no, Suitable for variable road signs=no, Suitable for rail traffic=no, Suitable for matrix information boards=no, Length=44 mm, Width=22,5 mm, Height=12,5 mm, Degree of protection (IP)=IP67, Average nominal lifespan=50000 h, Compatible with Apple HomeKit=no, Compatible with Google Assistant=no, Compatible with Amazon Alexa=no, IFTTT support available=no

More product images:

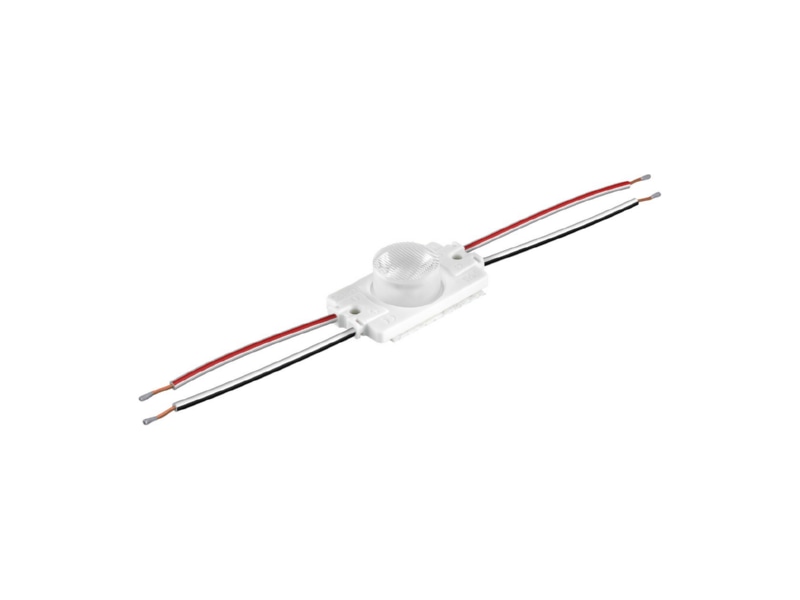

Product image EVN LCS10110 LED module 1 32W 12V white   LED module 10 chain 6500K IP67
Product image

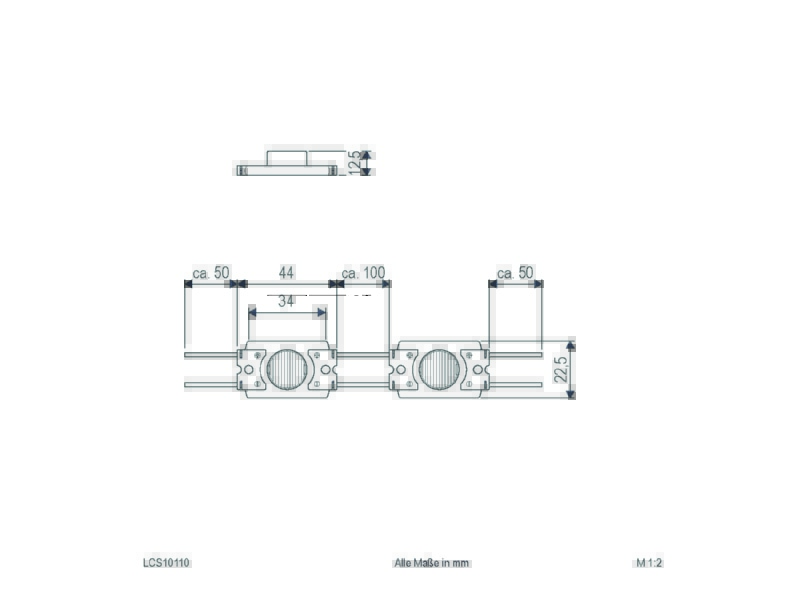

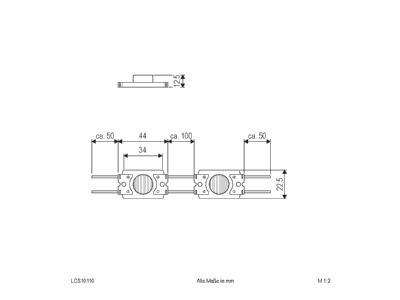

Dimensional drawing EVN LCS10110 LED module 1 32W 12V white   LED module 10 chain 6500K IP67
Dimensional drawing

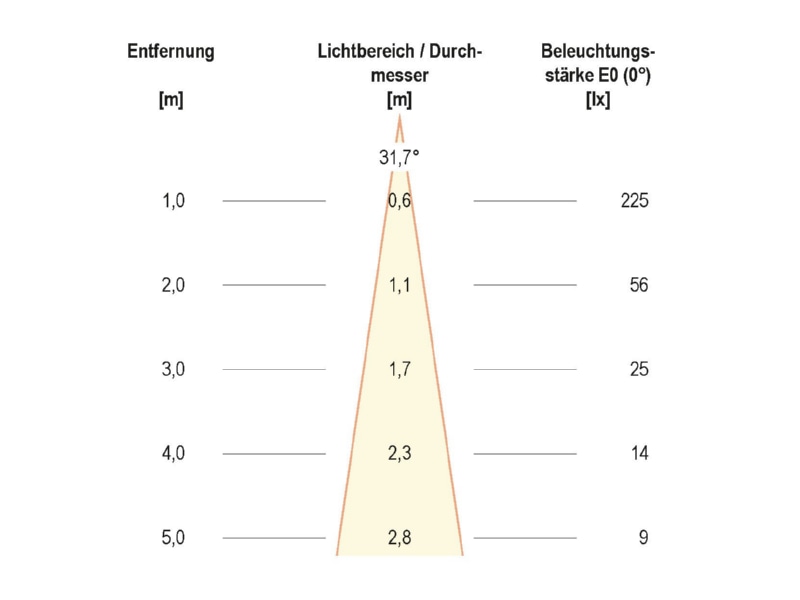

Cone diagram EVN LCS10110 LED module 1 32W 12V white   LED module 10 chain 6500K IP67
Cone diagram
