Source photo: www.EIB3D.com

Light ribbon-/hose/-strip 24V RGB ICSB2024305099

EAN/GTIN: 4037293022934
WEEE: DE 63351424
Manufacturer: EVN
Manufacturer no.: ICSB2024305099
Customs tariff no.: 85395100
Similar top items: Show now & compare
212,72 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Model=Strip, Mounting method=Surface mounting/recessed mounting, Lamp type=LED not exchangeable, Number of nodes per meter=60, Lamp power per meter=13 W, Luminous flux per meter=455 lm, Voltage type=DC, Lamp voltage=24 V, Beam angle=120 °, Type of control gear=LED operating device voltage-controlled, Suitable for dimmer=yes, Exchangeable control gear=no, Energy efficiency class of the light source according to EU regulation 2019/2015=Not required, Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)=30 %, Degree of protection (IP)=IP20, Protection class=III, Colour of light=RGB, Constant light output (CLO)=no, Colour of light adjustable=No, Beam angle adjustable=No, Width=12 mm, Height/depth=2 mm, Length=5000 mm, Length of particular segments=100 mm, With end piece=no, With connection set=no, With protective cover=no, Self-adhesive=yes, Number of poles=4, Connection type=Solder, Compatible with Apple HomeKit=no, Compatible with Google Assistant=no, Compatible with Amazon Alexa=no, IFTTT support available=no

More product images:

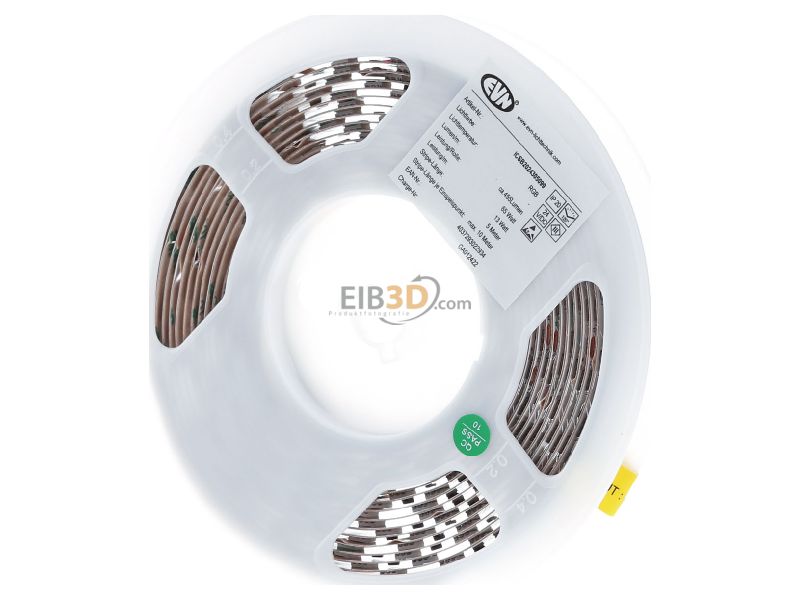

Front view EVN ICSB2024305099 Light ribbon-/hose/-strip 24V RGB
Front view

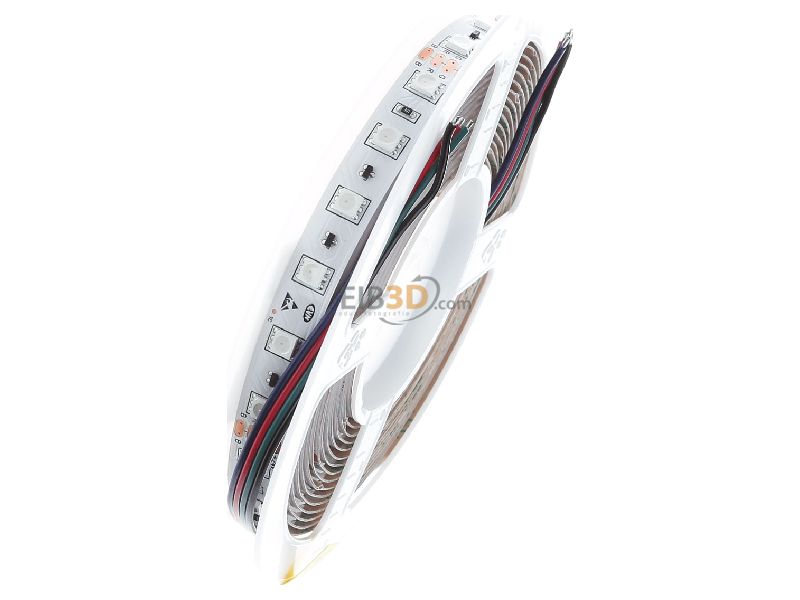

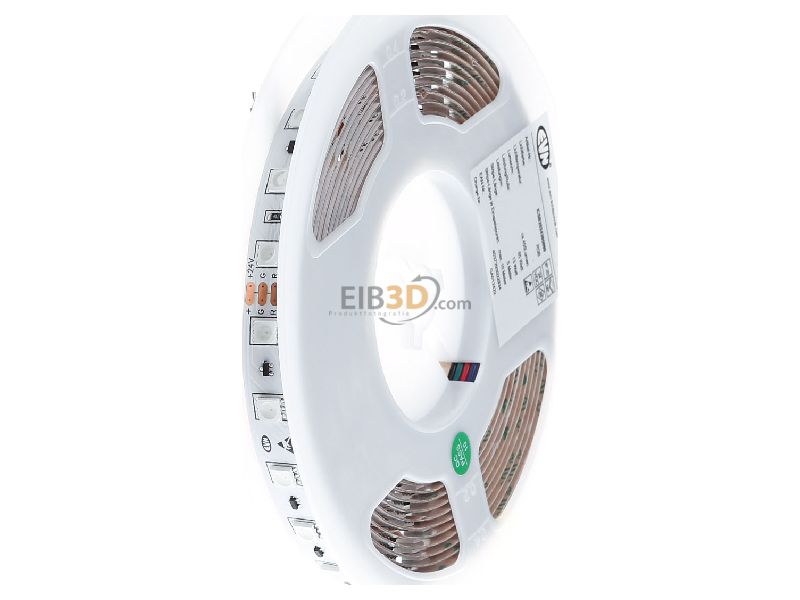

View on the left EVN ICSB2024305099 Light ribbon-/hose/-strip 24V RGB
View on the left

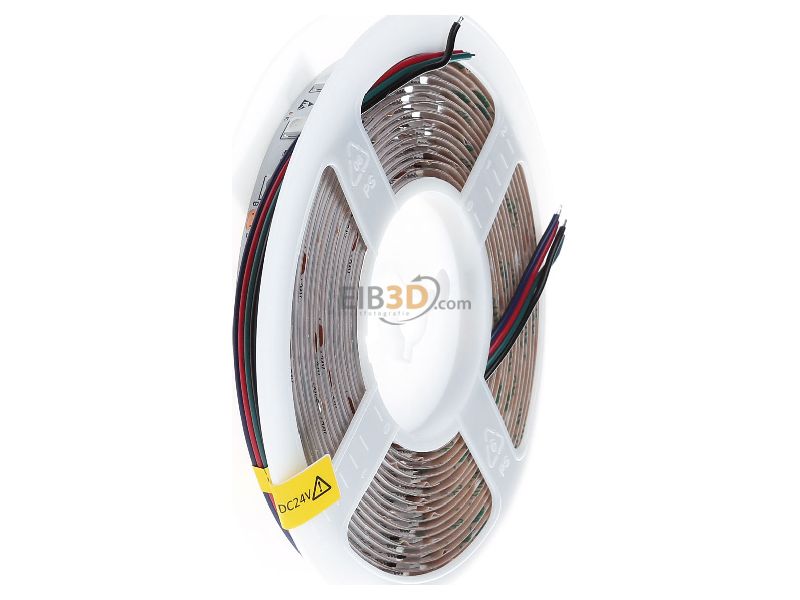

View on the right EVN ICSB2024305099 Light ribbon-/hose/-strip 24V RGB
View on the right

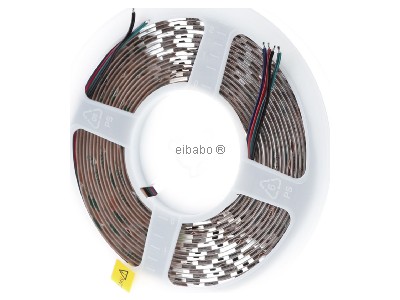

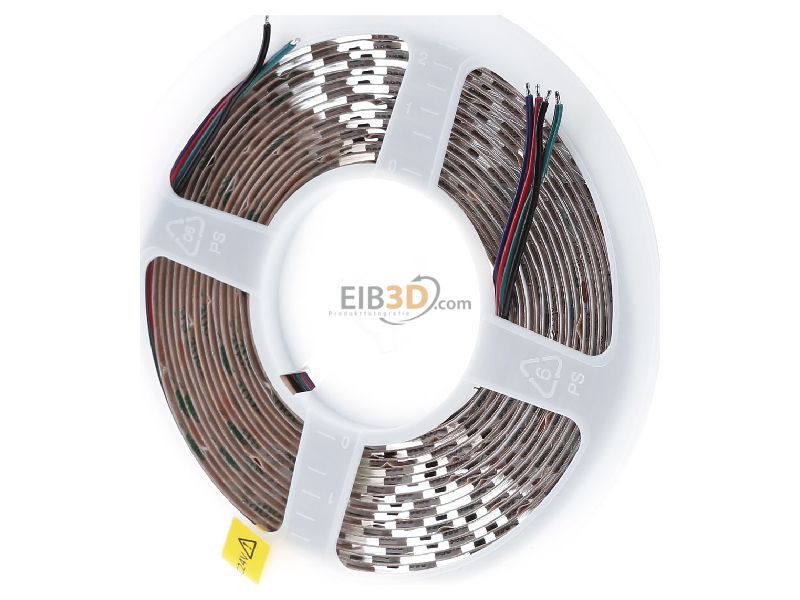

Back view EVN ICSB2024305099 Light ribbon-/hose/-strip 24V RGB
Back view

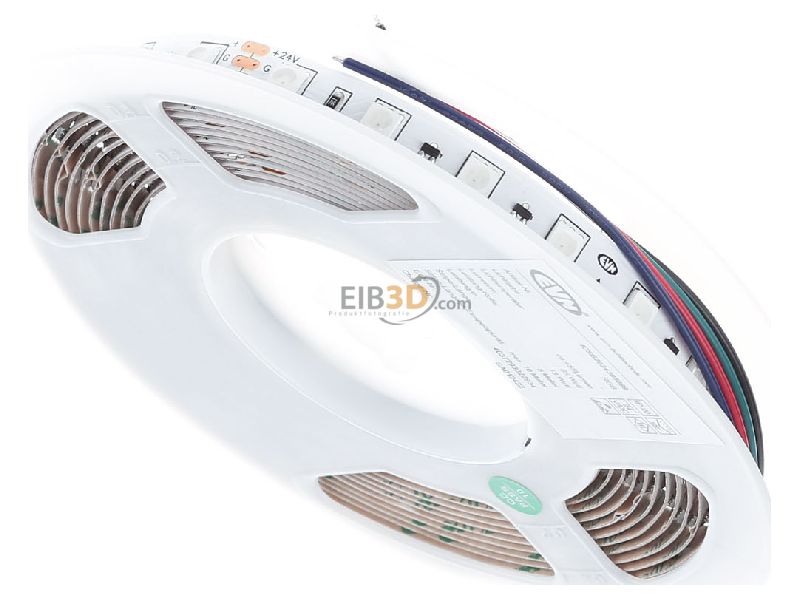

View up front EVN ICSB2024305099 Light ribbon-/hose/-strip 24V RGB
View up front

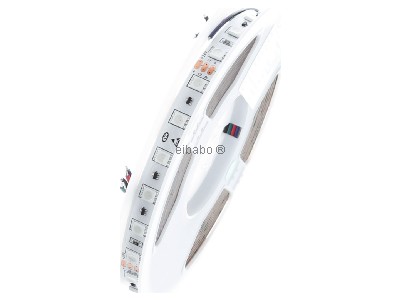

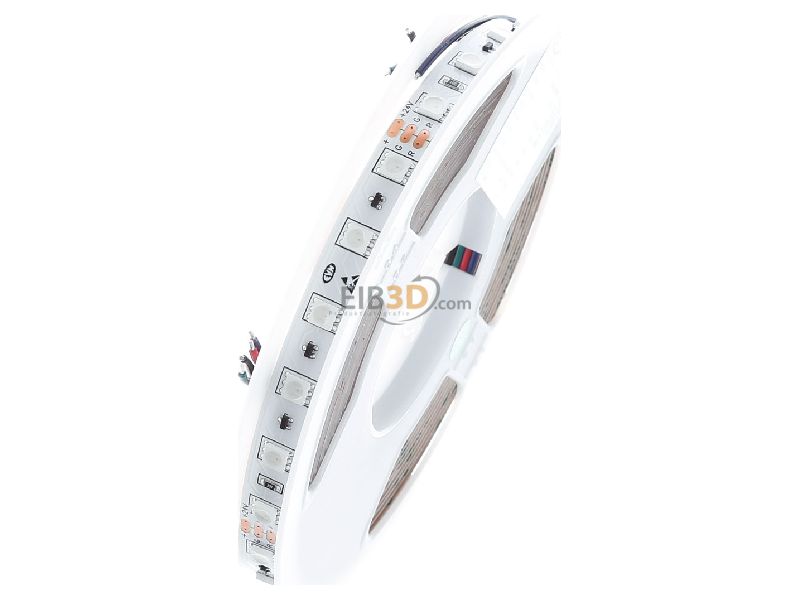

View top left EVN ICSB2024305099 Light ribbon-/hose/-strip 24V RGB
View top left
View top right EVN ICSB2024305099 Light ribbon-/hose/-strip 24V RGB
View top right

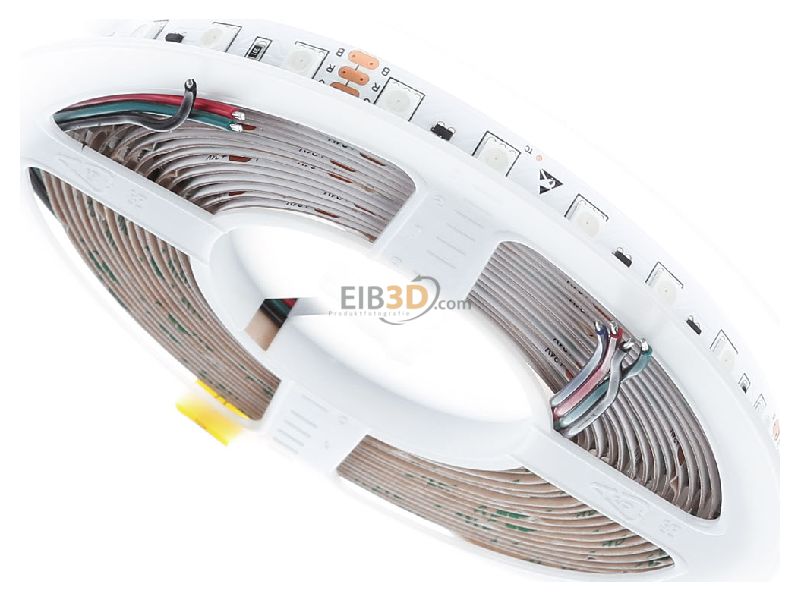

Top rear view EVN ICSB2024305099 Light ribbon-/hose/-strip 24V RGB
Top rear view

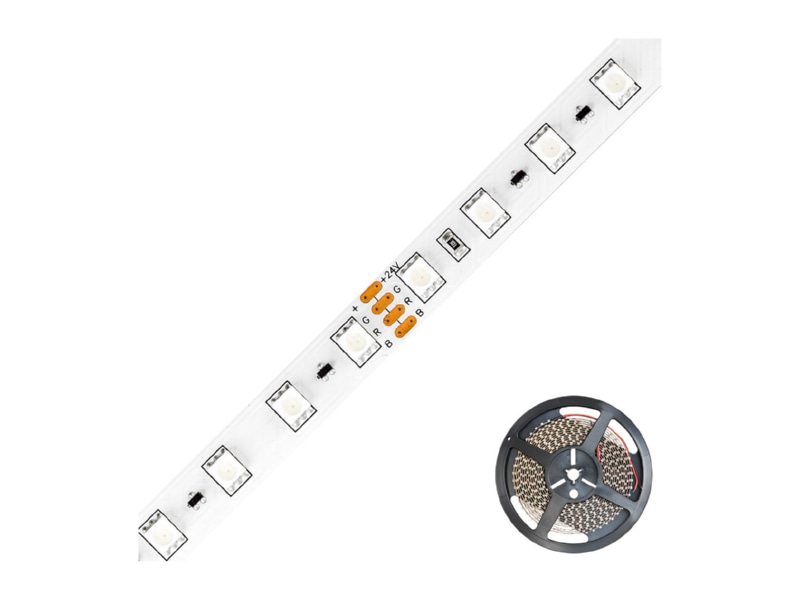

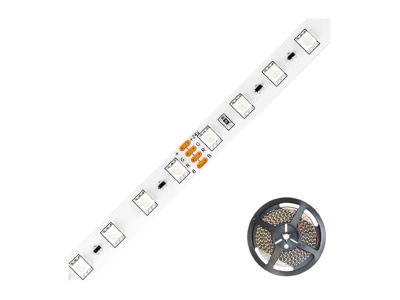

Product image EVN ICSB2024305099 Light ribbon  hose  strip 24V RGB
Product image

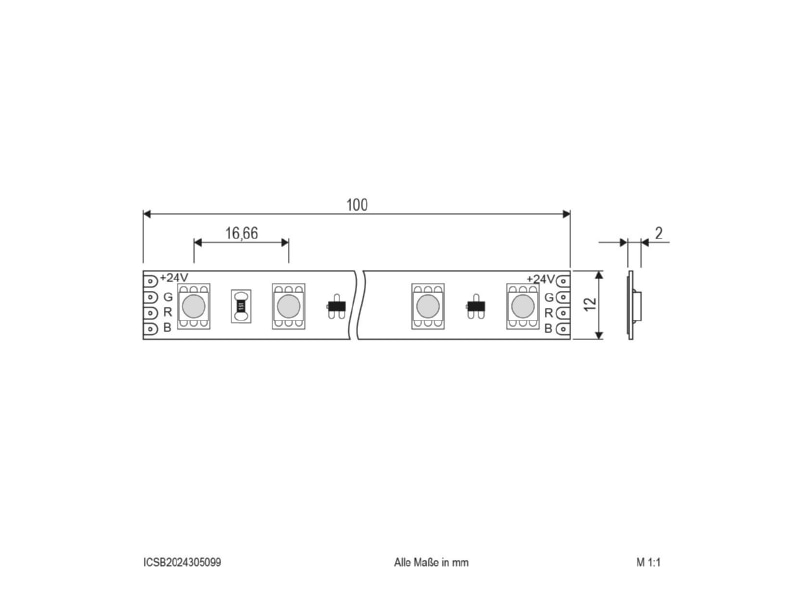

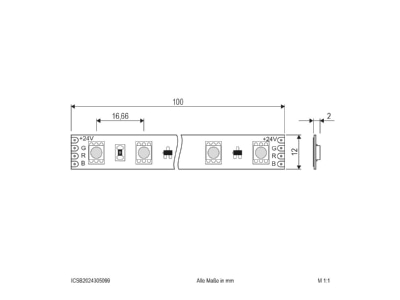

Dimensional drawing EVN ICSB2024305099 Light ribbon  hose  strip 24V RGB
Dimensional drawing

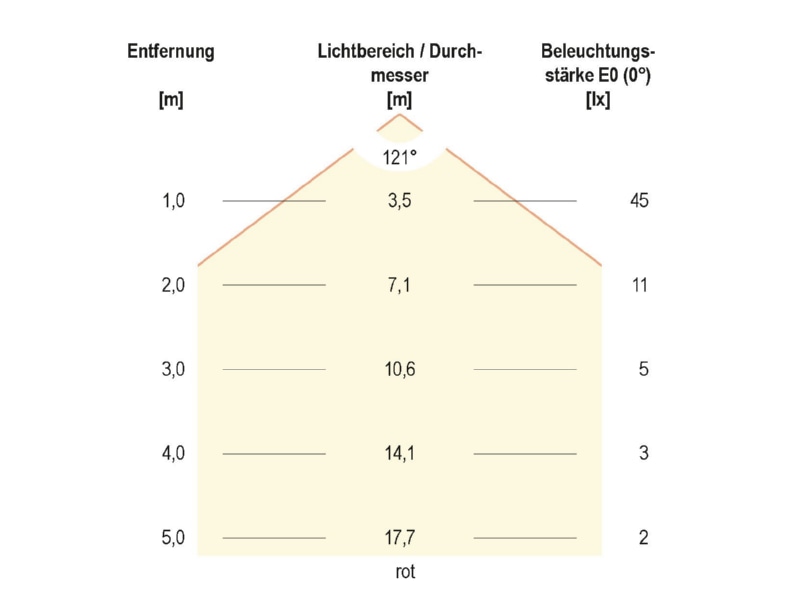

Cone diagram 1 EVN ICSB2024305099 Light ribbon  hose  strip 24V RGB
Cone diagram 1
Cone diagram 2 EVN ICSB2024305099 Light ribbon  hose  strip 24V RGB
Cone diagram 2
Cone diagram 3 EVN ICSB2024305099 Light ribbon  hose  strip 24V RGB
Cone diagram 3
Cone diagram 4 EVN ICSB2024305099 Light ribbon  hose  strip 24V RGB
Cone diagram 4
