Downlight/spot/floodlight LF6536159902
Source photo:
EVN
(fig. might be different or similar)

Downlight/spot/floodlight LF6536159902

EAN/GTIN: 4037293028134
WEEE: DE 63351424
Manufacturer: EVN
Manufacturer no.: LF6536159902
Customs tariff no.: 94054239
Similar top items: Show now & compare
284,34 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Downlight/spot/floodlight Energy efficiency class of the light source not relevant, Suitable for surface mounting, Suitable for wall mounting, Suitable for ceiling mounting, Suitable for pedestal/floor mounting, Adjustability Rotating and swivelling, Lamp type LED not exchangeable, With light source, Material housing Aluminium, Surface protection Powder coating, Colour housing Anthracite, Material cover Glass transparent, Voltage type DC, Nominal voltage 24 ... 24V, Type of control gear LED operating device voltage-controlled, Dimming depending on control gear, Reflector None, Light distributor Focal lens, Light sharing Symmetric, Beam angle Medium beam 21-40°, Light outlet Direct, Degree of protection (IP) IP65, Impact strength IK06, Protection class III, Max. system power 36W, Colour of light RGBW, Colour temperature 3000 ... 3000K, Luminous flux 367 ... 1188lm, Colour temperature adjustable No, Beam angle adjustable No, Width 230mm, Height/depth 250mm, Length 110mm, Outer diameter 205mm, Number of poles 5, Conductor cross section 0,05mm²

More product images:

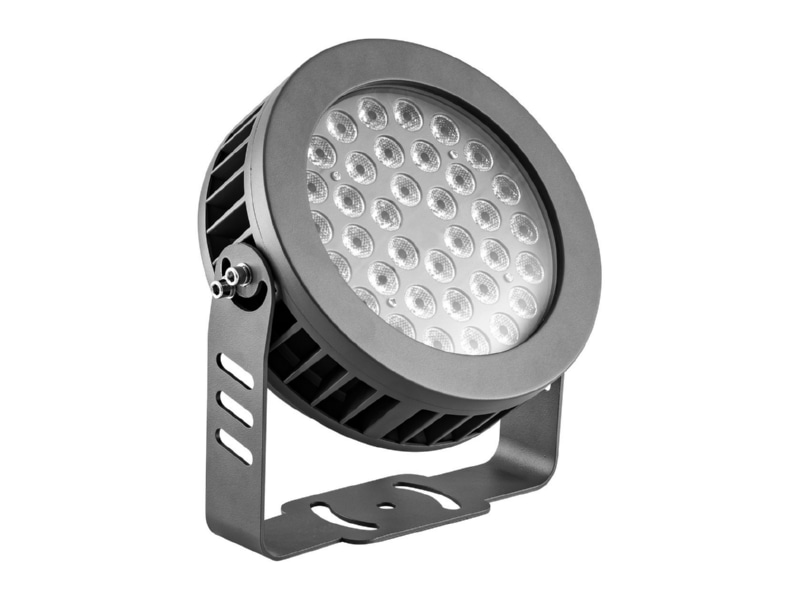

Product image EVN LF6536159902 Downlight spot floodlight
Product image

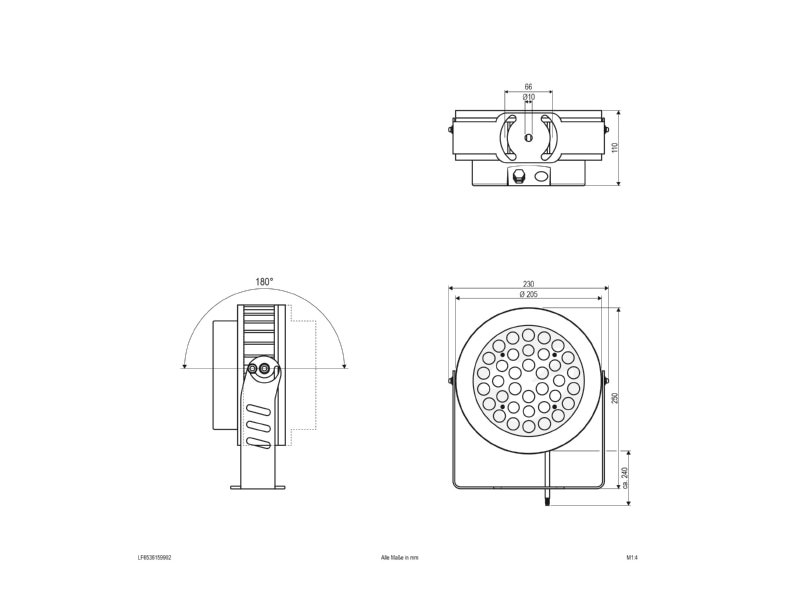

Dimensional drawing EVN LF6536159902 Downlight spot floodlight
Dimensional drawing

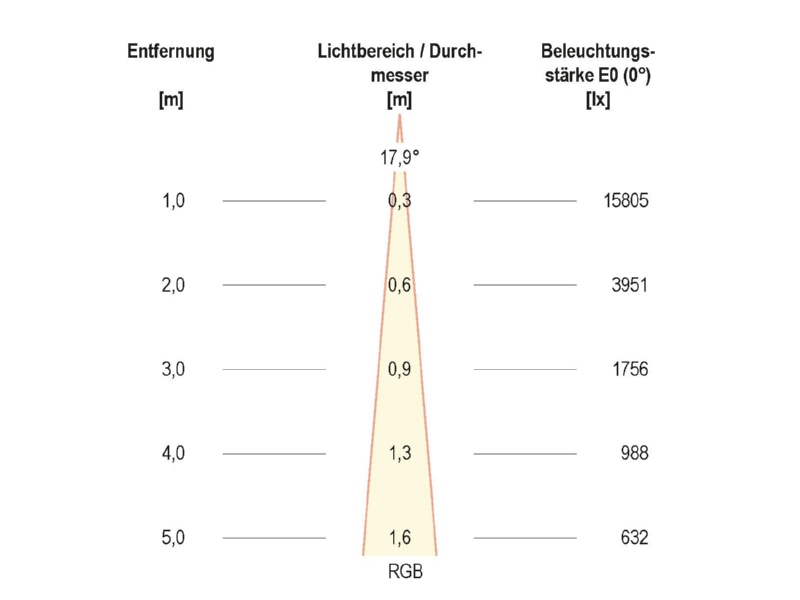

Cone diagram 1 EVN LF6536159902 Downlight spot floodlight
Cone diagram 1

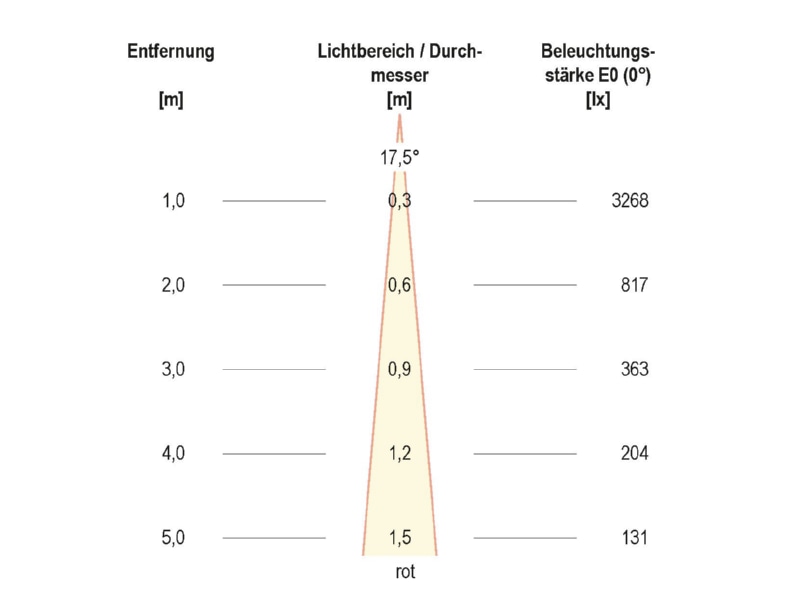

Cone diagram 2 EVN LF6536159902 Downlight spot floodlight
Cone diagram 2

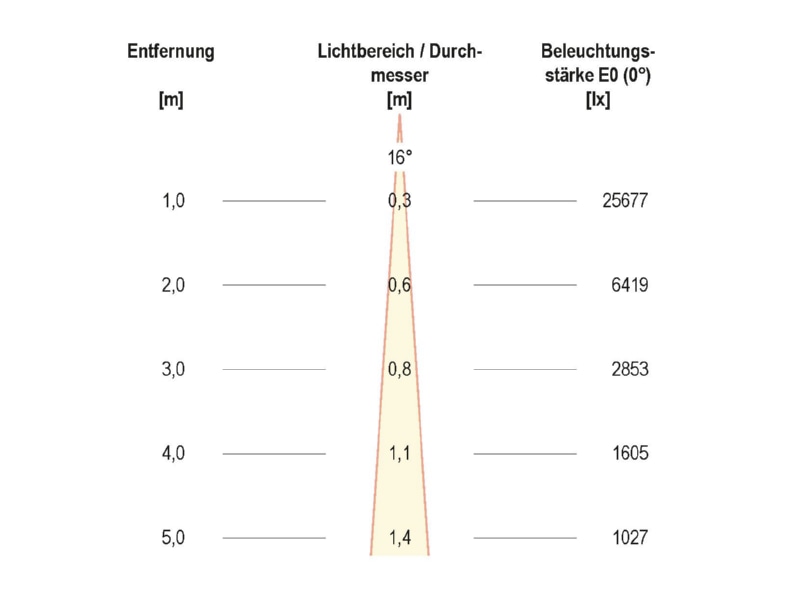

Cone diagram 3 EVN LF6536159902 Downlight spot floodlight
Cone diagram 3

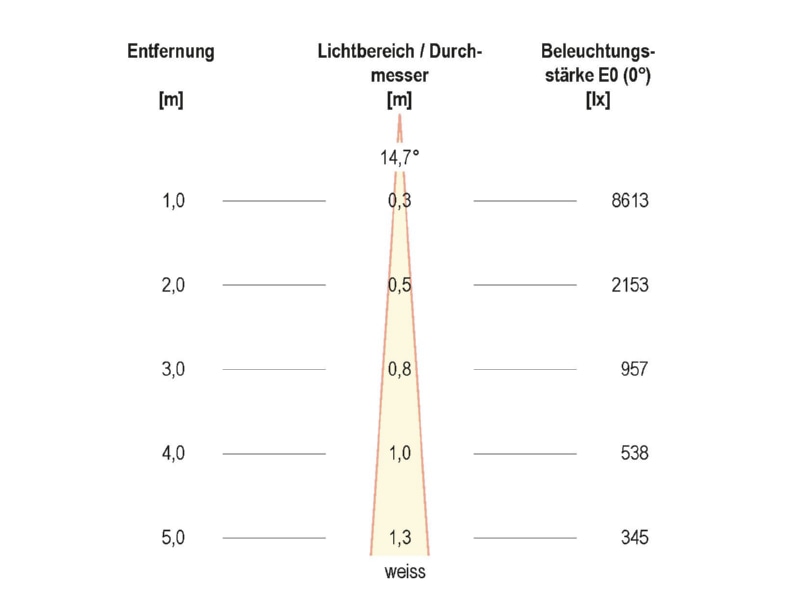

Cone diagram 4 EVN LF6536159902 Downlight spot floodlight
Cone diagram 4

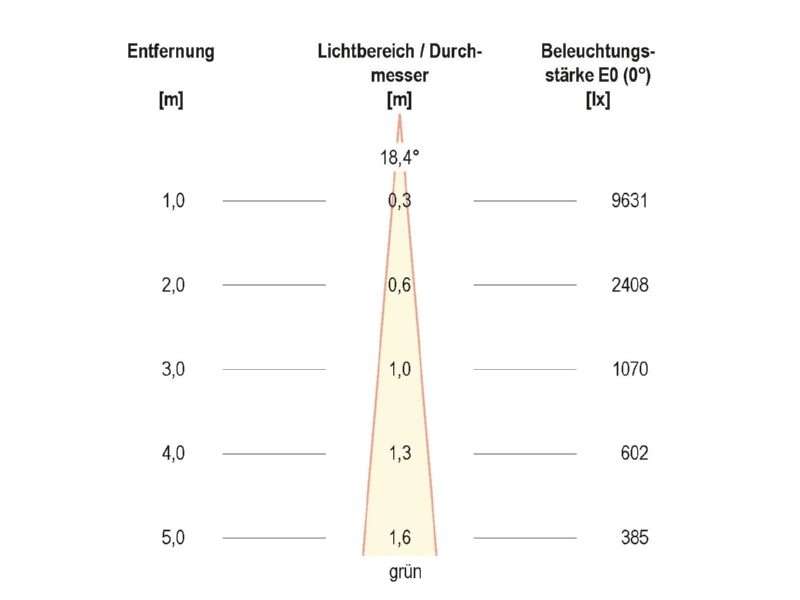

Cone diagram 5 EVN LF6536159902 Downlight spot floodlight
Cone diagram 5
Cone diagram 6 EVN LF6536159902 Downlight spot floodlight
Cone diagram 6
