Downlight/spot/floodlight LD54150125
Source photo:
EVN
(fig. might be different or similar)

Downlight/spot/floodlight LD54150125

EAN/GTIN: 4037293059923
WEEE: DE 63351424
Manufacturer: EVN
Manufacturer no.: LD54150125
Customs tariff no.: 94051190
Similar top items: Show now & compare
115,51 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Energy efficiency class of the light source=not relevant, Suitable for wall mounting=no, Suitable for built-in mounting=yes, Suitable for surface mounting=no, Suitable for suspended mounting=no, Suitable for ceiling mounting=yes, Suitable for traverse mounting=no, Suitable for pedestal/floor mounting=no, Suitable for light-track mounting=no, Suitable for clamp-mounting=no, Suitable for low voltage cable system=no, Adjustability=Not adjustable, With movement sensor=no, With light sensor=no, Lamp type=LED not exchangeable, With light source=yes, Material housing=Aluminium, Surface protection=Powder coating, Colour housing=White, Material cover=Plastic, opal, Surface brushed=no, Voltage type=AC, Nominal voltage=200..240 V, LED nominal current at constant current=350 mA, Type of control gear=LED operating device current-controlled, With control gear=yes, Exchangeable control gear=yes, Dimming depending on control gear=yes, Dimming 0-10 V=no, Dimming 1-10 V=yes, Dimming DALI-2=yes, Dimming DALI=yes, Dimming DMX=no, Dimming DSI=no, Dimming potentiometer (integrated)=no, Dimming GPRS=no, Dimming LineSwitch=no, Dimming manufacturer΄s proprietary system=no, Dimming mains voltage modulation=no, Dimming phase cut-off=no, Dimming phase cut-on=no, Dimming programmable=no, Dimming RF=no, Dimming Sine Wave Reduction=no, Dimming Touch and Dim=no, Dimming Zigbee=no, Dimming with push-button=no, No dim function=no, Light sharing=Symmetric, Beam angle=Extreme wide beam >80°, Light outlet=Direct, Rated life time L80/B10 at 25 °C=50000 h, Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq)=20 %, Constant light output (CLO)=no, Degree of protection (IP)=IP54, Impact strength=IK06, Protection class=II, Rated ambient temperature according to IEC62722-2-1=-20..45 °C, Max. system power=15 W, Colour of light=White, Colour temperature=3000..5700 K, Colour rendering index CRI=80-89, Luminous flux=1380..1580 lm, Luminous intensity=859 cd, Colour temperature adjustable=Positions, Beam angle adjustable=No, Height/depth=50 mm, Outer diameter=145 mm, Built-in height/depth=48 mm, Built-in diameter=120 mm, Number of poles=2, Connection type=Screwed terminal, Luminaire with limited surface temperature, sign ΄΄DΏ=no, Emergency power supply integrated=no, Luminaire efficacy=105 lm/W, Suitable for workplace according to EN 12464-1=no, Covering of the luminaire with thermally insulating material possible=no, IFTTT support available=no, Compatible with Apple HomeKit=no, Compatible with Google Assistant=no, Compatible with Amazon Alexa=no

More product images:

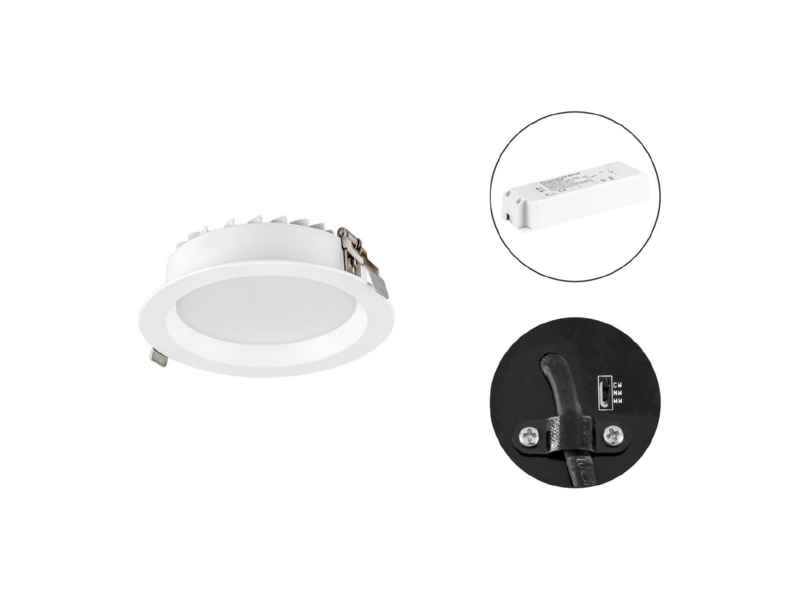

Product image EVN LD54150125 Downlight spot floodlight
Product image

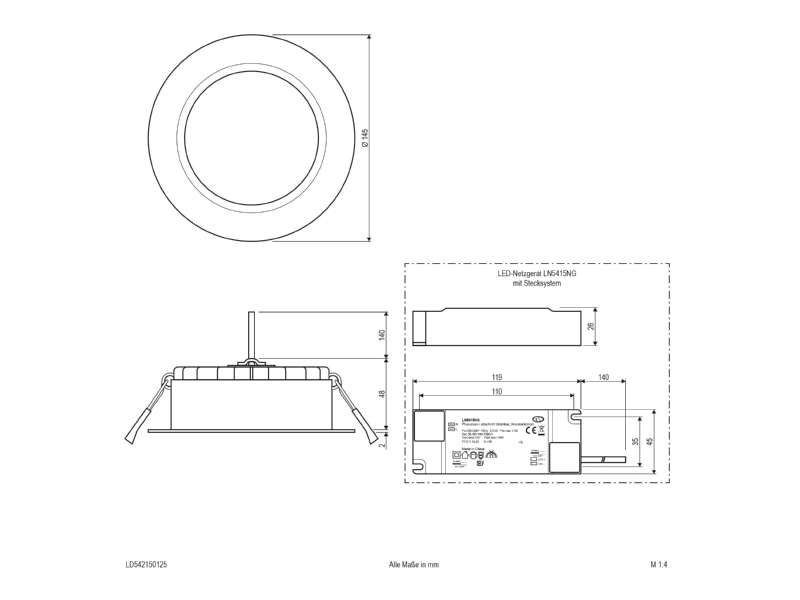

Dimensional drawing EVN LD54150125 Downlight spot floodlight
Dimensional drawing

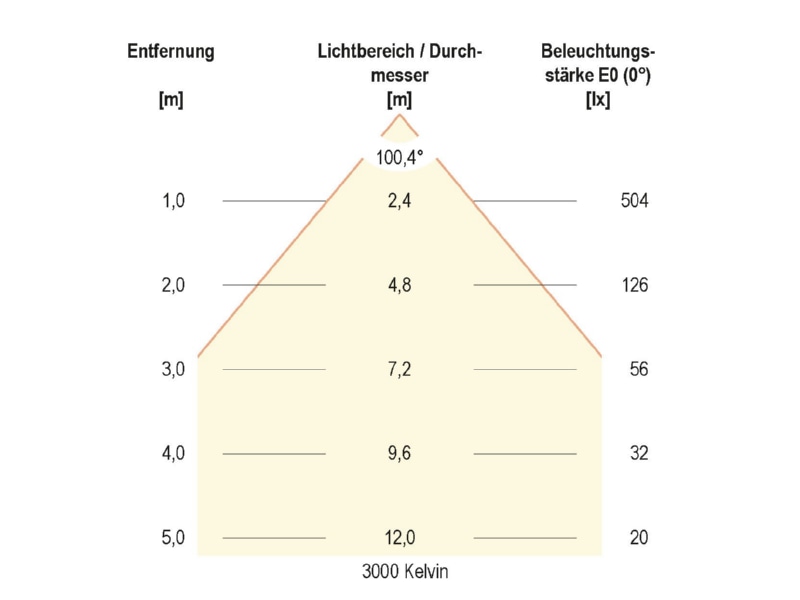

Cone diagram 1 EVN LD54150125 Downlight spot floodlight
Cone diagram 1

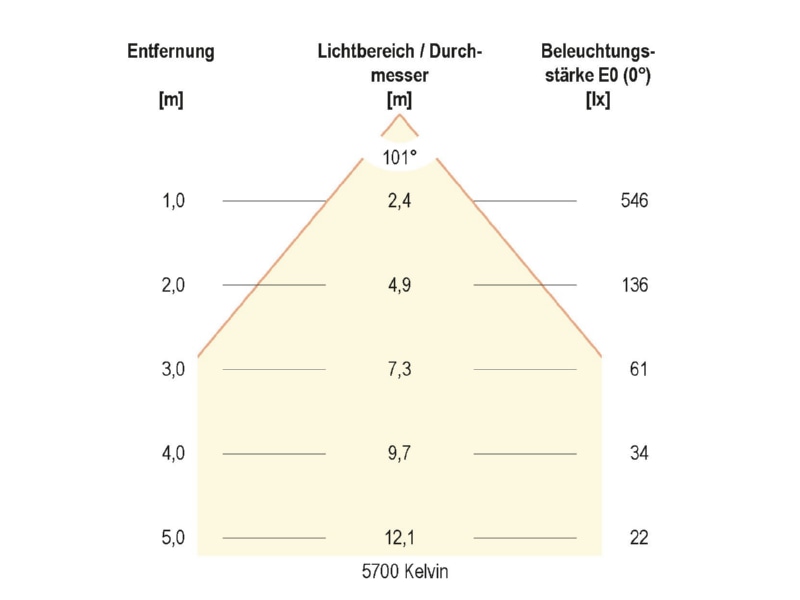

Cone diagram 2 EVN LD54150125 Downlight spot floodlight
Cone diagram 2
Cone diagram 3 EVN LD54150125 Downlight spot floodlight
Cone diagram 3
