Downlight/spot/floodlight L5408019902

EAN/GTIN: 4037293030427
WEEE: DE 63351424
Manufacturer: EVN
Manufacturer no.: L5408019902
Customs tariff no.: 94051190
Similar top items: Show now & compare
49,55 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Downlight/spot/floodlight Suitable for built-in mounting, Suitable for ceiling mounting, Adjustability Not adjustable, Lamp type LED not exchangeable, With light source, Material housing Aluminium, Surface protection Powder coating, Colour housing White, Material cover Plastic, opal, Voltage type DC, Nominal voltage 24 ... 24V, Type of control gear LED operating device voltage-controlled, Dimming depending on control gear, Light sharing Symmetric, Beam angle Extreme wide beam >80°, Light outlet Direct, Degree of protection (IP) IP54, Protection class III, Rated ambient temperature acc. IEC62722-2-1 -20 ... 40°C, Max. system power 13W, Colour of light RGBW, Colour temperature 3000 ... 3000K, Colour rendering index CRI 80-89, Luminous flux 456 ... 717lm, Height/depth 43mm, Outer diameter 85mm, Built-in height/depth 45mm, Built-in diameter 68mm, Number of poles 5, Connection type Other

More product images:

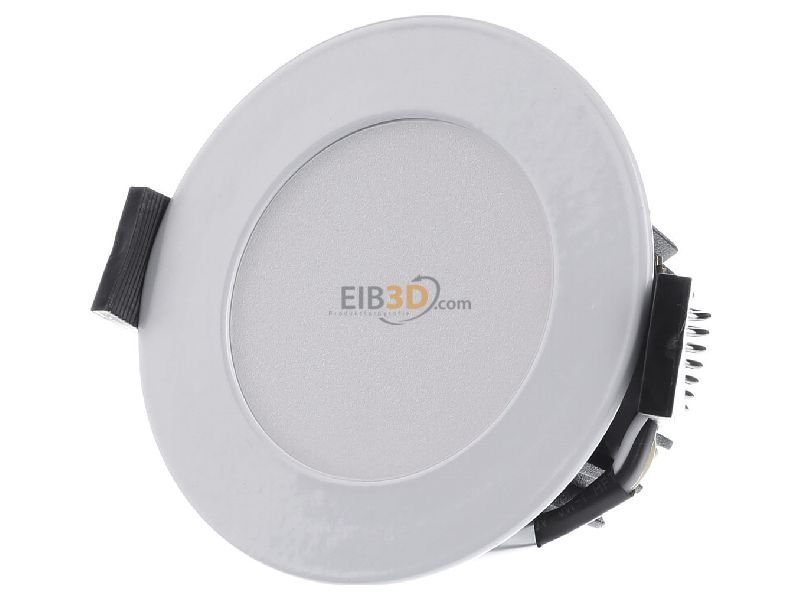

Front view EVN L5408019902 Downlight/spot/floodlight
Front view

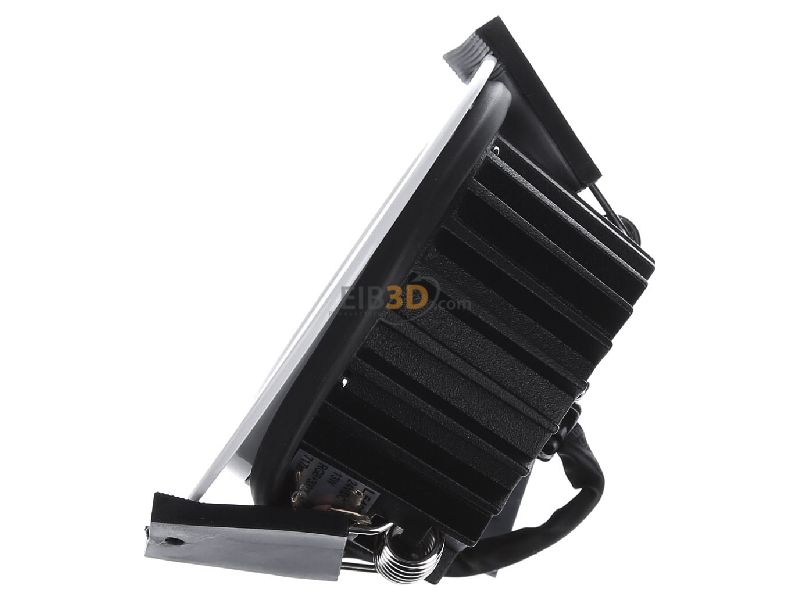

View on the left EVN L5408019902 Downlight/spot/floodlight
View on the left

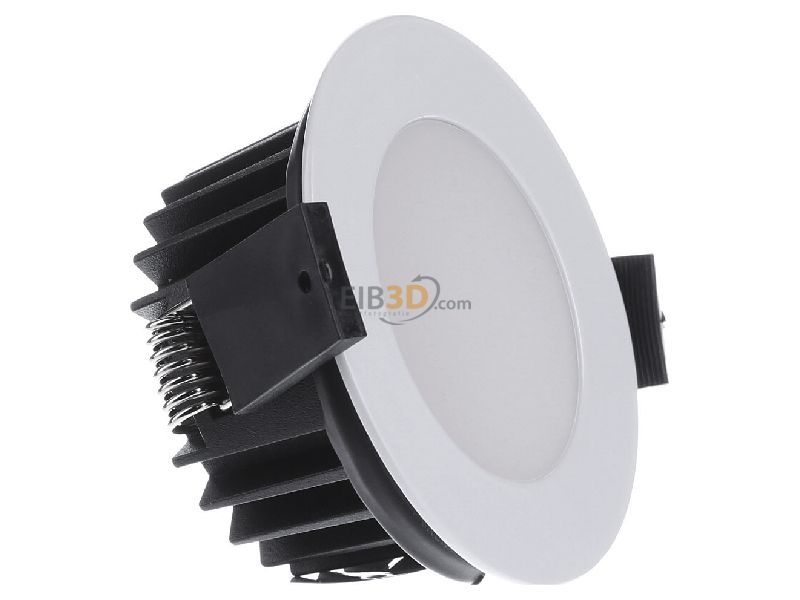

View on the right EVN L5408019902 Downlight/spot/floodlight
View on the right

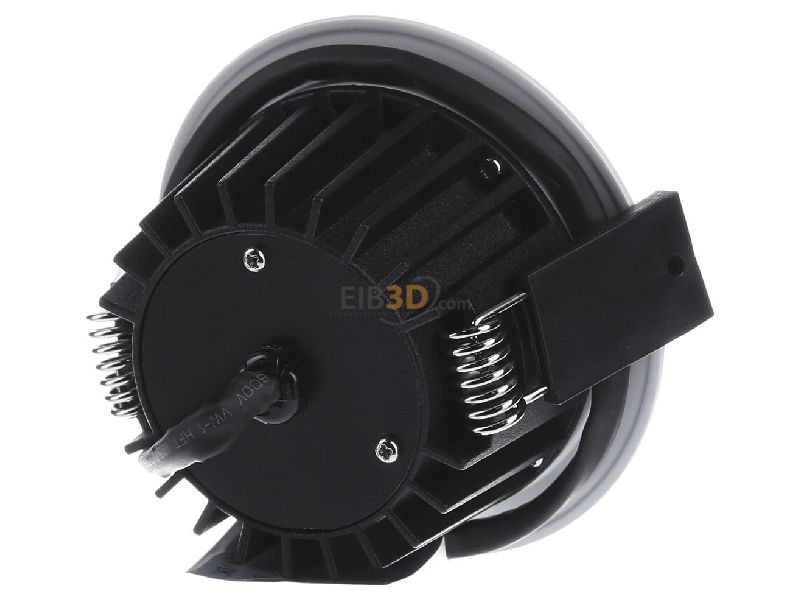

Back view EVN L5408019902 Downlight/spot/floodlight
Back view

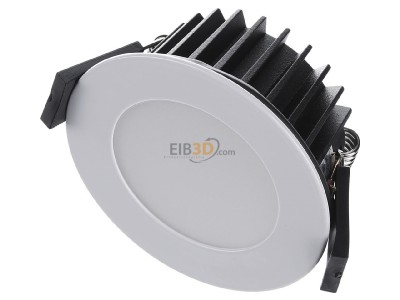

View up front EVN L5408019902 Downlight/spot/floodlight
View up front

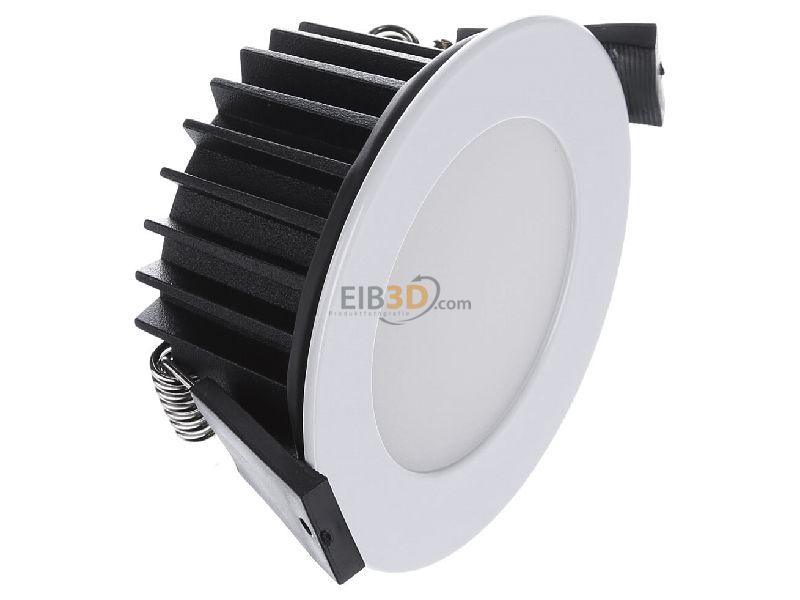

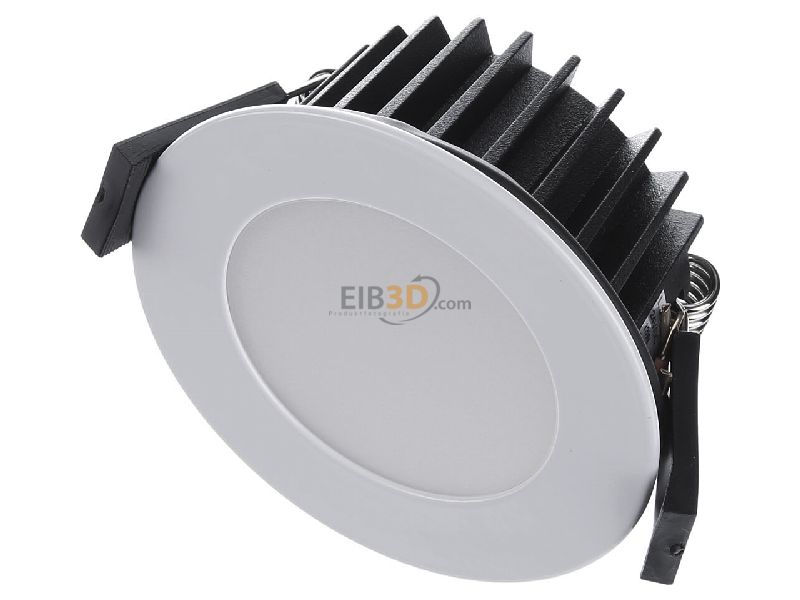

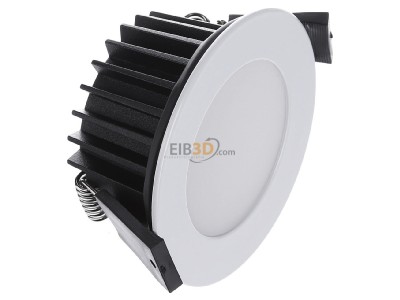

View top left EVN L5408019902 Downlight/spot/floodlight
View top left
View top right EVN L5408019902 Downlight/spot/floodlight
View top right

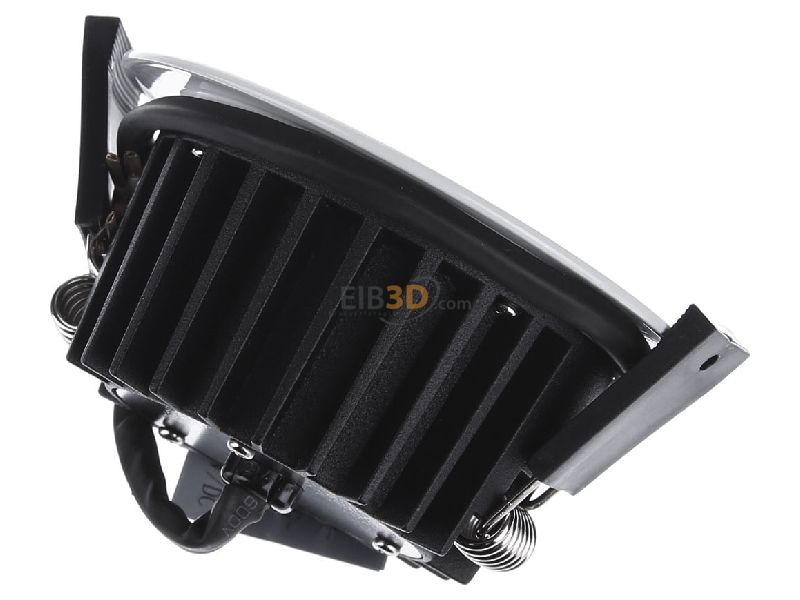

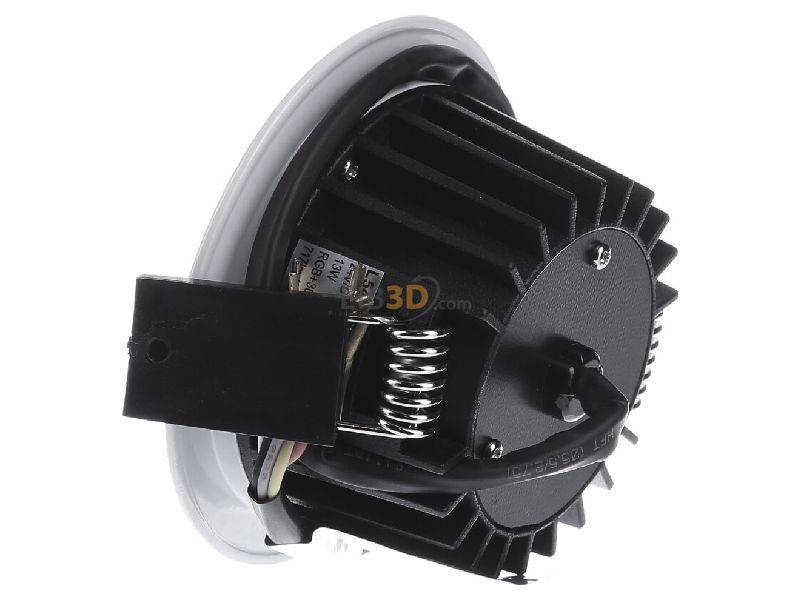

Top rear view EVN L5408019902 Downlight/spot/floodlight
Top rear view

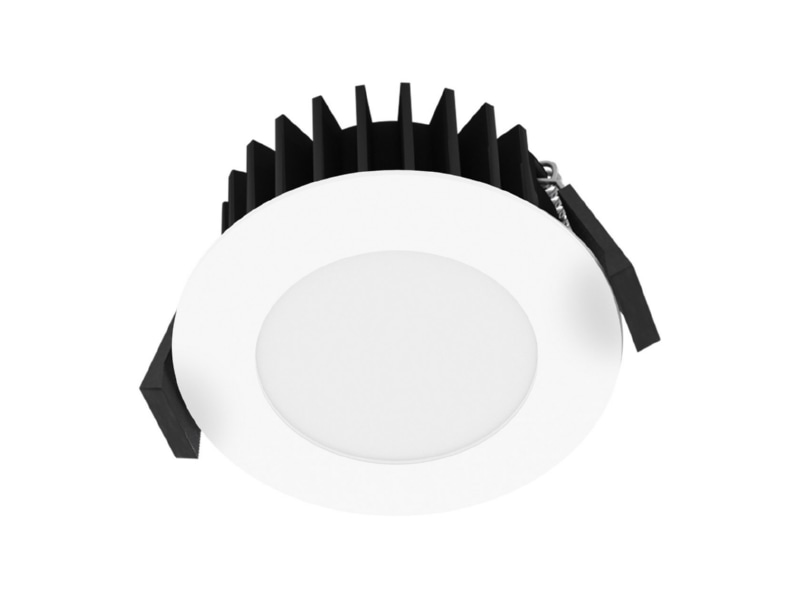

Product image EVN L5408019902 Downlight spot floodlight
Product image

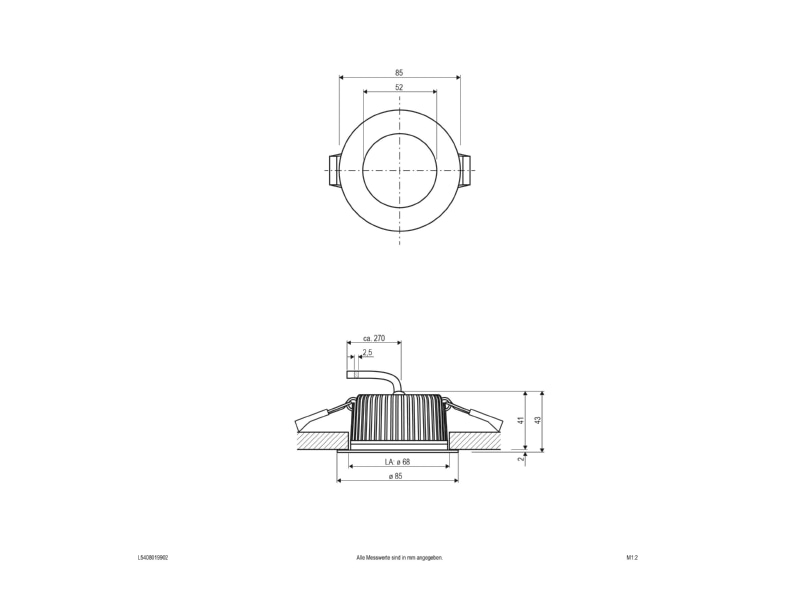

Dimensional drawing EVN L5408019902 Downlight spot floodlight
Dimensional drawing

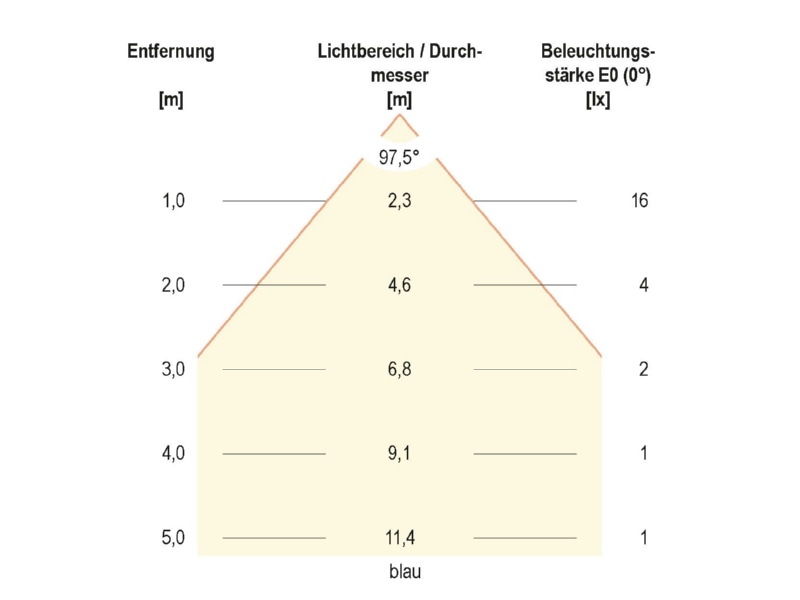

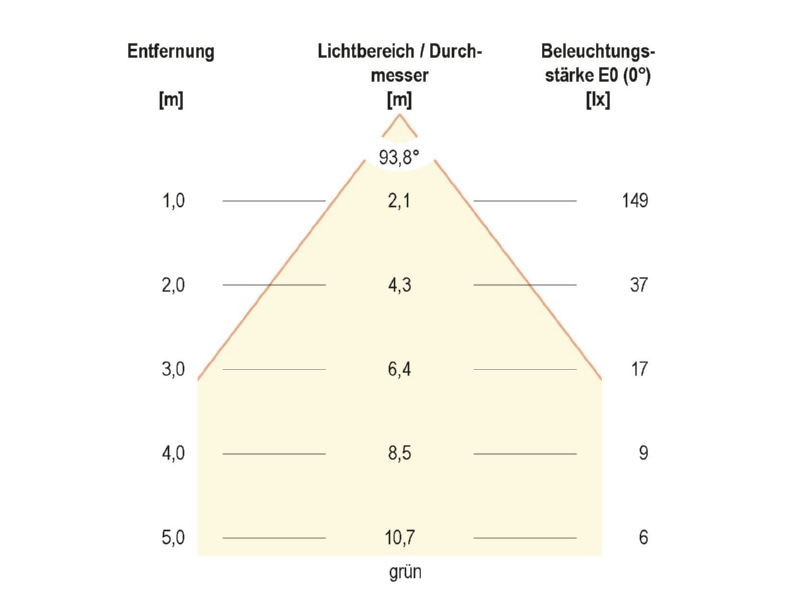

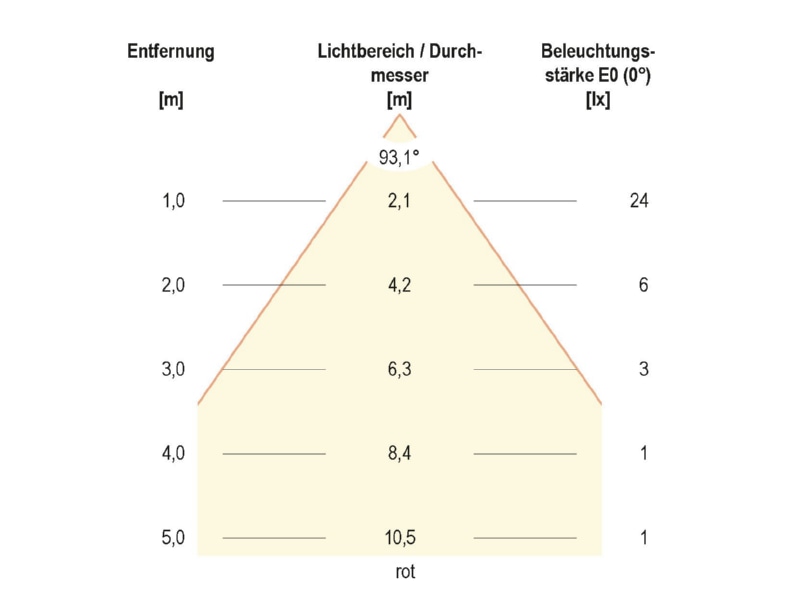

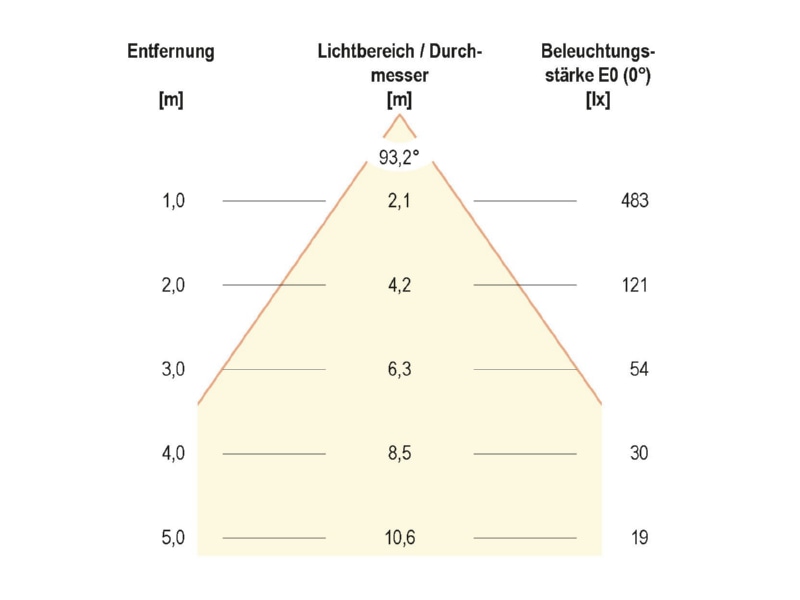

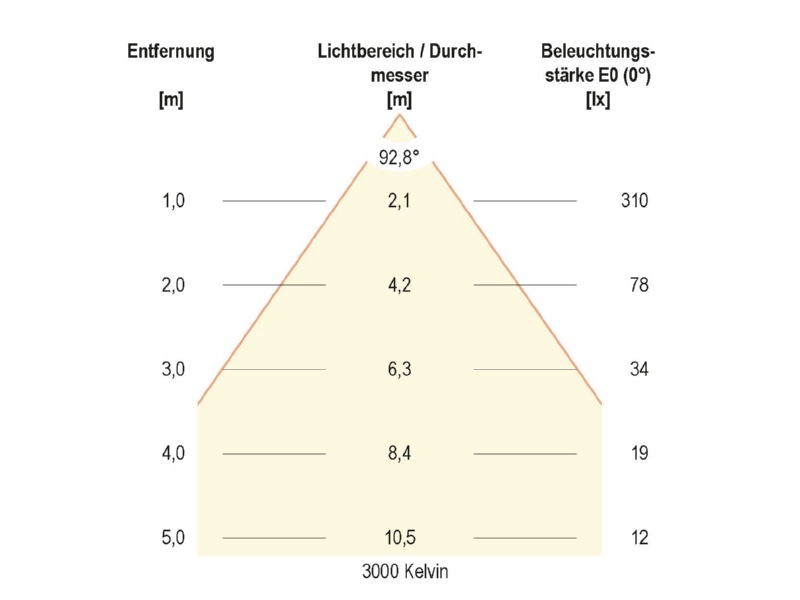

Cone diagram 1 EVN L5408019902 Downlight spot floodlight
Cone diagram 1
Cone diagram 2 EVN L5408019902 Downlight spot floodlight
Cone diagram 2
Cone diagram 3 EVN L5408019902 Downlight spot floodlight
Cone diagram 3
Cone diagram 4 EVN L5408019902 Downlight spot floodlight
Cone diagram 4
Cone diagram 5 EVN L5408019902 Downlight spot floodlight
Cone diagram 5
Cone diagram 6 EVN L5408019902 Downlight spot floodlight
Cone diagram 6
