Downlight/spot/floodlight L0900125
Source photo:
EVN
(fig. might be different or similar)

Downlight/spot/floodlight L0900125

EAN/GTIN: 4037293027083
WEEE: DE 63351424
Manufacturer: EVN
Manufacturer no.: L0900125
Customs tariff no.: 94051140
Similar top items: Show now & compare
13,44 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Suitable for built-in mounting, Suitable for ceiling mounting, Adjustability Not adjustable, Lamp type LED not exchangeable, With light source, Material housing Plastic, Colour housing White, Material cover Plastic, opal, Nominal voltage 220 ... 240V, Control gear included, Dimming phase cut-off, Dimming phase cut-on, Reflector High-gloss, Light distributor Reflector, Light sharing Symmetric, Beam angle Extreme wide beam >80°, Light outlet Direct, Degree of protection (IP) IP20, Protection class II, Max. system power 10W, Colour of light White, Colour temperature 3000 ... 6000K, Luminous flux 800 ... 891lm, Height/depth 59mm, Outer diameter 113mm, Built-in height/depth 60mm, Built-in diameter 95mm, Type of wiring Ending, Number of poles 2, Connection type Screwed terminal

More product images:

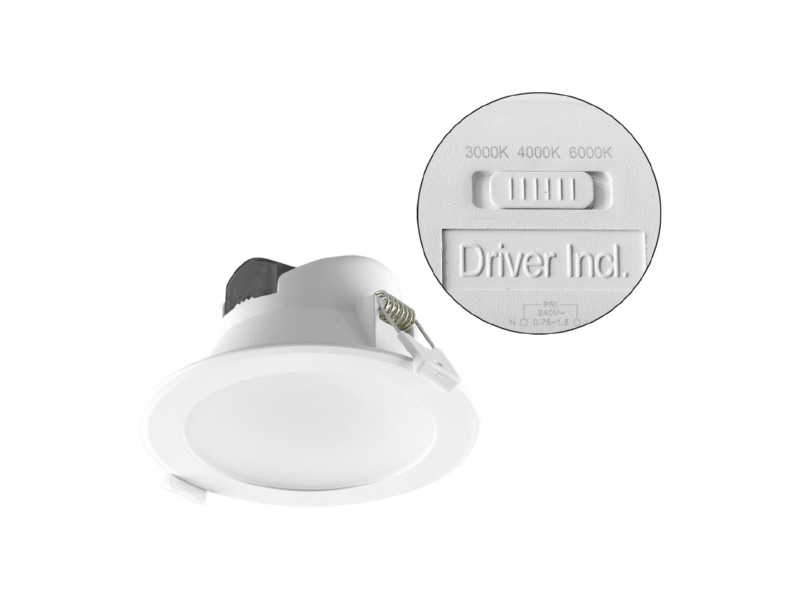

Product image EVN L0900125 Downlight spot floodlight
Product image

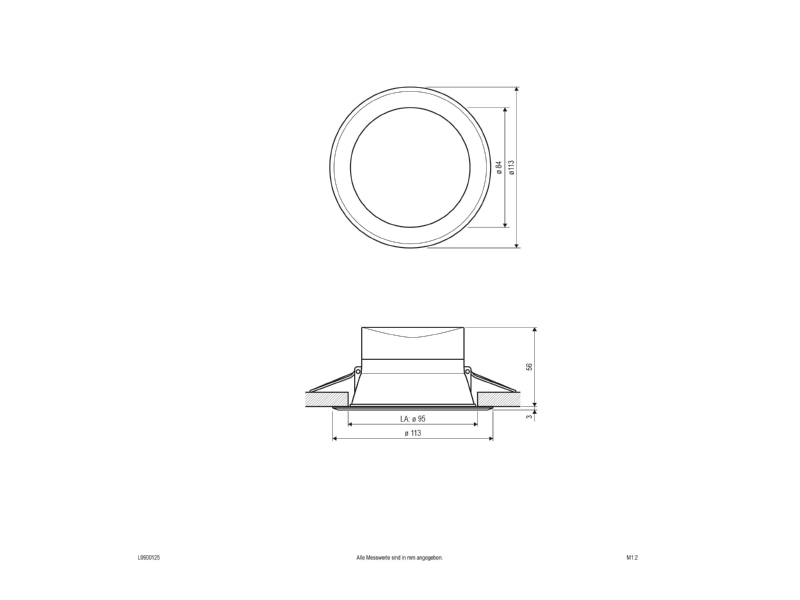

Dimensional drawing EVN L0900125 Downlight spot floodlight
Dimensional drawing

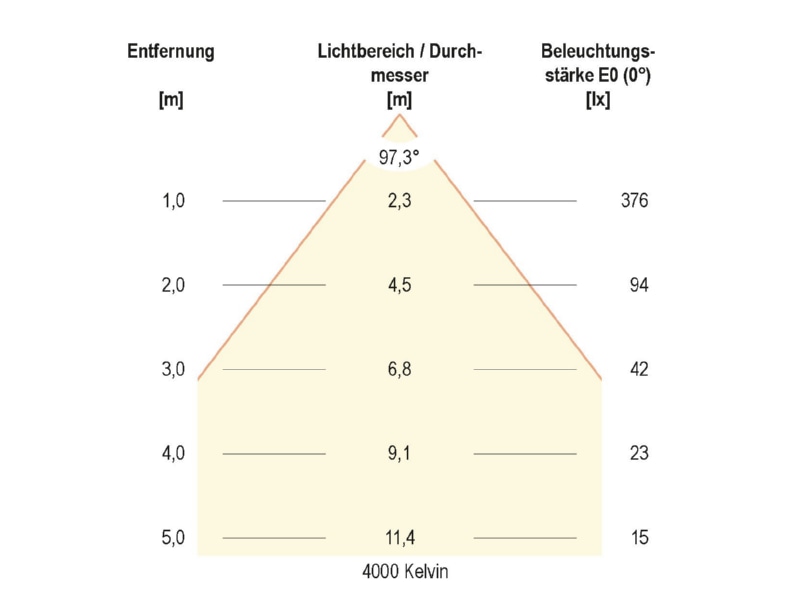

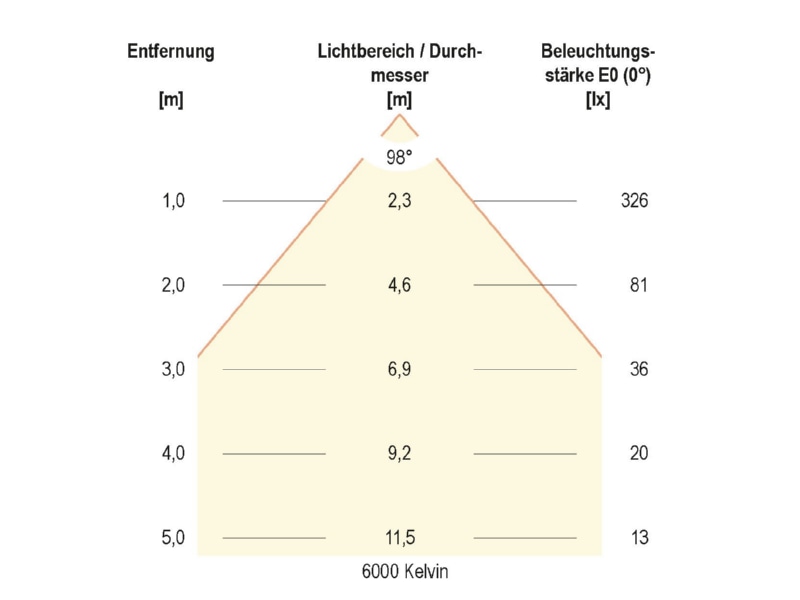

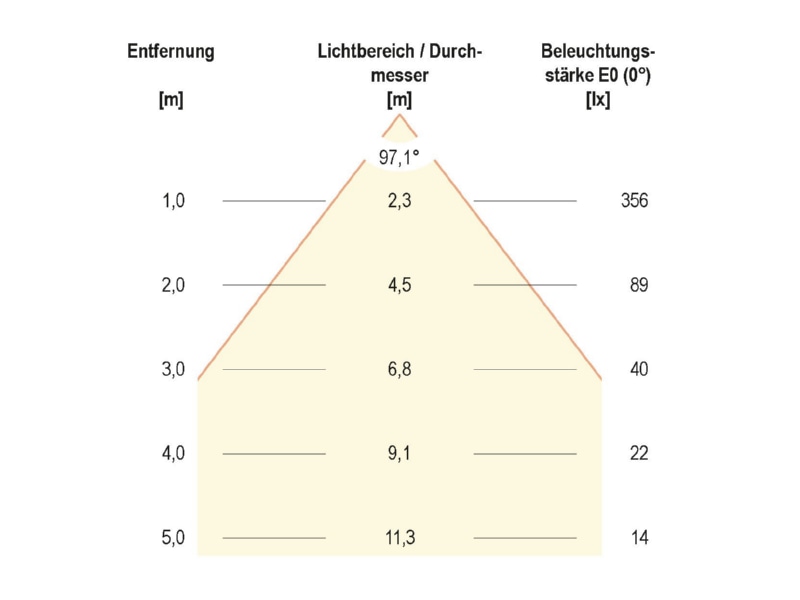

Cone diagram 1 EVN L0900125 Downlight spot floodlight
Cone diagram 1
Cone diagram 2 EVN L0900125 Downlight spot floodlight
Cone diagram 2
Cone diagram 3 EVN L0900125 Downlight spot floodlight
Cone diagram 3
Cone diagram 4 EVN L0900125 Downlight spot floodlight
Cone diagram 4
