Movement sensor for bus system PD-FLAT EP10423031
Source photo:
ESYLUX
(fig. might be different or similar)

Movement sensor for bus system PD-FLAT EP10423031

EAN/GTIN: 4015120423031
WEEE: DE 36503340
Manufacturer: ESYLUX
Manufacturer no.: PD-FLAT #EP10423031
Manufact.-SKU: EP10423031
Customs tariff no.: 90314990
Similar top items: Show now & compare
86,41 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Movement sensor for bus system Other bus systems None, Model Presence detector, Mounting method Flush mounted (plaster), Material Plastic, Material quality Thermoplastic, Surface protection Untreated, Surface finishing Matt, Colour White, RAL-number (similar) 9010, With bus connection, Operation mode switch, Response value luminosity adjustable, Teach-function for response value luminosity, DALI-2 certified, Optimum mounting height 2,5m, Max. transmission range sideways 4m, Max. transmission range frontally 3m, Diameter detection range on floor 8m, Detection angle vertical 58 ... 116°, Detection angle horizontal 180 ... 360°, Number of digital inputs 0, Number of channels 0, Min. depth of built-in installation box 24mm

More product images:

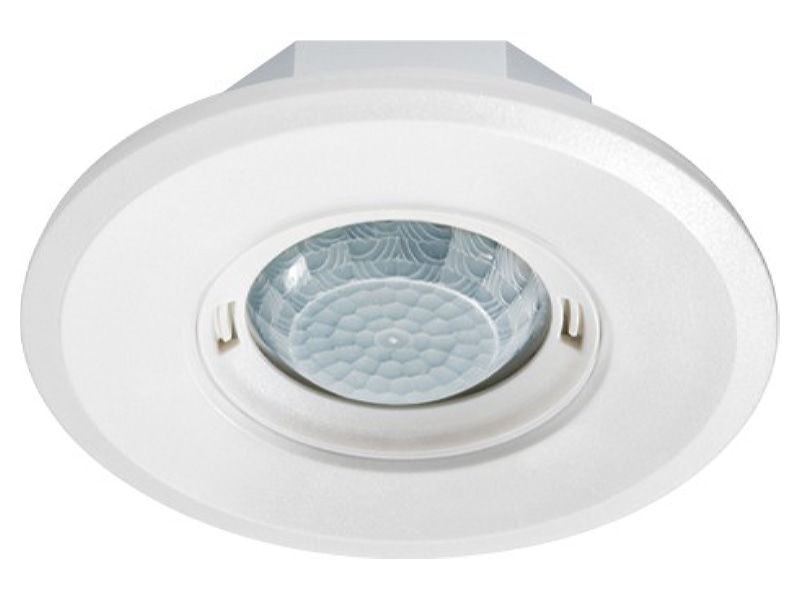

Product image ESYLUX PD FLAT  EP10423031 Movement sensor for bus system PD FLAT EP10423031
Product image

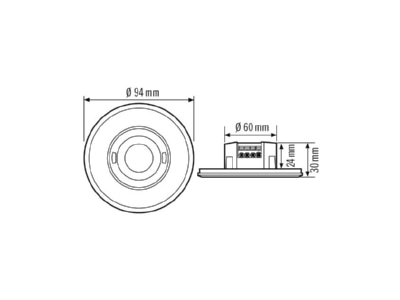

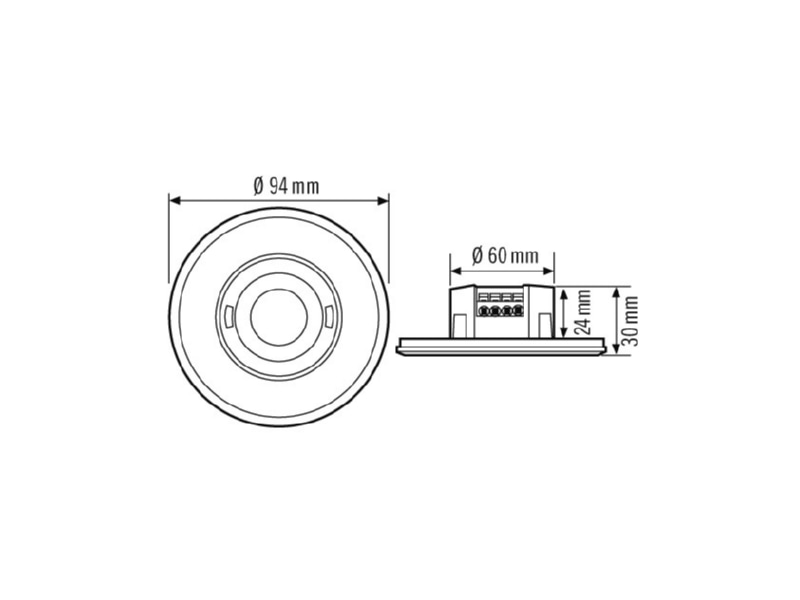

Dimensional drawing ESYLUX PD FLAT  EP10423031 Movement sensor for bus system PD FLAT EP10423031
Dimensional drawing
