Source photo: www.EIB3D.com

KNX I/O device for bus system 4 inputs 6119/40

EAN/GTIN: 4011395037430
WEEE: DE 91945327
Manufacturer: Busch Jaeger
Manufacturer no.: 6119/40
Manufact.-SKU: 2CKA006133A0151
Customs tariff no.: 85365080
Similar top items: Show now & compare
60,70 €
Select local currency
Price incl. tax. 19,00%
plus shipping
Delivery time:
11-12 days [DE] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Bus system KNX=yes, Bus system KNX-RF (Radio Frequent)=no, Bus system radio frequent=no, Bus system LON=no, Bus system Powernet=no, Other bus systems=None, Remote operation possible=no, Ethernet=no, Mounting method=Flush-mounted, With bus connection=no, LED controlling=no, With LED indication=no, Local operation/hand operation=no, Number of input channels=4, Number of inputs=4, Input voltage=20 V, Suitable for C-load=no, Number of output channels=4, Max. number of switching contacts=4, Output power=0,01 VA, With switch function=no, Rated current=0,01 A, Rated operating voltage=24 V, External signal voltage necessary=yes, Different phases connectable=no, Type of current=DC, Degree of protection (IP)=IP20

More product images:

Front view Busch-Jaeger 6119/40 Binary input for bus system 4-ch
Front view
View on the left Busch-Jaeger 6119/40 Binary input for bus system 4-ch
View on the left
View on the right Busch-Jaeger 6119/40 Binary input for bus system 4-ch
View on the right
Back view Busch-Jaeger 6119/40 Binary input for bus system 4-ch
Back view
View up front Busch-Jaeger 6119/40 Binary input for bus system 4-ch
View up front
View top left Busch-Jaeger 6119/40 Binary input for bus system 4-ch
View top left
View top right Busch-Jaeger 6119/40 Binary input for bus system 4-ch
View top right
Top rear view Busch-Jaeger 6119/40 Binary input for bus system 4-ch
Top rear view

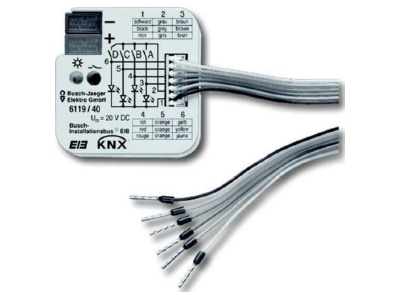

Product image Busch Jaeger 6119 40 EIB  KNX universal interface  push button interface 4 fold
Product image

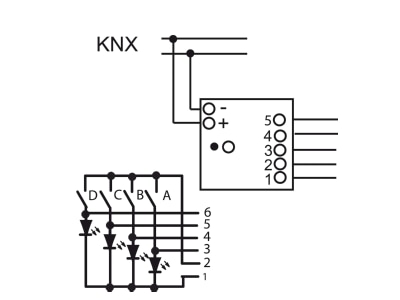

Wiring plan Busch Jaeger 6119 40 EIB  KNX universal interface  push button interface 4 fold
Wiring plan

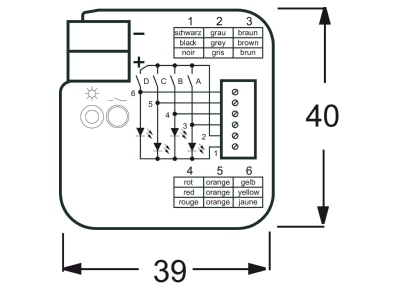

Dimensional drawing Busch Jaeger 6119 40 EIB  KNX universal interface  push button interface 4 fold
Dimensional drawing
