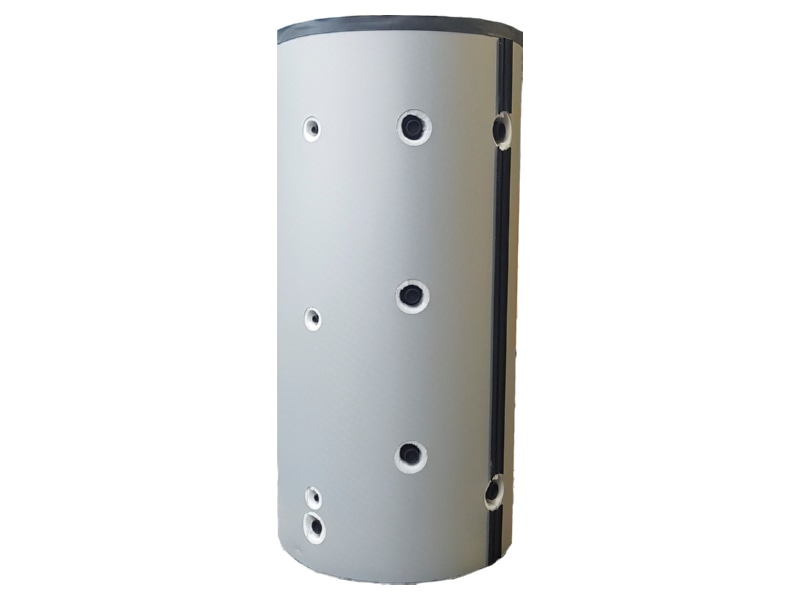

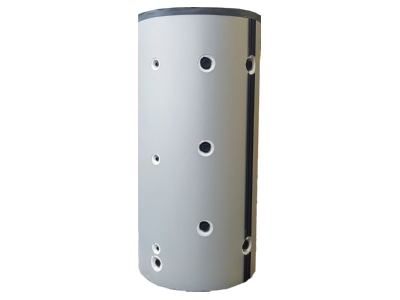

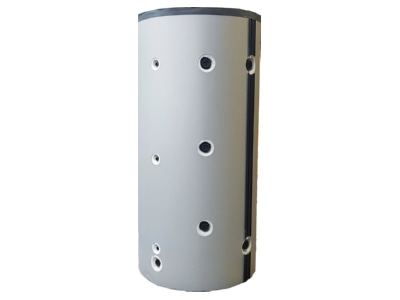

Storage tank (heating/cooling system) BTHC 1000
Source photo:
Bosch Thermotechnik
(fig. might be different or similar)

Storage tank (heating/cooling system) BTHC 1000

EAN/GTIN: 4015627381988
WEEE: DE 69542401
Manufacturer: Bosch Thermotechnik
Manufacturer no.: BTHC 1000
Manufact.-SKU: 8737808196
Customs tariff no.: 84191900
Similar top items: Show now & compare
4.354,53 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
Delivery takes place day-exactly. Article is very heavy and/or bulky! Article is >31kg and/or bulky | Package > 1.2m x 0.6m x 0.6m
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory

Buffer storage tank BTHC 1000; Product type: BTHC 1000, Storage volume (heating): 1000 l, Max. heating operating pressure: 6 bar, Max. permissible heating water temperature: 95 °C, Storage volume: 870.0 l, Standby loss: 3.36 kWh/d, Height: 2055 mm, Width: 1000 mm, Depth: 1000 mm, Outer diameter with thermal insulation: 1000 mm, Net weight: 153 kg, Height without thermal insulation: 790 mm, Thermal insulation thickness: 100 mm, Tipping dimension: 2250 mm, Min. installation width: 890 mm, Connection for heating flow/return: 2´´, internal thread, Drain connection: G 1 internal thread, Diameter of electric heating element: 1 1/2´´, internal thread, Hot water preparation energy efficiency class: C, Energy spectrum DHW: A+ -> F, Heat loss: 140.0 W, Storage volume: 870.0 l, Manufacturer: Bosch Thermotechnik GmbH, Type: BTHC 1000, Order no.: 8737808196, Packaging dimensions: 1000x2060x1000 mm, Total weight incl. packaging: 168 kg
