Hot tap water boiler indirectly heated HR200
Source photo:
Bosch Thermotechnik
(fig. might be different or similar)

Hot tap water boiler indirectly heated HR200

EAN/GTIN: 4051516072049
WEEE: DE 69542401
Manufacturer: Bosch Thermotechnik
Manufacturer no.: HR200
Manufact.-SKU: 7748000723
Customs tariff no.: 73101000
Similar top items: Show now & compare
1.705,97 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
Delivery takes place day-exactly. Article is very heavy and/or bulky! Article is >31kg and/or bulky | Package > 1.2m x 0.6m x 0.6m
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory

Material of the boiler Steel, Material Jacket Plastic, Surface protection vessel enamelled, Content 200 l, Heat transfer Spiral, Double separation no, Wall installation no, Vertical placement yes, Max. Working pressure primary 3 bar, Max. Working pressure secondary 8 bar, With pressure reducing valve no, With pressure gauge no, With thermometer yes, With cleaning opening yes, Protective anode yes, Height 1340 mm, Width 600 mm, Depth 600 mm, Diameter 610 mm, Tilted dimension 1440 mm, Nominal diameter cold drinking water 1 inch (25), Nominal diameter circulation line 3/4 inch (20), Energy efficiency classes spectrum A+ to G

More product images:

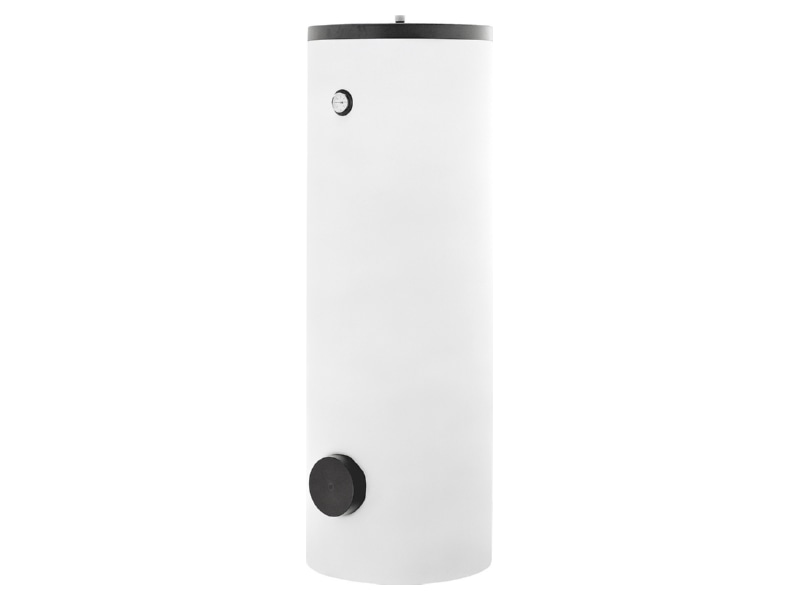

Product image Bosch Thermotechnik HR200 Hot tap water boiler indirectly heated
Product image

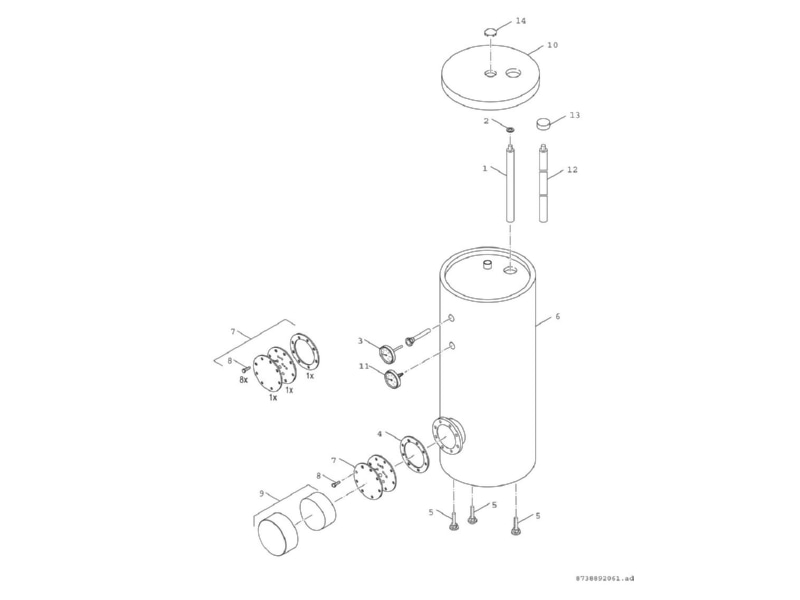

Exploded view 1 Bosch Thermotechnik HR200 Hot tap water boiler indirectly heated
Exploded view 1

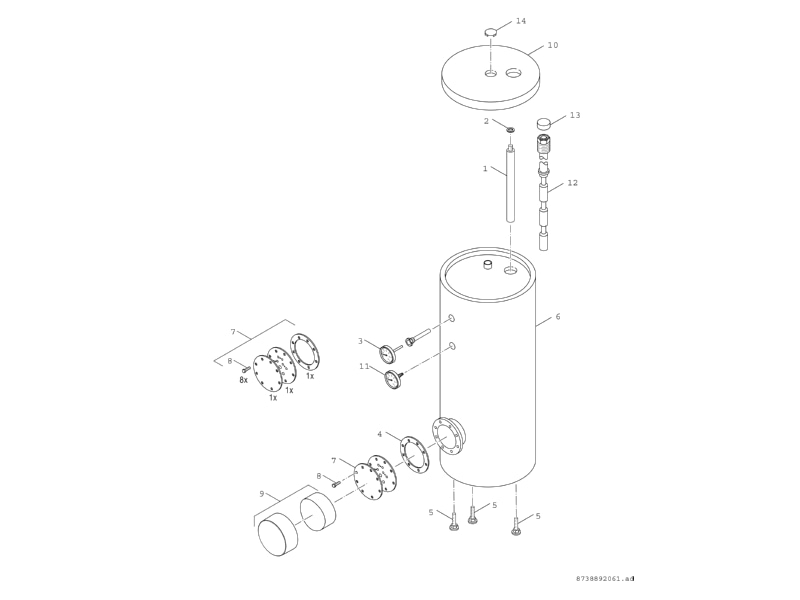

Exploded view 2 Bosch Thermotechnik HR200 Hot tap water boiler indirectly heated
Exploded view 2
Exploded view 3 Bosch Thermotechnik HR200 Hot tap water boiler indirectly heated
Exploded view 3
Exploded view 4 Bosch Thermotechnik HR200 Hot tap water boiler indirectly heated
Exploded view 4
Exploded view 5 Bosch Thermotechnik HR200 Hot tap water boiler indirectly heated
Exploded view 5
