Socket outlet (receptacle) earthing pin 6765107003
Source photo:
BERKER
(fig. might be different or similar)

Socket outlet (receptacle) earthing pin 6765107003

EAN/GTIN: 4011334384304
WEEE: DE 58074287
Manufacturer: BERKER
Manufacturer no.: 6765107003
Customs tariff no.: 85366990
Similar top items: Show now & compare
53,85 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Socket outlet (receptacle) earthing pin Model French norm NF, Number of units 1, Number of modules (module system) 0, Number of socket outlets switchable 0, Imprint/indication Without imprint, Connection type Screwed terminal, With child-protection, Colour Aluminium, RAL-number (akin) 9006, Insulated mounting, With orientation lighting, Special power supply No special power supply, Mounting method Flush mounted (plaster), Type of fastening Mounting with claw, Material Plastic, Material quality Thermoplastic, Halogen free, Surface protection Untreated, Surface finishing Matt, Nominal current 16A, Nominal voltage 250V, Frequency 50 ... 60Hz, Suitable for degree of protection (IP) IP20, Impact strength IK05, Width of device 71mm, Height of device 71mm, Depth of device 42mm, Cover Central cover plate

More product images:

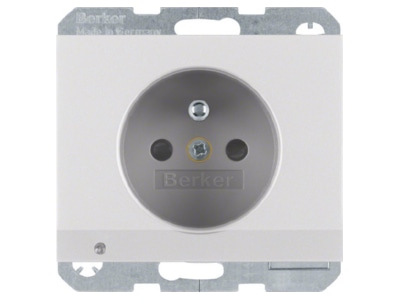

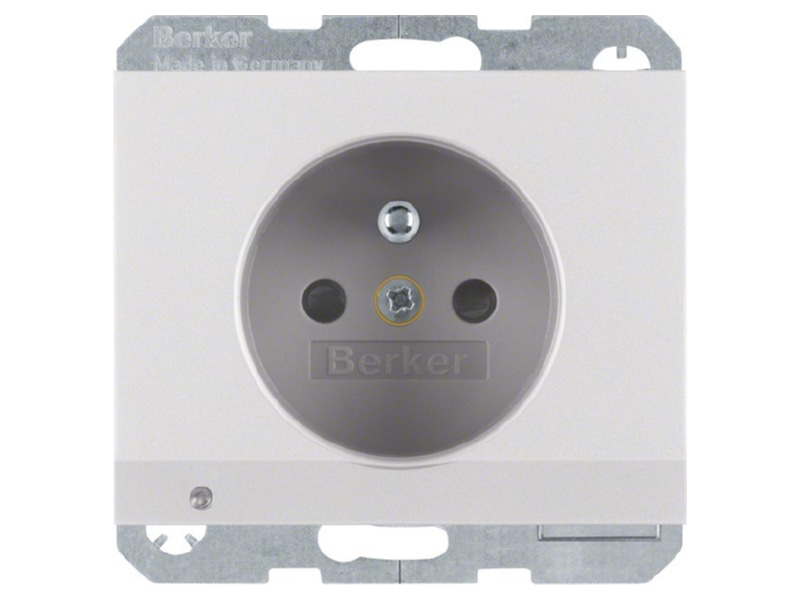

Product image 1 Berker 6765107003 Socket outlet  receptacle  earthing pin
Product image 1

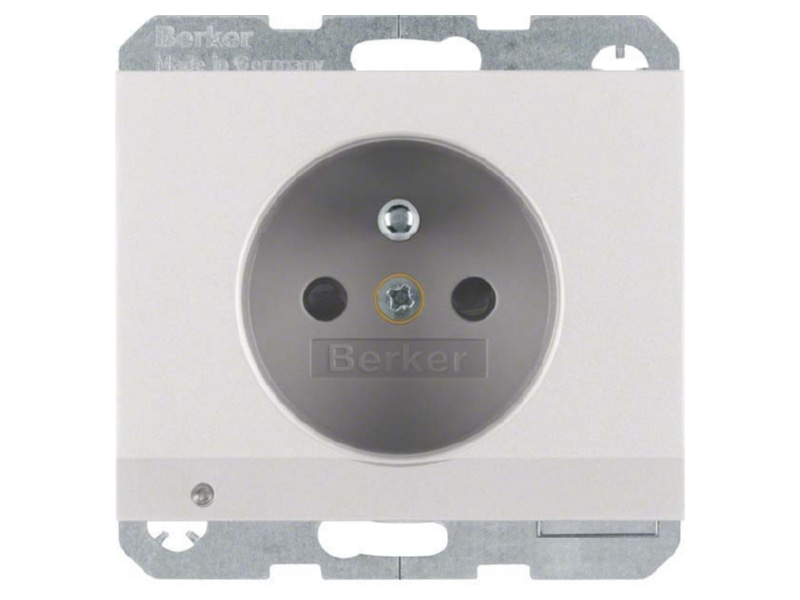

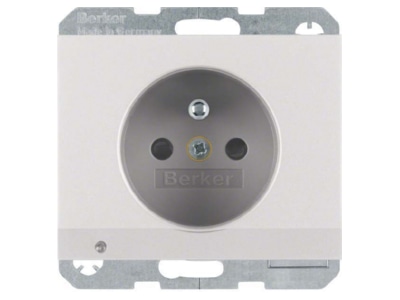

Product image 2 Berker 6765107003 Socket outlet  receptacle  earthing pin
Product image 2
