Motor protection circuit-breaker 10A MS116-10-HKF1-11

EAN/GTIN: 4013614394805
WEEE: DE 91945327
Manufacturer: ABB
Manufacturer no.: MS116-10-HKF1-11
Manufact.-SKU: 1SAM250005R1010
Customs tariff no.: 85362010
Similar top items: Show now & compare
88,75 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Motor protection switch MS116-10-HKF1-11 overload release current setting 6.3 ... 10A, setting range of the instantaneous short-circuit release 150 ... 150A, with thermal protection, phase failure sensitive, thermomagnetic tripping technology, rated operating voltage 690 ... 690V, rated continuous current Iu 10A, rated operating power at AC-3, 400 V 4kW, connection type main circuit screw connection, design of the actuating element rotary knob, device design complete device in the housing, with integrated auxiliary switch, number of poles 3, rated short-circuit breaking current Icu at 400 V, AC 75kA, protection class (IP) IP20, height 90mm, width 45mm, Depth 85.6mm, motor protection switch MS116 with thermal and electromagnetic protection represents the compact and economical series for motor protection up to 15 kW (400 V) with a module width of 45 mm. The temperature-compensated device has a rotary handle operation with a clear switching position display I/0. The rotary handle can be locked in the 0 position using a locking device. Auxiliary and signal contacts as well as undervoltage and shunt releases can be installed without tools. MS116-HKF1-11 has a front-mounted auxiliary switch with 1NO/1NC contacts. 3-phase rails for 65 A or 100 A and feed blocks for 25 mm2 or 35 mm2 allow multiple motor protection switches to be fed together. Protective housings and accessories for control cabinet and door installation complete the range.

More product images:

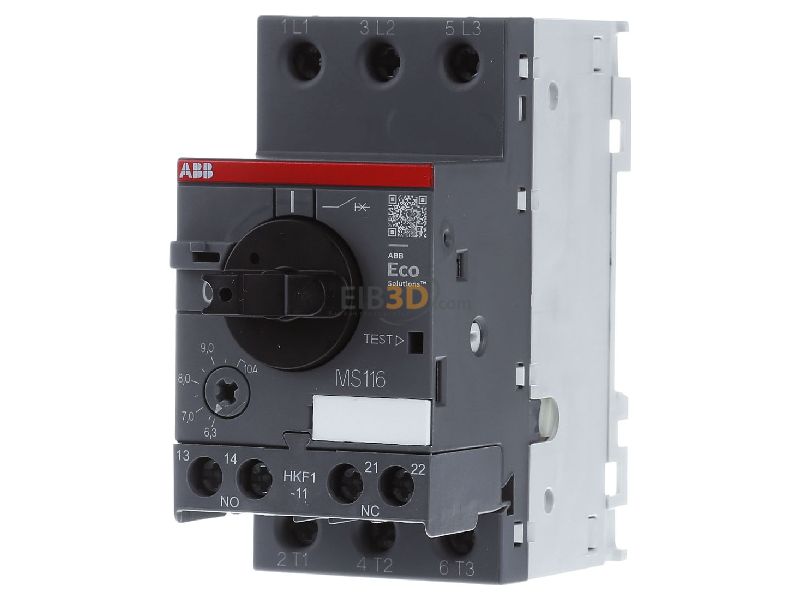

Front view ABB MS116-10-HKF1-11 Motor protection circuit-breaker 10A
Front view

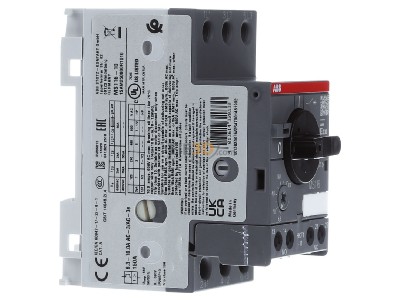

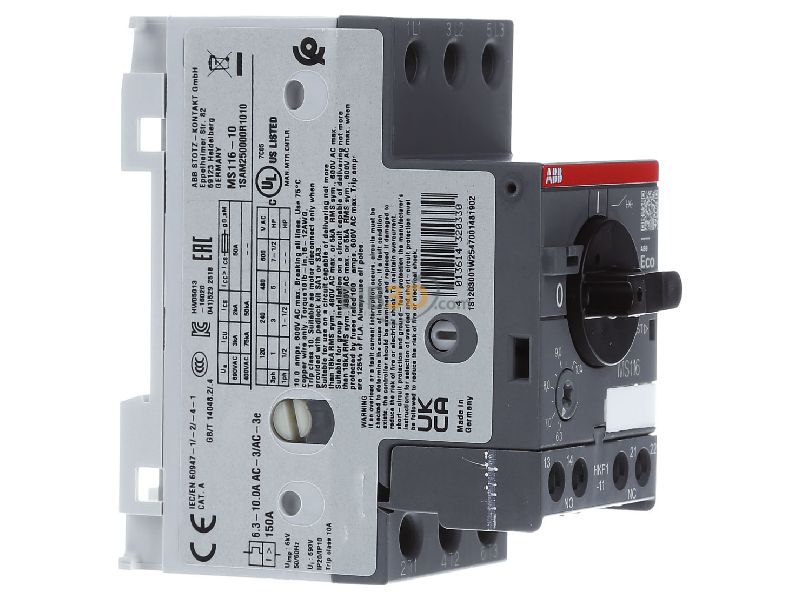

View on the left ABB MS116-10-HKF1-11 Motor protection circuit-breaker 10A
View on the left

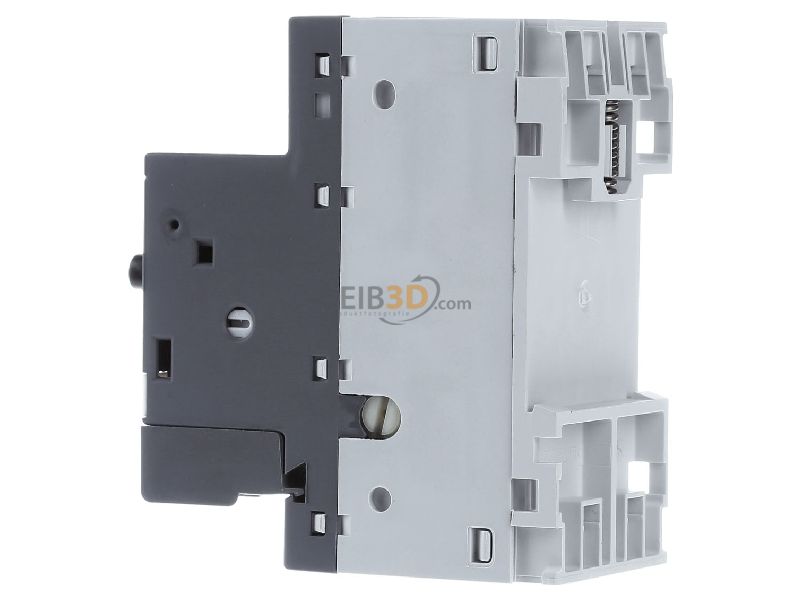

View on the right ABB MS116-10-HKF1-11 Motor protection circuit-breaker 10A
View on the right

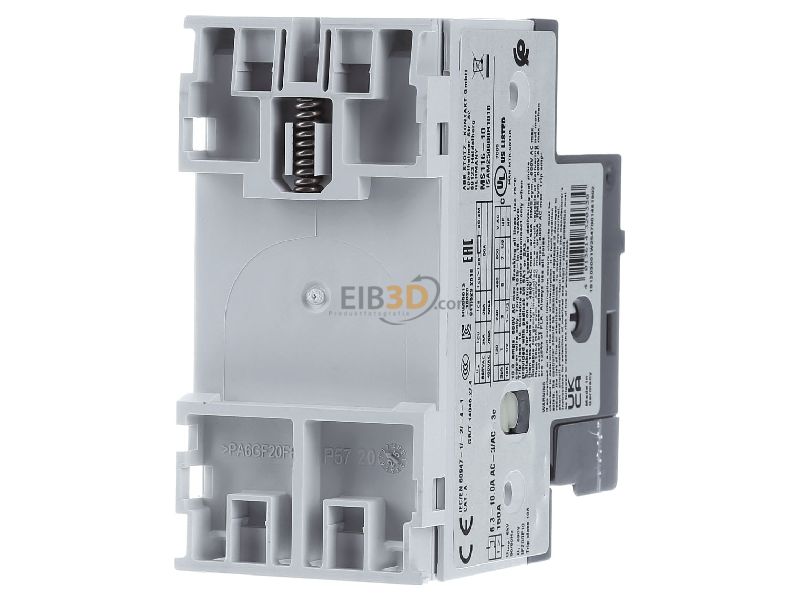

Back view ABB MS116-10-HKF1-11 Motor protection circuit-breaker 10A
Back view

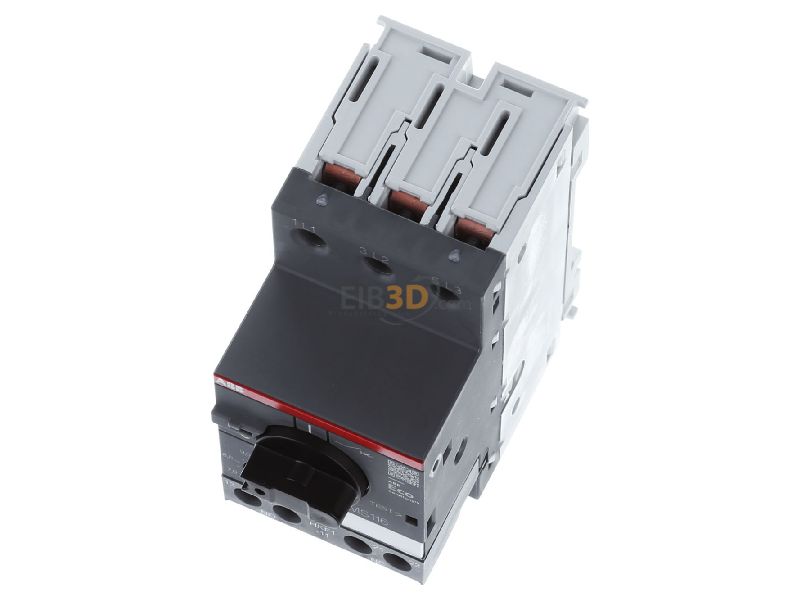

View up front ABB MS116-10-HKF1-11 Motor protection circuit-breaker 10A
View up front

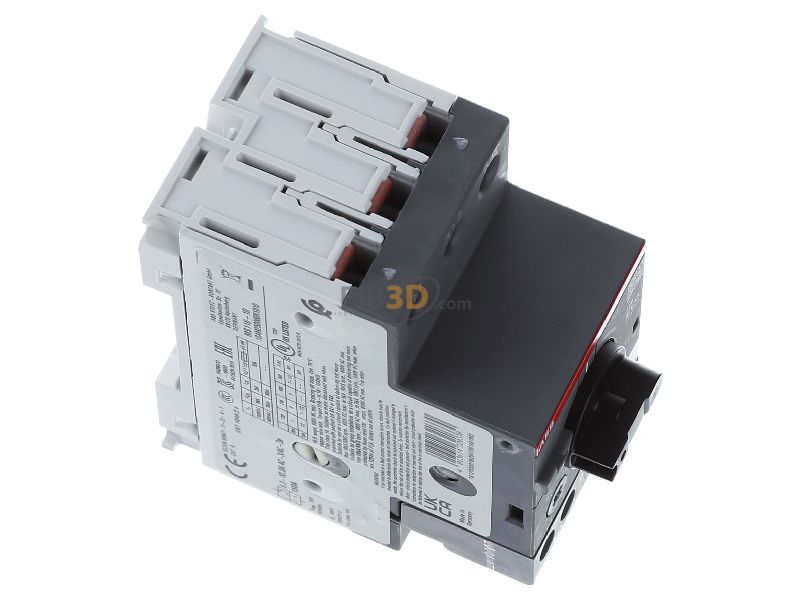

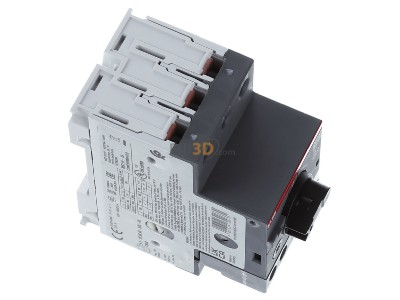

View top left ABB MS116-10-HKF1-11 Motor protection circuit-breaker 10A
View top left

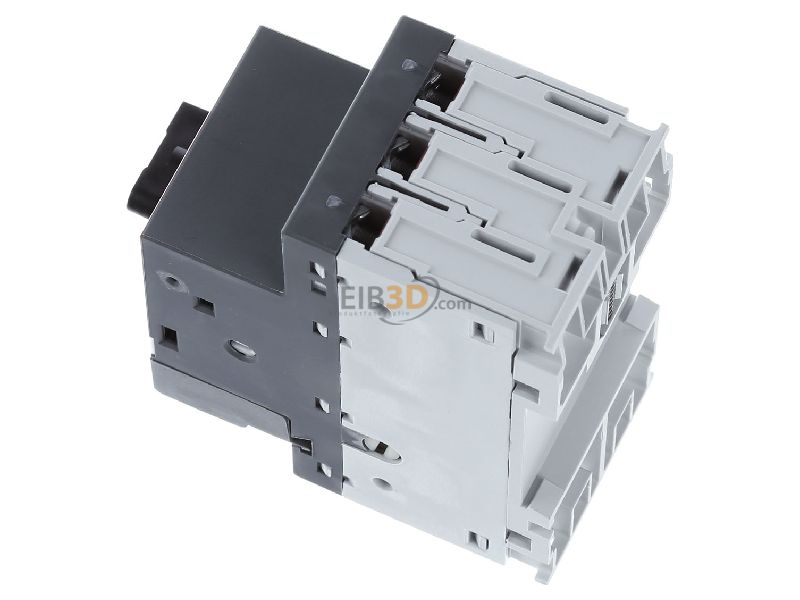

View top right ABB MS116-10-HKF1-11 Motor protection circuit-breaker 10A
View top right

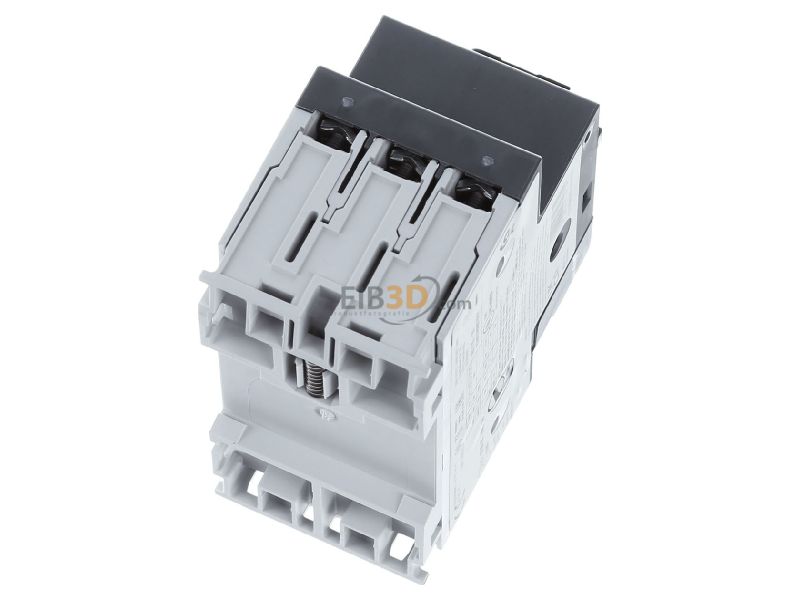

Top rear view ABB MS116-10-HKF1-11 Motor protection circuit-breaker 10A
Top rear view
