Surge protection for power supply DG MOD ACI 275
Source photo:
Dehn
(fig. might be different or similar)

Surge protection for power supply DG MOD ACI 275

EAN/GTIN: 4013364377356
WEEE: DE 11890845
Manufacturer: Dehn
Manufacturer no.: DG MOD ACI 275
Manufact.-SKU: 952024
Customs tariff no.: 85363030
Similar top items: Show now & compare
8.066,05 INR Price incl. VAT (0,00 INR)
plus shipping
Delivery time:
15-18 days [IN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Surge protection for power supply Nominal discharge surge current (8/20) 20kA, Nominal voltage AC 230V, Max. continuous voltage AC 275V, Mounting method On basic element, Construction size 1 modular spacing, Voltage protection level 1,5kV, Signalling at the device Optic, Category type 2

More product images:

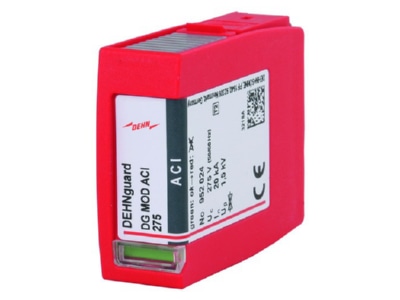

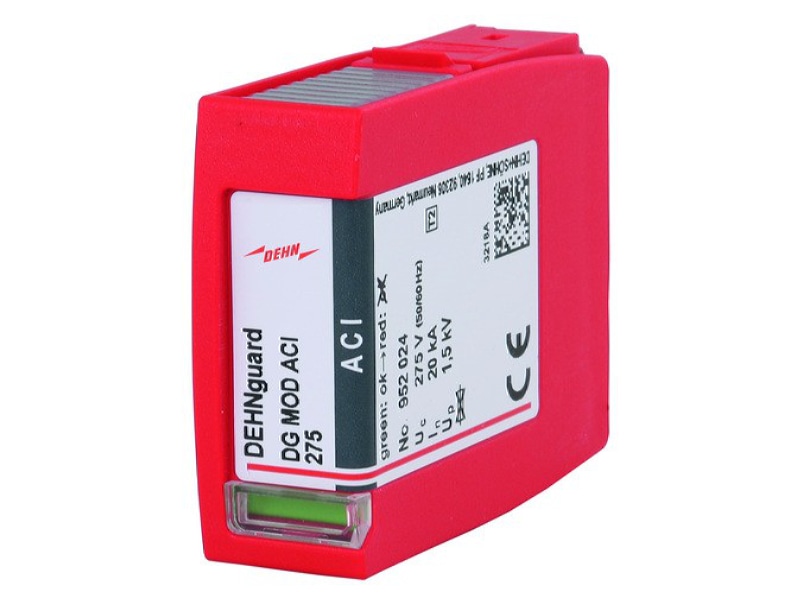

Product image 1 Dehn DG MOD ACI 275 Surge protection for power supply
Product image 1

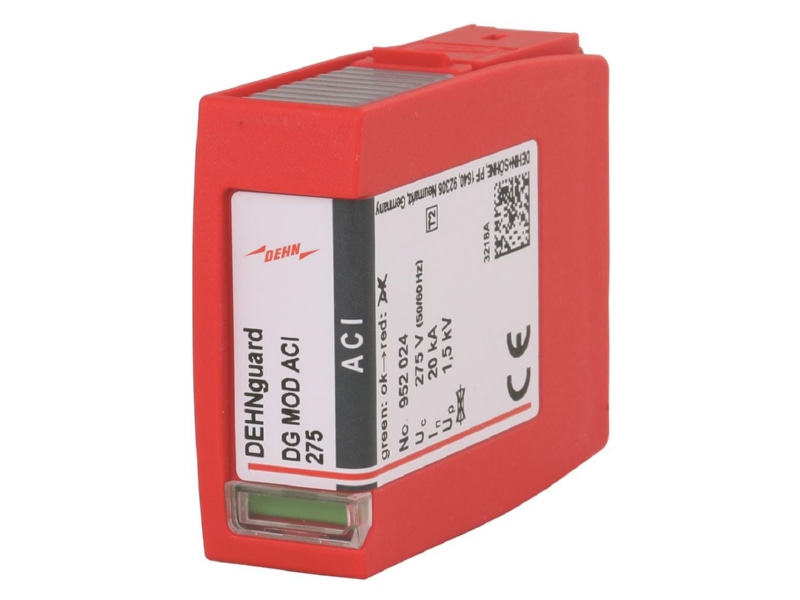

Product image 2 Dehn DG MOD ACI 275 Surge protection for power supply
Product image 2

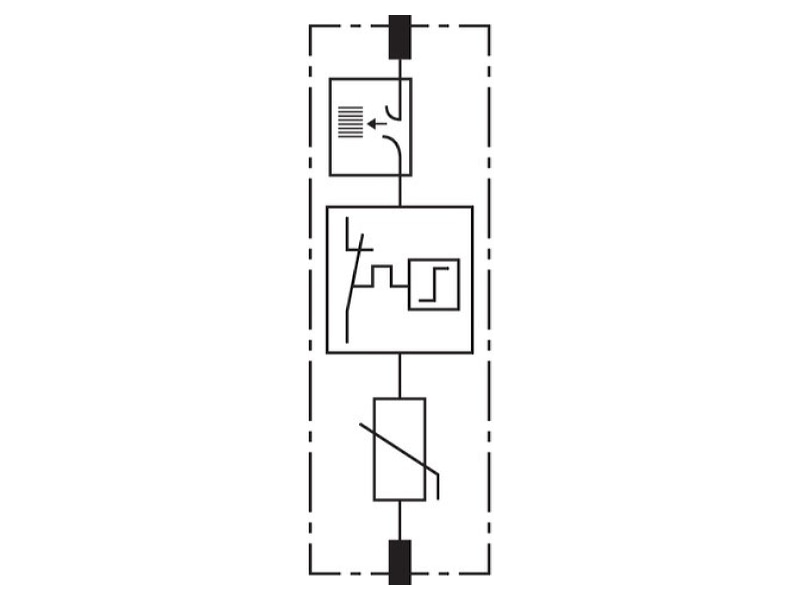

Circuit diagram 1 Dehn DG MOD ACI 275 Surge protection for power supply
Circuit diagram 1
Circuit diagram 2 Dehn DG MOD ACI 275 Surge protection for power supply
Circuit diagram 2

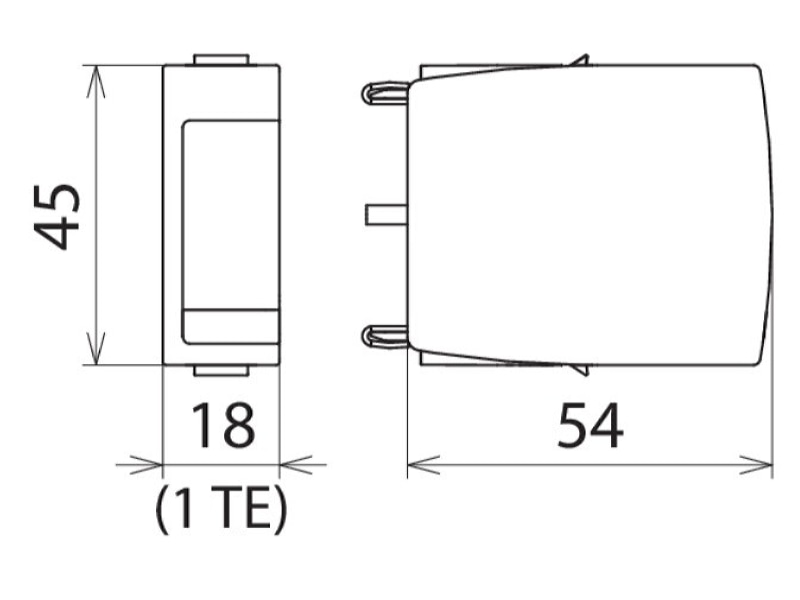

Dimensional drawing 1 Dehn DG MOD ACI 275 Surge protection for power supply
Dimensional drawing 1
Dimensional drawing 2 Dehn DG MOD ACI 275 Surge protection for power supply
Dimensional drawing 2
